Timing Chain Tensioner Installation

  1. Install the timing chain tensioner (2).

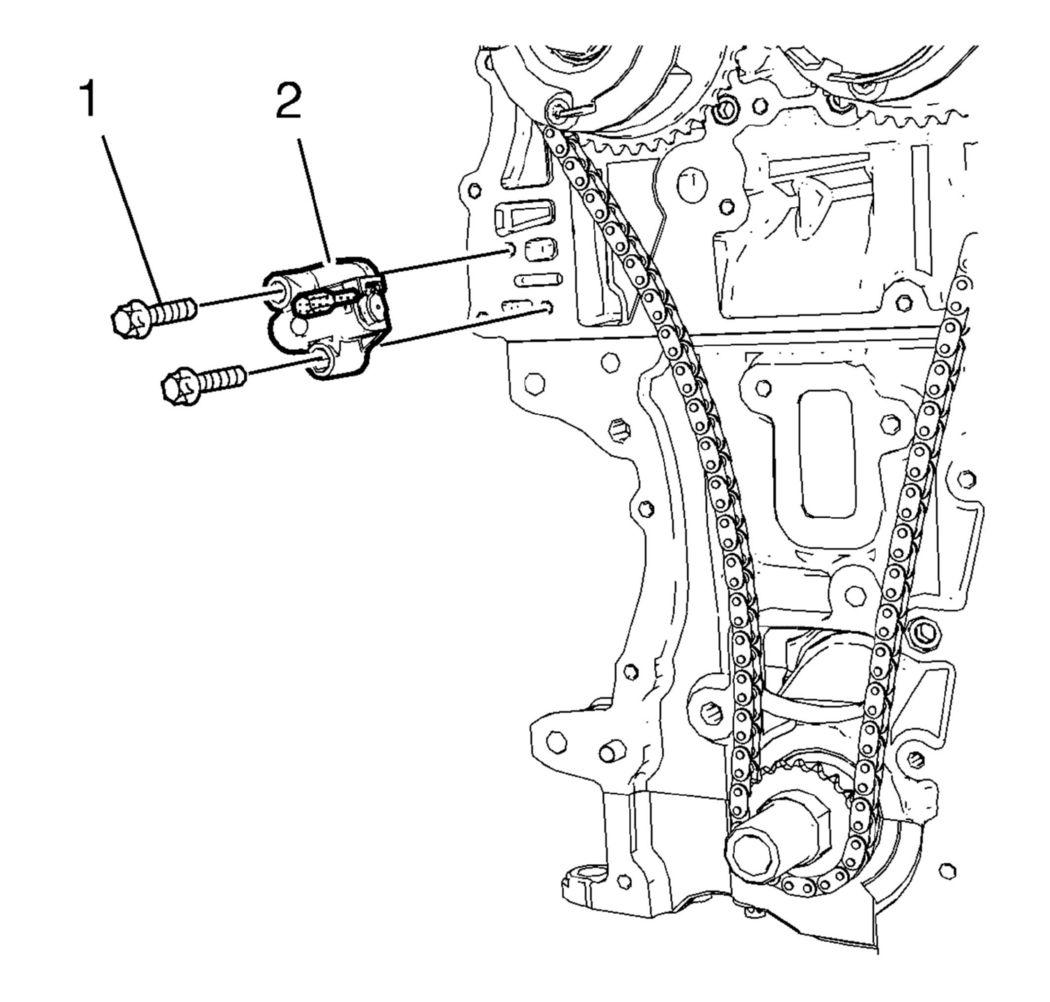

    Fig 1: Timing Chain Tensioner And Bolts
    GM2190684Courtesy of GENERAL MOTORS COMPANY
  2. Install the 2 timing chain tensioner bolts (1) and tighten to 8 N.m (71 lb in).
    CAUTION: Refer to Fastener Caution .
