Throttle Body Installation

  1. Install the throttle body (2) and a NEW throttle body seal ring (1).

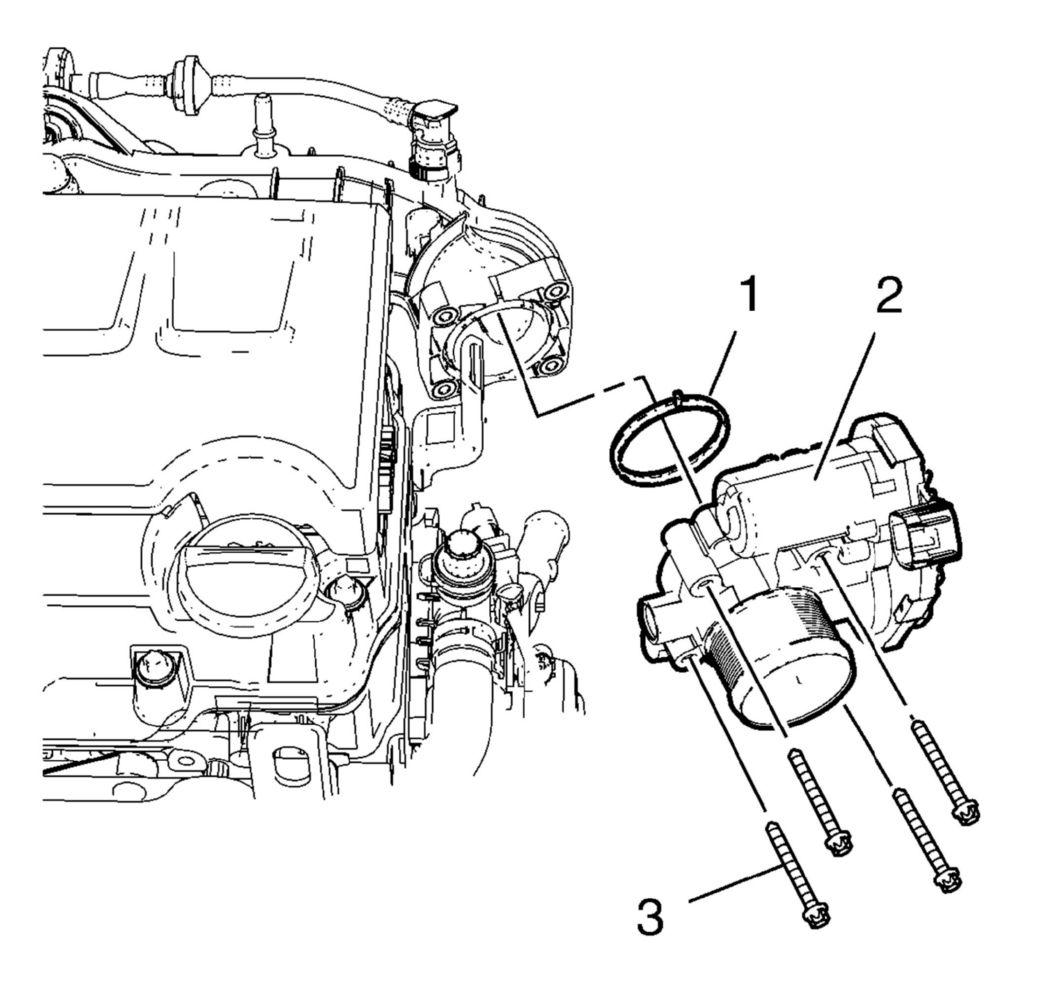

    Fig 1: Throttle Body And Bolts
    GM2191887Courtesy of GENERAL MOTORS COMPANY
  2. Install the 4 throttle body bolts (3) and tighten to 8 N.m (71 lb in).
    CAUTION: Refer to Fastener Caution .
