Starter Installation

  1. Install the starter (4).

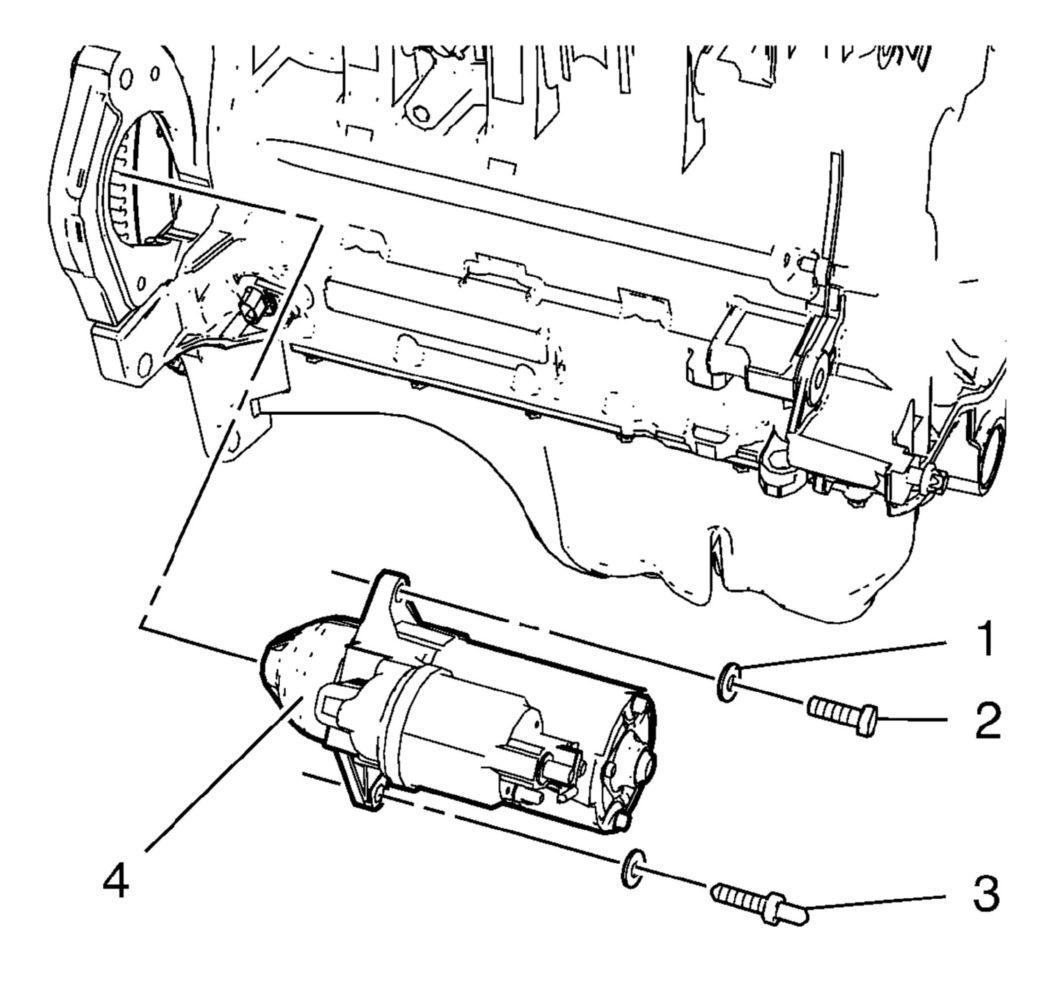

    Fig 1: Starter, Bolt, Stud And Washer
    GM2190618Courtesy of GENERAL MOTORS COMPANY
  2. Install the lower starter bolt stud (3) and if equipped the washer.
  3. Install the upper starter bolt (2) and if equipped the washer (1).
  4. Tighten the starter bolt and starter bolt stud to 25 N.m (18 lb ft).
    CAUTION: Refer to Fastener Caution .
