Positive Crankcase Ventilation Pipe Installation

  1. Install the positive crankcase ventilation pipe assembly (1) to the camshaft cover retainer clips.

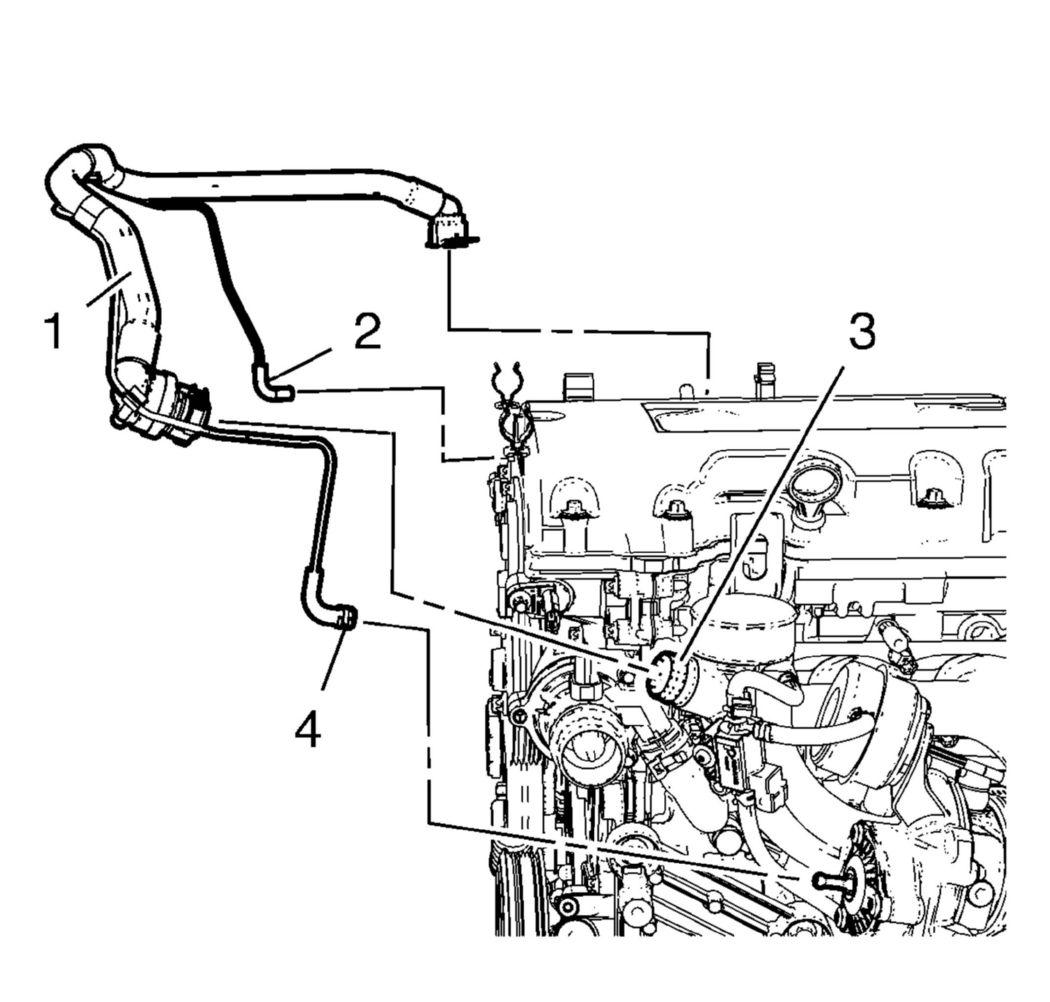

    Fig 1: Turbocharger, Positive Crankcase Ventilation Pipe Assembly And Charger Air Bypass Valve Pipe
    GM2190426Courtesy of GENERAL MOTORS COMPANY
  2. Connect the positive crankcase ventilation pipe to turbocharger (3).
  3. Install the charger air bypass valve pipe (2) to turbo charger waste regulator solenoid valve.
  4. Install the charger air bypass valve pipe to turbocharger.
  5. Fasten the charger air bypass valve pipe clamp (4).
  6. Install the positive crankcase ventilation pipe to the intake manifold and fix with retainer clamp (1).

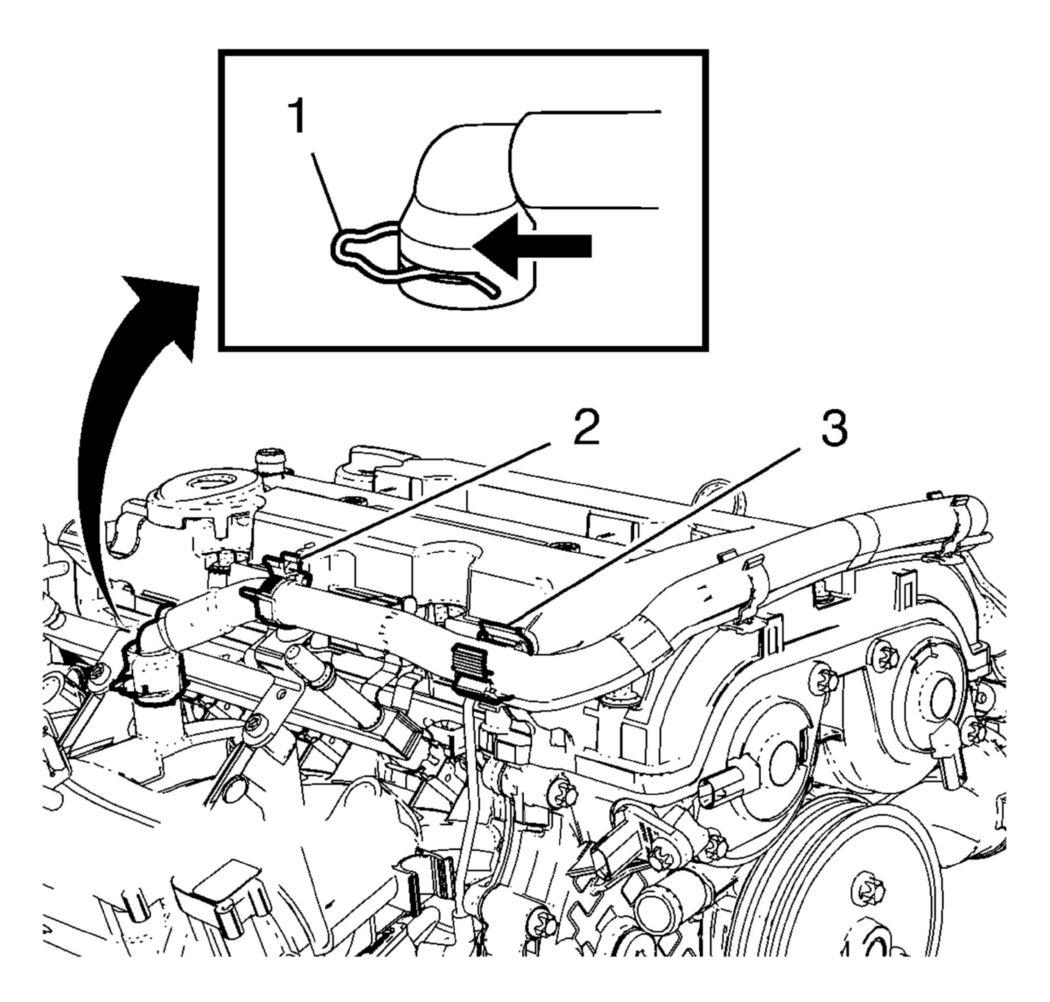

    Fig 2: Positive Crankcase Ventilation Pipe Retainer Clips And Retainer Clamp
    GM2190425Courtesy of GENERAL MOTORS COMPANY
  7. Clip in the positive crankcase ventilation pipe to the 2 retainer clips (2) and (3).
