Oil Pan Removal

  1. Remove the 16 oil pan bolts (1).
    Fig 1: Oil Pan Bolts
    GM2190370Courtesy of GENERAL MOTORS COMPANY

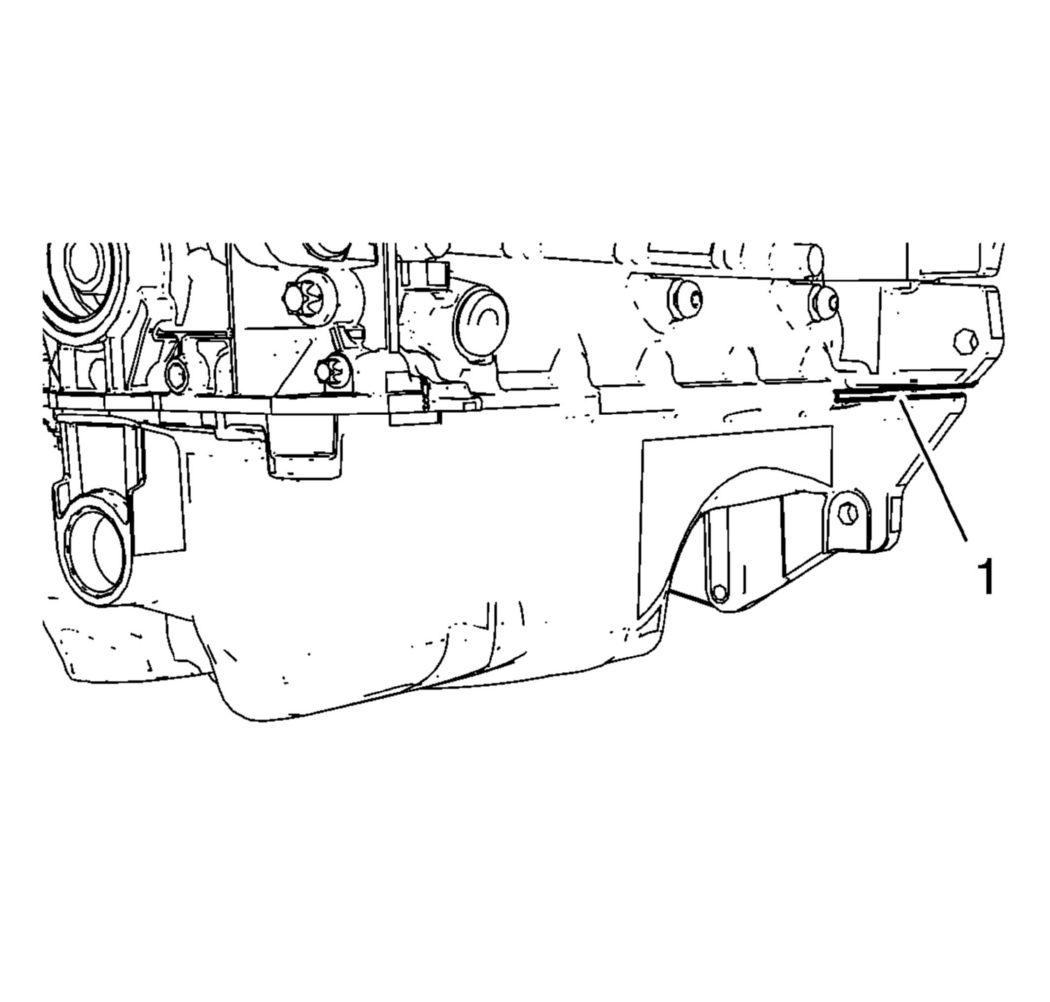

  2. Place a suitable prying tool to the area shown (1) and carefully pry the oil pan loose.
    Fig 2: Oil Pan Prying Area
    GM2190659Courtesy of GENERAL MOTORS COMPANY
    CAUTION: Pry the oil pan carefully in order to prevent damage to the transaxle case or the oil pan sealing surfaces.

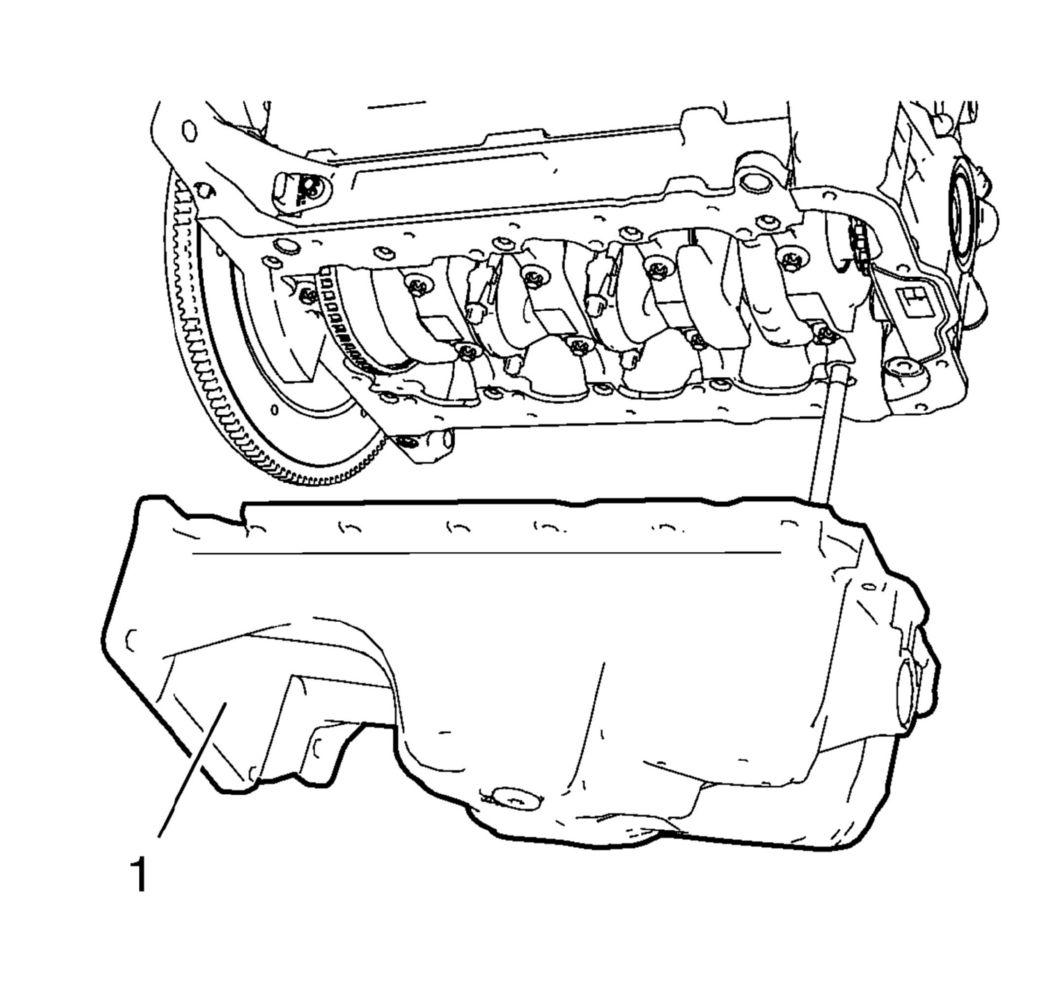

  3. Remove the oil pan (1).
    Fig 3: Oil Pan
    GM2190661Courtesy of GENERAL MOTORS COMPANY
