Oil Pan Installation

Special Tools

EN-49980 Guidance Pins

For equivalent regional tools, refer to Special Tools .

Clean the sealing surfaces from old sealing material, dirt, oil and grease.
Apply sealing compound to the oil pan. Refer to Adhesives, Fluids, Lubricants and Sealers .
NOTE: The sealing bead should be applied close to the inner edge of the oil pan. Take care that the oil suction gallery (4) will not get contaminated with sealing compound or dirt. The thickness of the sealing bead (3) should be 2 mm (0.0787 in).

Fig 1: Engine Front Cover, Oil Suction Gallery And Screw Bore
Courtesy of GENERAL MOTORS COMPANY
Apply sealing compound to the groove of the engine front cover (1). Refer to Adhesives, Fluids, Lubricants and Sealers .
Apply sealing compound around the screw bore (2) of the crankshaft bearing cap tie plate.

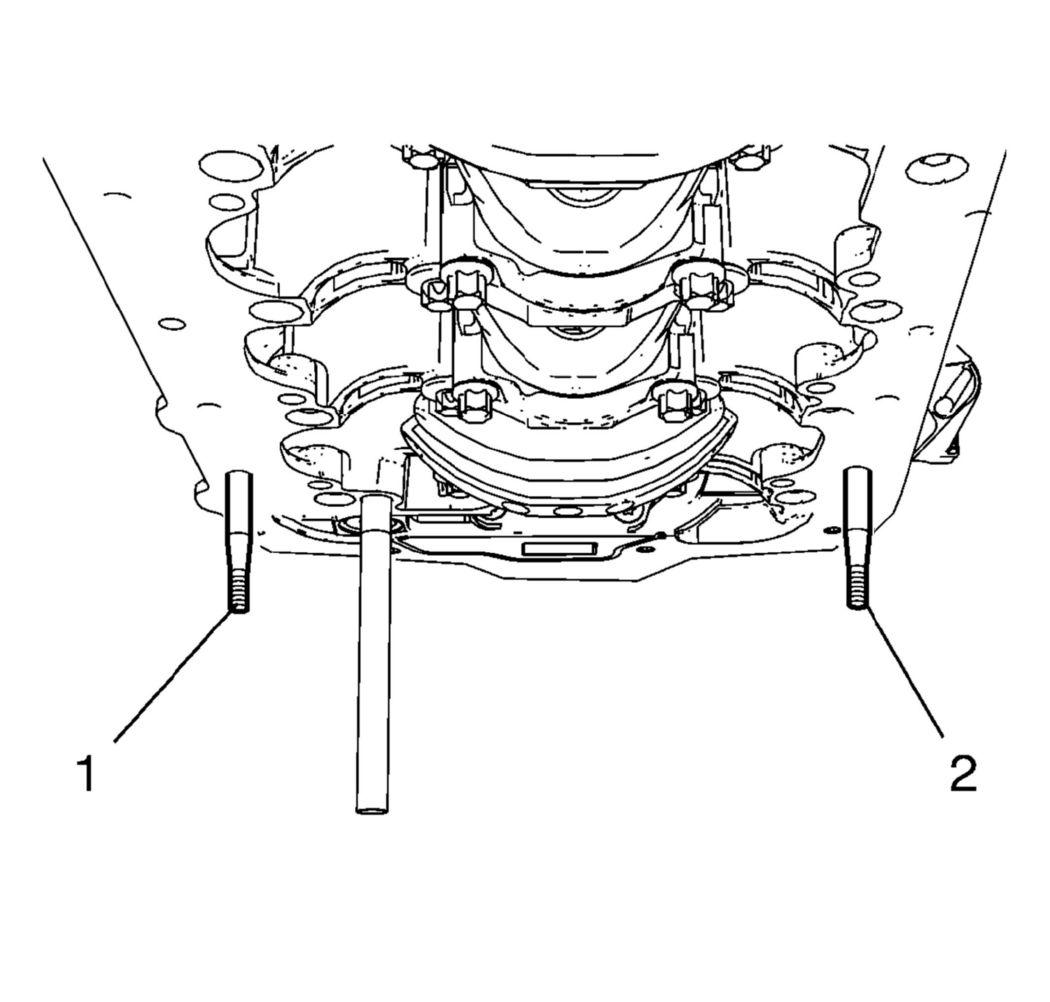

Install the 2 EN-49980 pins (1) and (2) to the shown oil pan screw bores.

Fig 2: Engine Oil Pan Pins
Courtesy of GENERAL MOTORS COMPANY

NOTE: The complete installation procedure of the oil pan should not take longer than 10 minutes.

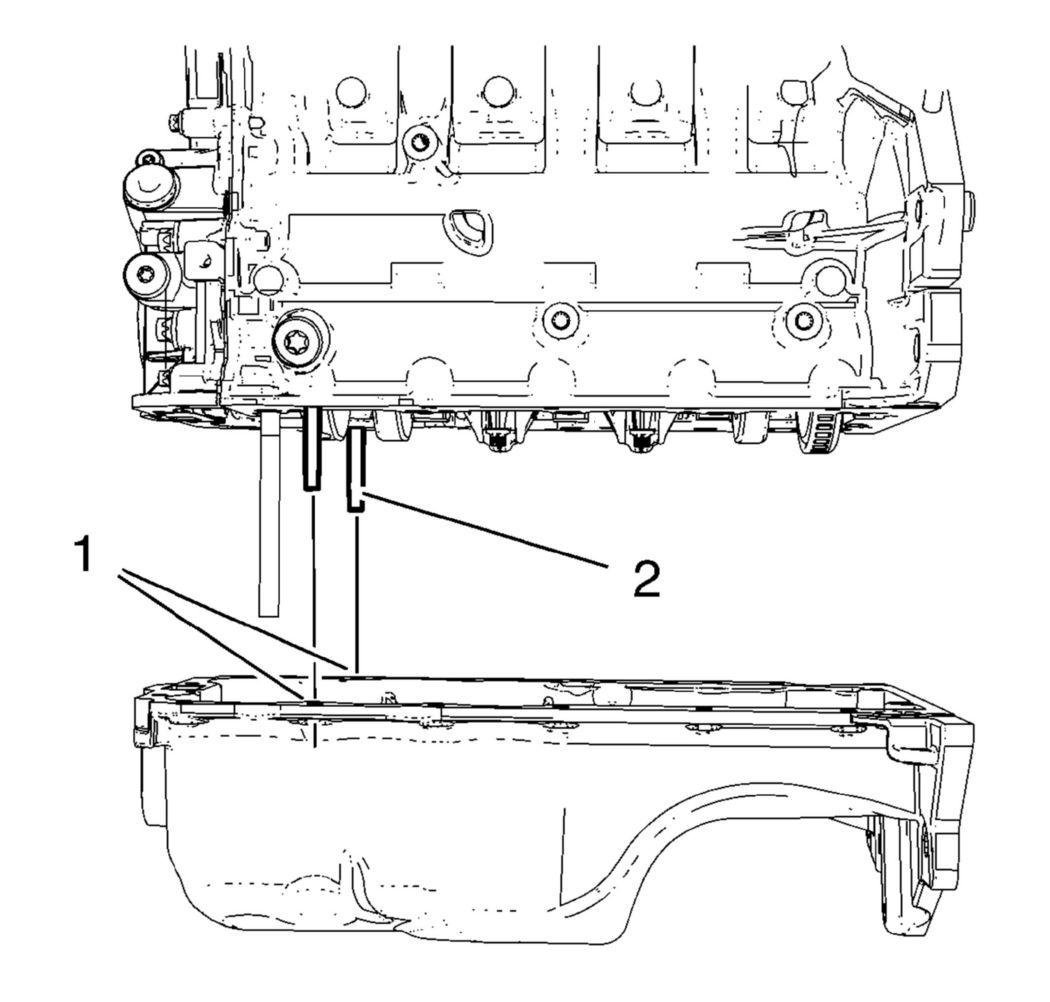

Carefully install the oil pan. Guide the oil pan with EN-49980 pins (2) and the equivalent screw bores (1).

Fig 3: Engine Oil Pan Pins And Screw Bores
Courtesy of GENERAL MOTORS COMPANY

CAUTION: Use care when installing the oil pan to prevent disruption of the sealing bead. The sealing bead should remain consistent until the oil pan is mated with the engine. An inconsistent sealing bead can cause an insufficient seal and result in engine damage.
Hold the oil pan with 4 oil pan bolts.
Remove EN-49980 pins.
Install the remaining 12 oil pan bolts and hand tighten.

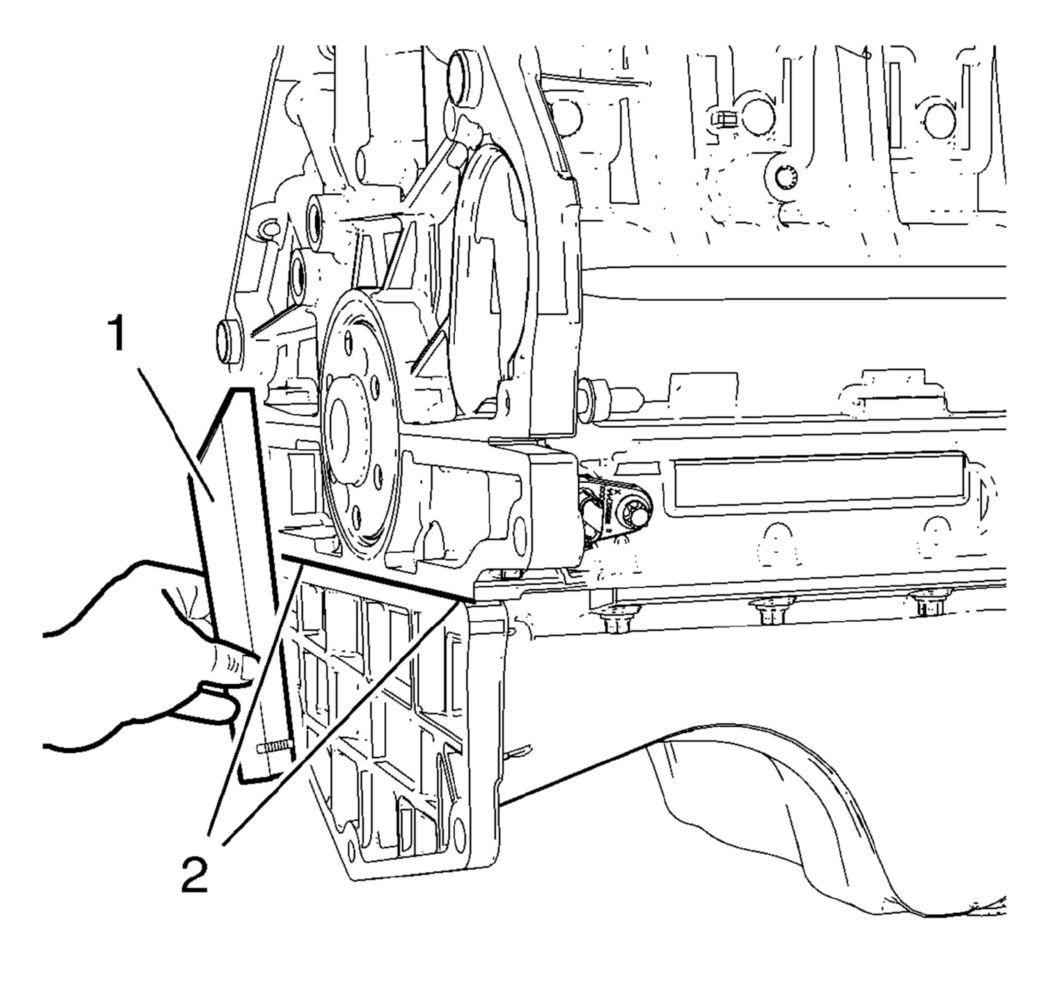

Lay a straight edge (1) against the oil pan and engine block. Using a rubber mallet, adjust the transition in area (2) until there is no clearance between oil pan and the straight edge.

Fig 4: Straight Edge Tool
Courtesy of GENERAL MOTORS COMPANY
Tighten the 16 oil pan bolts to 10 N.m (89 lb in).
CAUTION: Refer to Fastener Caution .
