Intake Manifold Installation

  1. Clean the sealing surfaces.

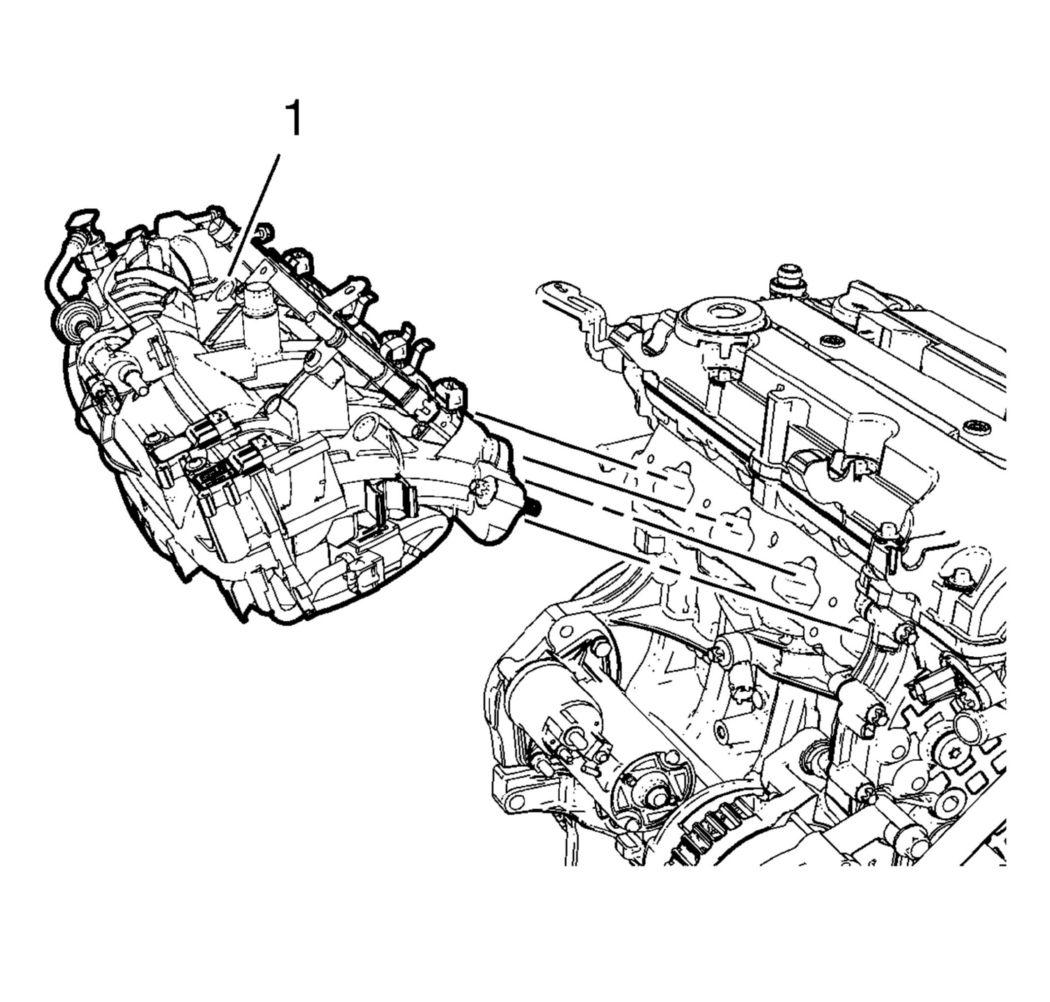

  2. Install the intake manifold (1) along with a NEW intake manifold gasket.
    Fig 1: Intake Manifold
    GM2191843Courtesy of GENERAL MOTORS COMPANY

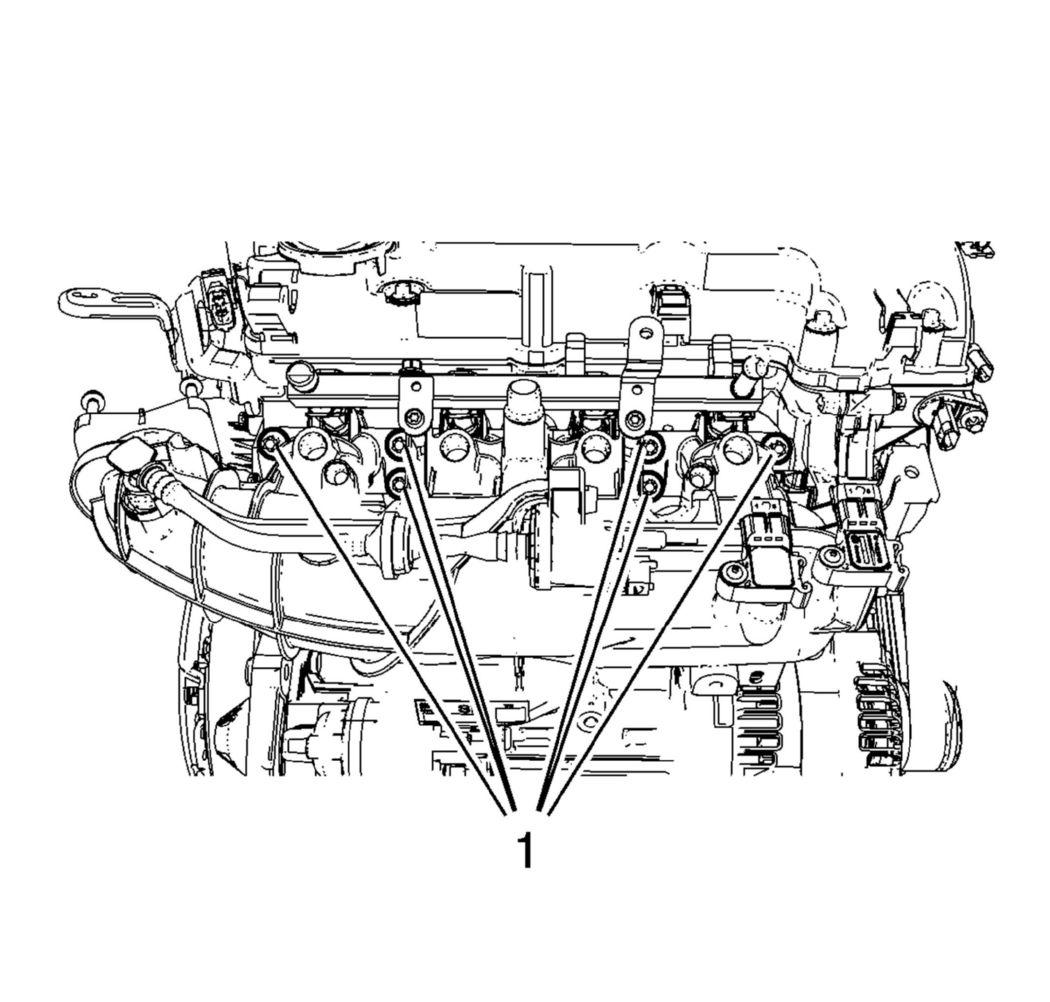

  3. Install the 6 intake manifold bolts (1) and tighten to 20 N.m (15 lb ft).
    Fig 2: Intake Manifold Bolts
    GM2191842Courtesy of GENERAL MOTORS COMPANY
    CAUTION: Refer to Fastener Caution .
