Intake Manifold Disassemble

  1. Remove the fuel injection rail ground cable nut (1).

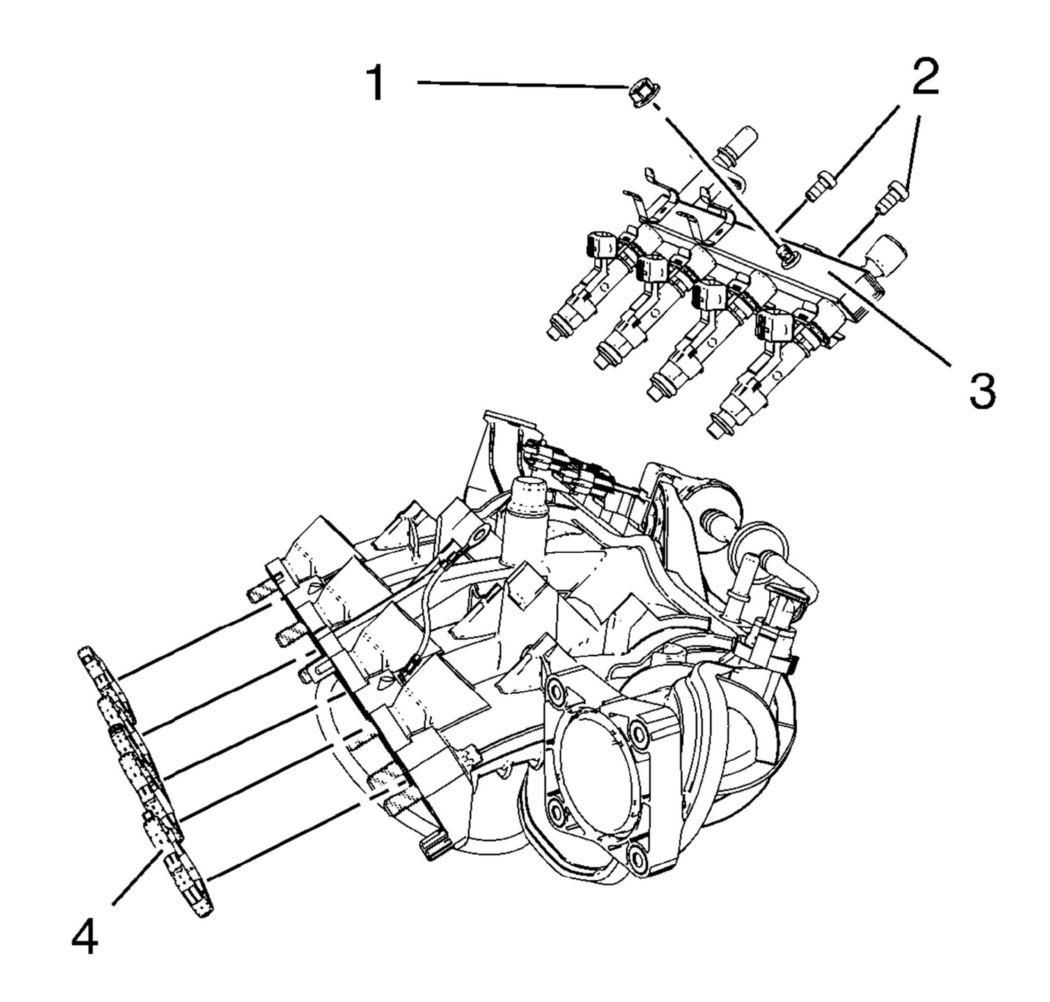

    Fig 1: Fuel Injection Fuel Rail Assembly And Intake Manifold Gasket
    GM2191856Courtesy of GENERAL MOTORS COMPANY
  2. Remove the 2 fuel injection rail bolts (2).
  3. Remove the fuel injection fuel rail assembly (3).
  4. Remove the intake manifold gasket (4).
  5. Remove the 2 manifold absolute pressure sensor bolts (1).

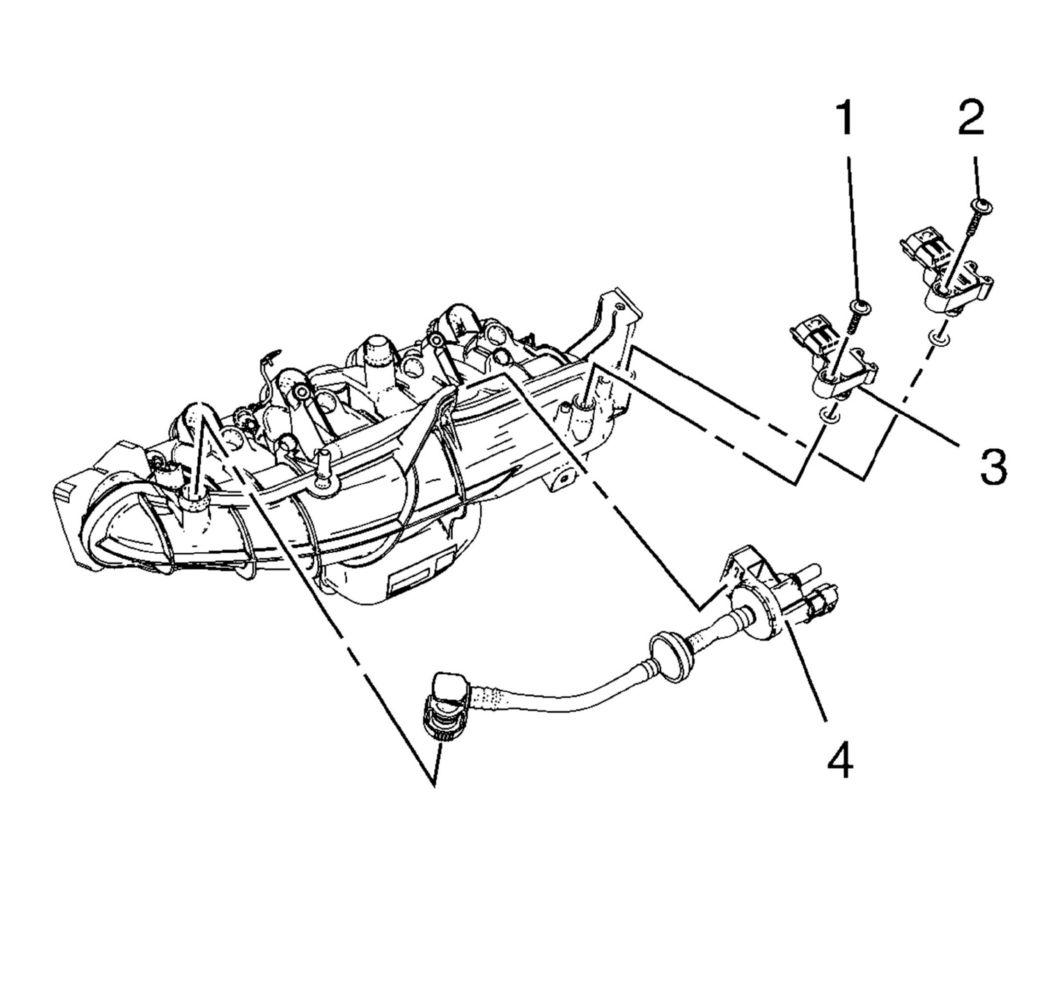

    Fig 2: Evaporative Emission Canister Purge Solenoid Valve And Manifold Absolute Pressure Sensors
    GM2191857Courtesy of GENERAL MOTORS COMPANY
  6. Remove the 2 manifold absolute pressure sensors (2).
  7. Remove the evaporative emission canister purge solenoid valve (3).
