Ignition Coil Installation

Special Tools

EN-6009  Remover and Installer Ignition Module

For equivalent regional tools, refer to Special Tools .

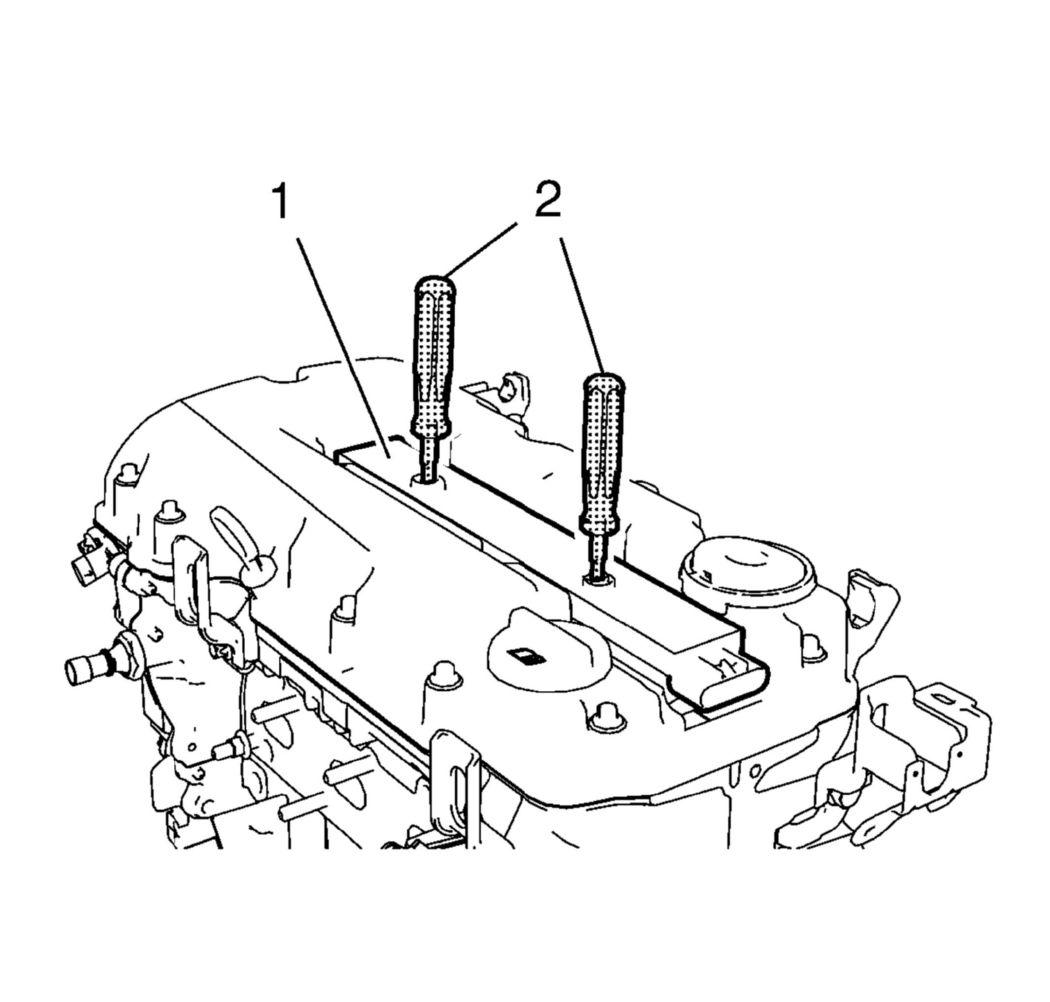

1. Install the ignition coil (1) and remove EN-6009  remover and installer (2).
   Fig 1: Ignition Coil And Remover/Installer

   Courtesy of GENERAL MOTORS COMPANY

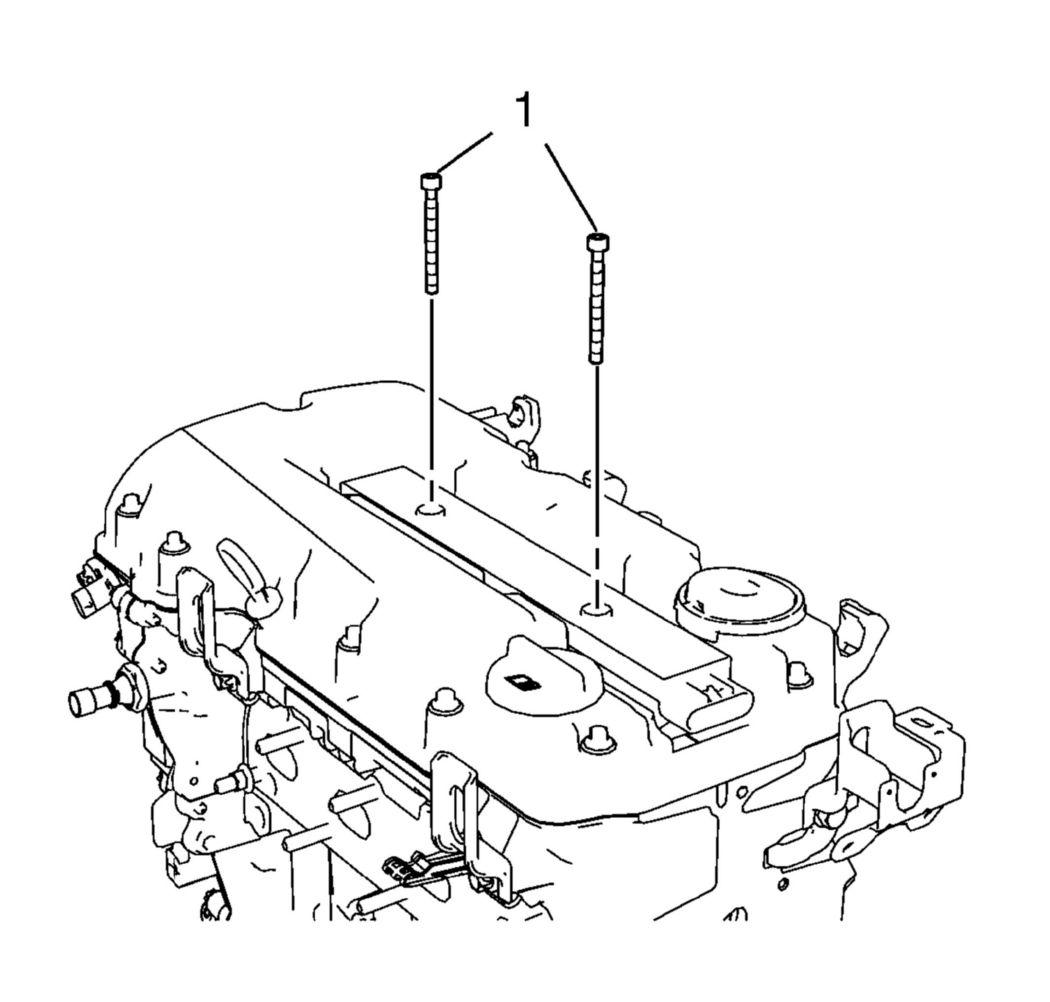

2. Install the 2 ignition coil bolts (1) and tighten to 8 N.m (71 lb in).
   Fig 2: Ignition Coil Bolts

   Courtesy of GENERAL MOTORS COMPANY
   CAUTION: Refer to Fastener Caution .
