Generator Installation

  1. Install the generator (1).

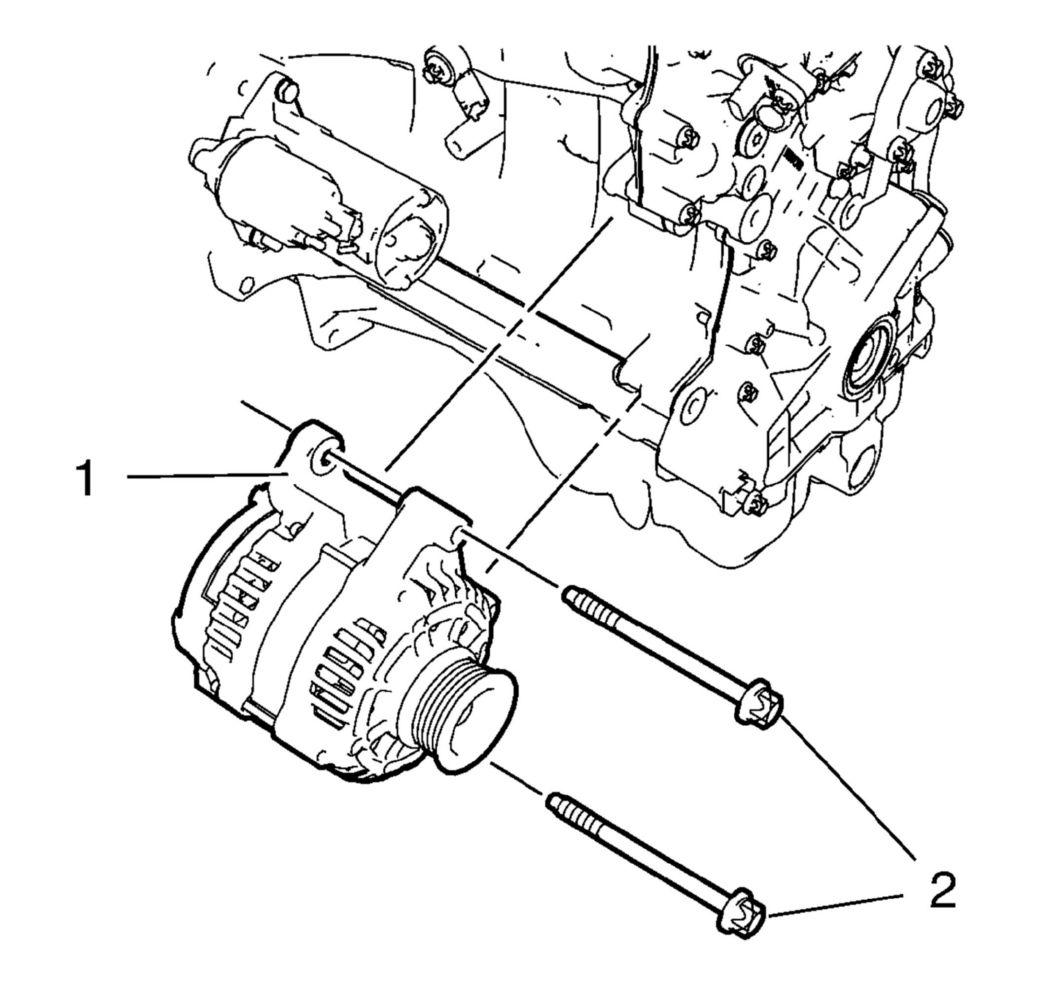

    Fig 1: Generator And Bolts
    GM2190617Courtesy of GENERAL MOTORS COMPANY
  2. Install the 2 generator bolts (2) and tighten to 35 N.m (26 lb ft).
    CAUTION: Refer to Fastener Caution .
