Exhaust Manifold Heat Shield Installation

  1. Install the exhaust manifold heat shield (2).

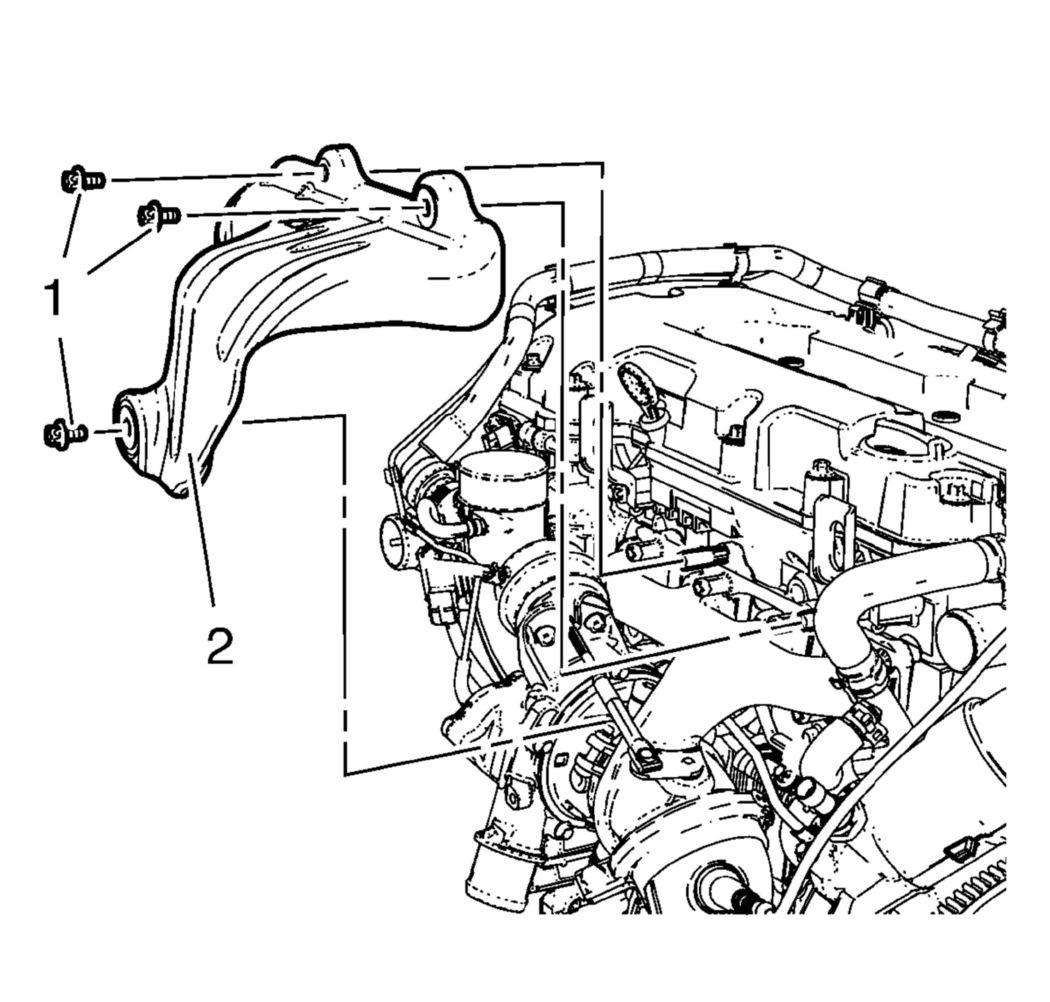

    Fig 1: Exhaust Manifold Heat Shield
    GM2190424Courtesy of GENERAL MOTORS COMPANY
  2. Install the 3 exhaust manifold heat shield bolts (1) and the washers and tighten to 8 N.m (71 lb in).
    CAUTION: Refer to Fastener Caution .
