Engine Support Fixture

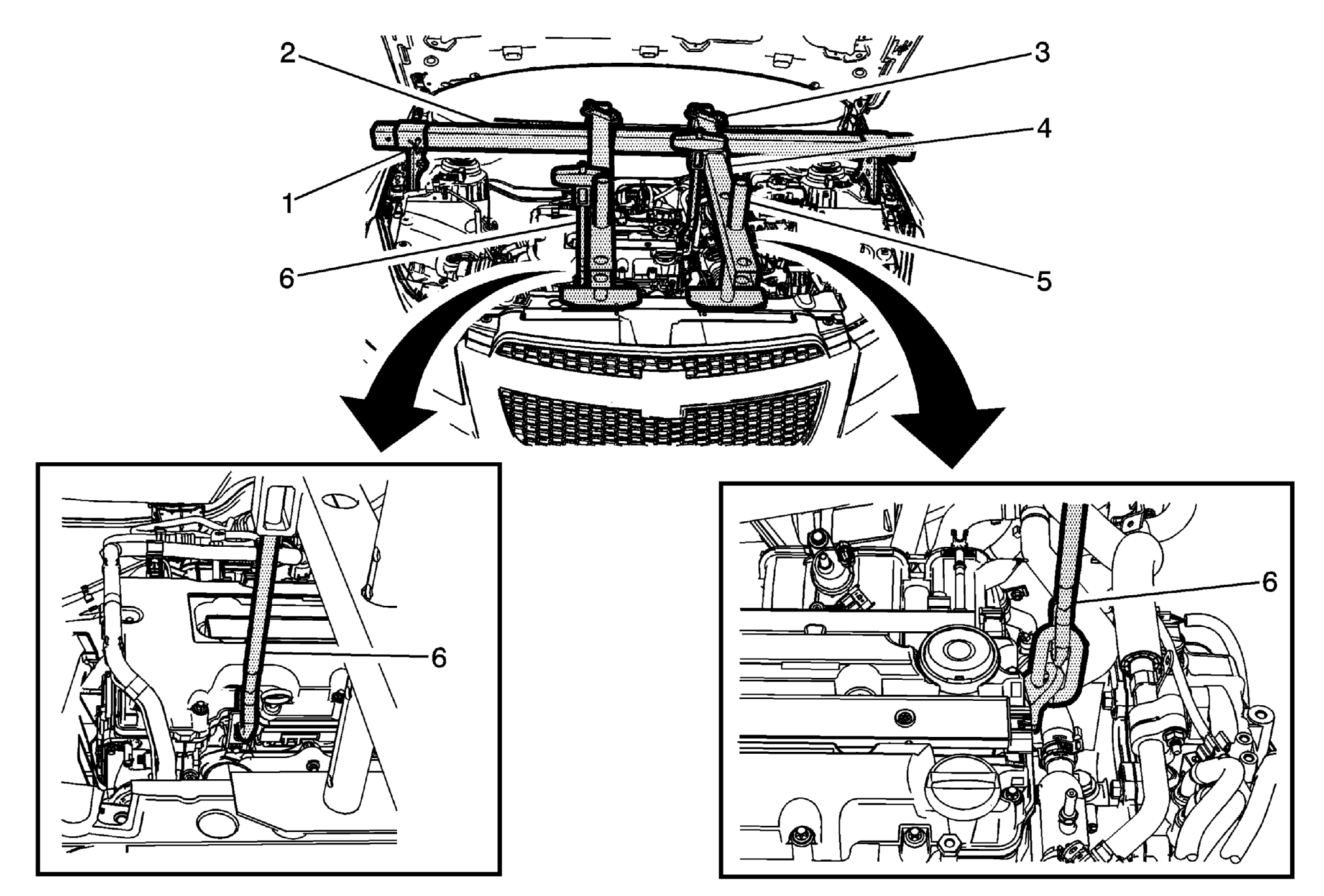

Fig 1: Locating Engine Support Fixture Components

Courtesy of GENERAL MOTORS COMPANY

Callous	Component Name
Preliminary Procedure Remove the front fender shipping cover. Refer to Front Fender Shipping Cover Replacement . Special Tools J-28467-1A Cross Bracket J-28467-2A Radiator Tube Shelf Assembly J-28467-5A Strut Tower Support Assembly J-28467-8A Hook Assembly J-28467-518 Main Support Beam J-36857 Engine Lift Bracket J-43405 Engine Support Fixture Adapter For equivalent regional tools, refer to Special Tools .
1	Engine Support Fixture Adapter Leg (Qty: 2) Procedure Install the bracket to fender frame. Do not install on top of fender lip.
2	Main Support Beam
3	Cross Bracket (Qty: 2)
4	Strut Tower Support Assembly (Qty: 2) Procedure Adjust the length of the strut tower support assembly.
5	Radiator Tube Shelf Assembly (Qty: 2)
6	Engine Lift Bracket Procedure Use a grade 10.9 bolt to install the engine lift bracket. TIP: If the engine is not equipped with engine lift bracket, install J-36857 bracket in place.
