Engine Oil Heater Installation

  1. Install the engine oil heater (2).

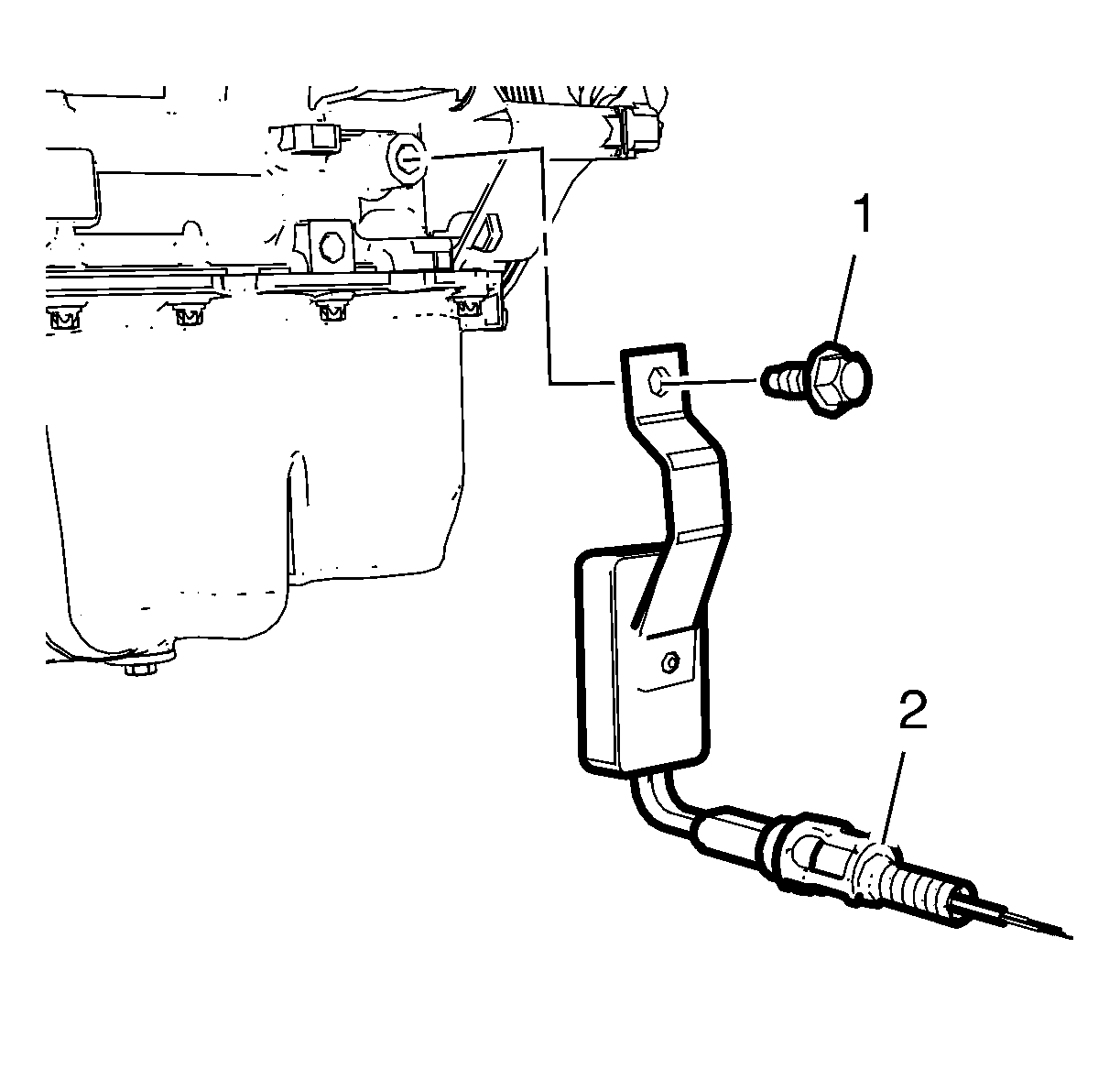

    Fig 1: Engine Oil Heater
    GM2372985Courtesy of GENERAL MOTORS COMPANY
  2. Install the engine oil heater bolt (1) and tighten to 40 N.m (30 lb ft).
    CAUTION: Refer to Fastener Caution .
