Engine Oil Cooler Installation

  1. Install the engine oil cooler assembly (6) along with 2 NEW sealings (8) and (9).

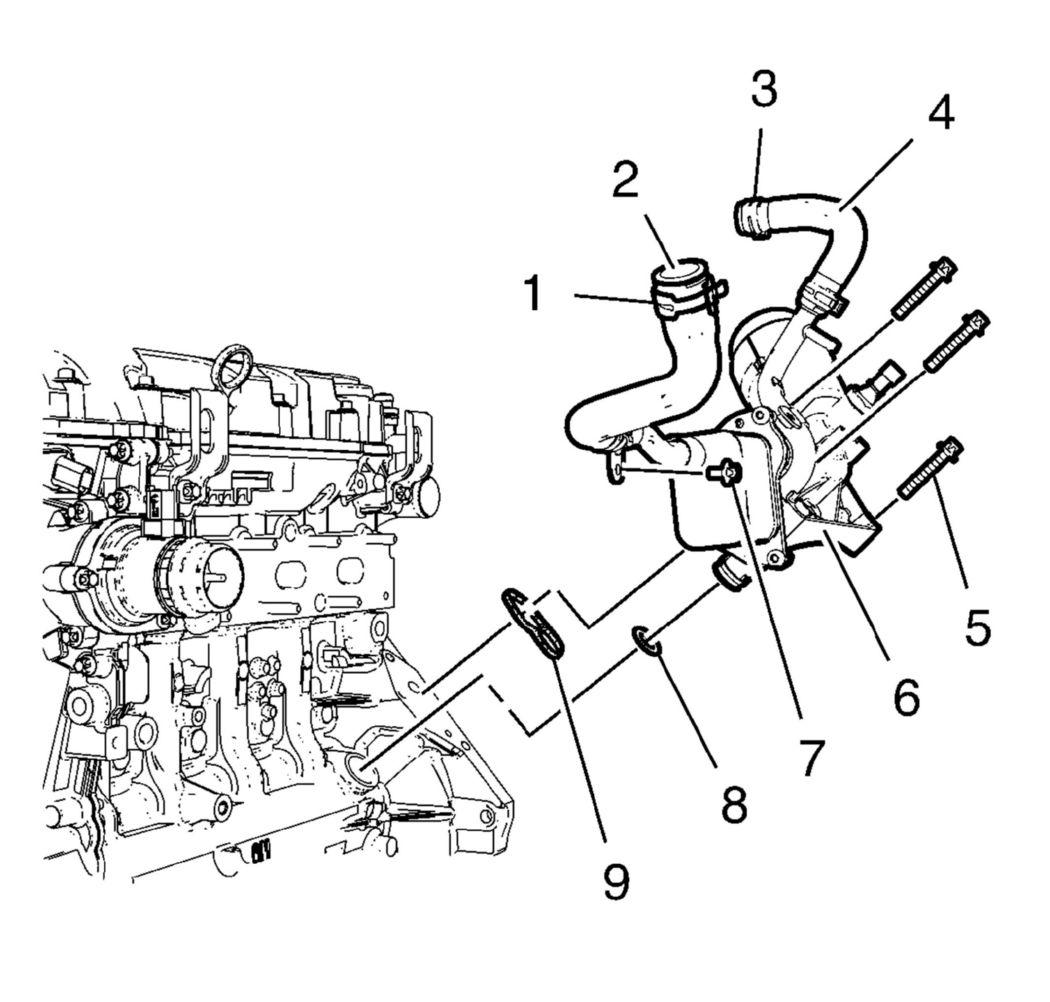

    Fig 1: Locating Engine Oil Cooler Components
    GM2191862Courtesy of GENERAL MOTORS COMPANY
    NOTE: Lubricate the oil cooler seal (8) with clean engine oil.
  2. Install the 3 oil cooler bolts (5) and tighten to 10 N.m (89 lb in).
  3. Install the oil cooler coolant outlet pipe bolt (7) and tighten to 10 N.m (89 lb in).
  4. Install the oil cooler coolant outlet hose (2) to the engine coolant thermostat housing.
  5. Install the oil cooler coolant outlet hose clamp (1).
  6. Install the oil cooler coolant inlet hose (4) to the water outlet.
  7. Install the oil cooler coolant inlet hose clamp (3).
