Engine Oil Cooler Disassemble

  1. Remove the oil cooler coolant inlet hose clamp (2).

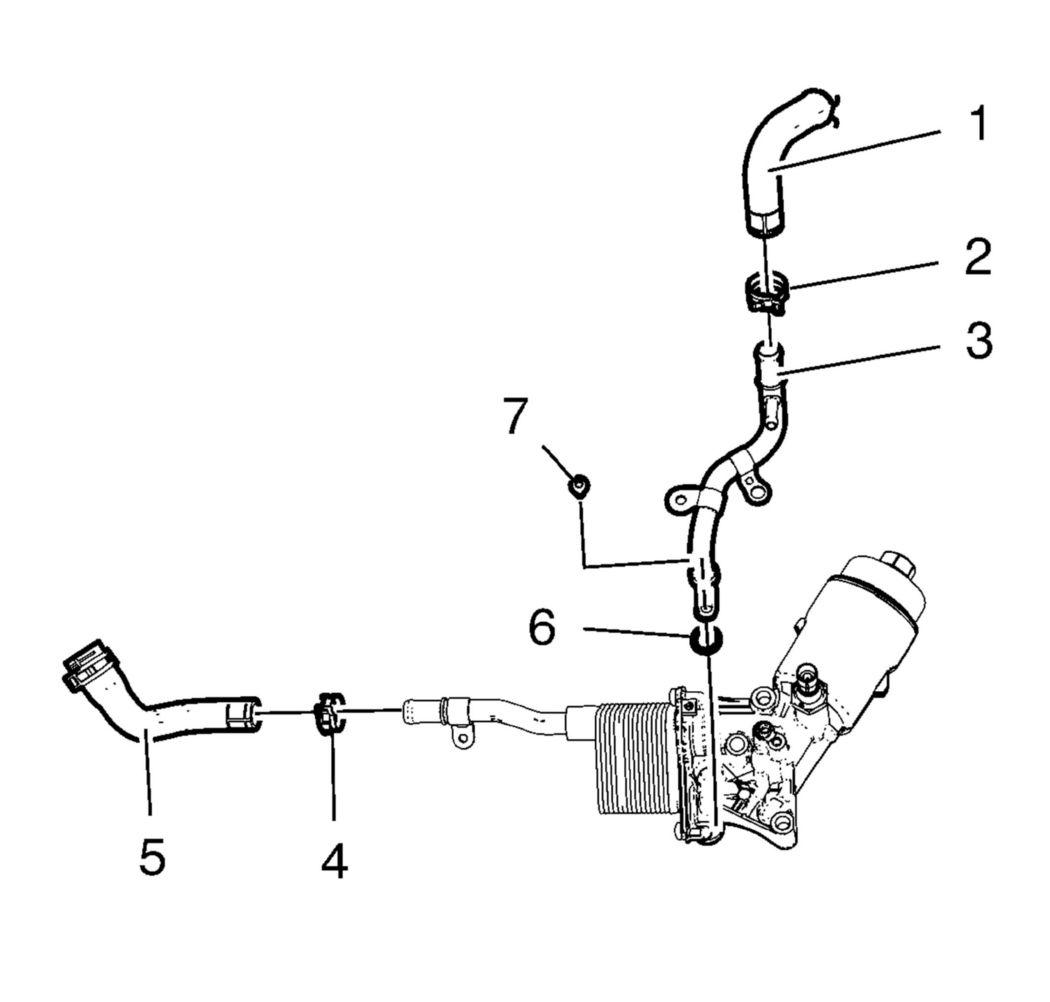

    Fig 1: Locating Engine Oil Cooler Components
    GM2191943Courtesy of GENERAL MOTORS COMPANY
  2. Remove the oil cooler coolant inlet hose (1).
  3. Remove the oil cooler coolant inlet pipe bolt (7)
  4. Remove the oil cooler coolant inlet pipe (3) and the seal ring (6).
  5. Remove the oil cooler coolant outlet hose clamp (4).
  6. Remove the oil cooler coolant outlet hose (5).
  7. Remove the engine oil pressure indicator switch (5) and the seal ring (4).

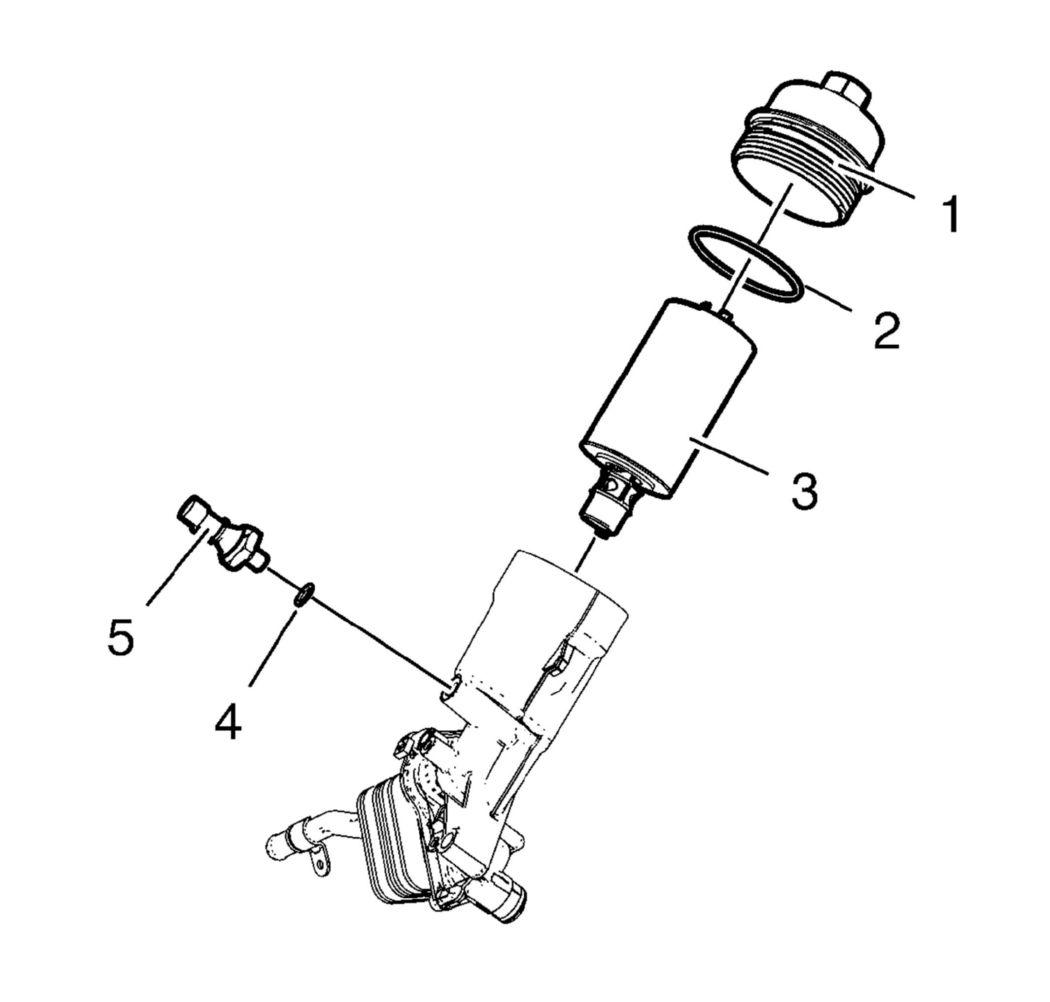

    Fig 2: Engine Oil Pressure Indicator Switch, Oil Filter Cap And Oil Filter Element
    GM2191944Courtesy of GENERAL MOTORS COMPANY
  8. Remove the engine oil filter cap (1) along with the seal ring (2) and the oil filter element (3).
