Engine Mount Bracket Installation

  1. Install the engine mount bracket (2).

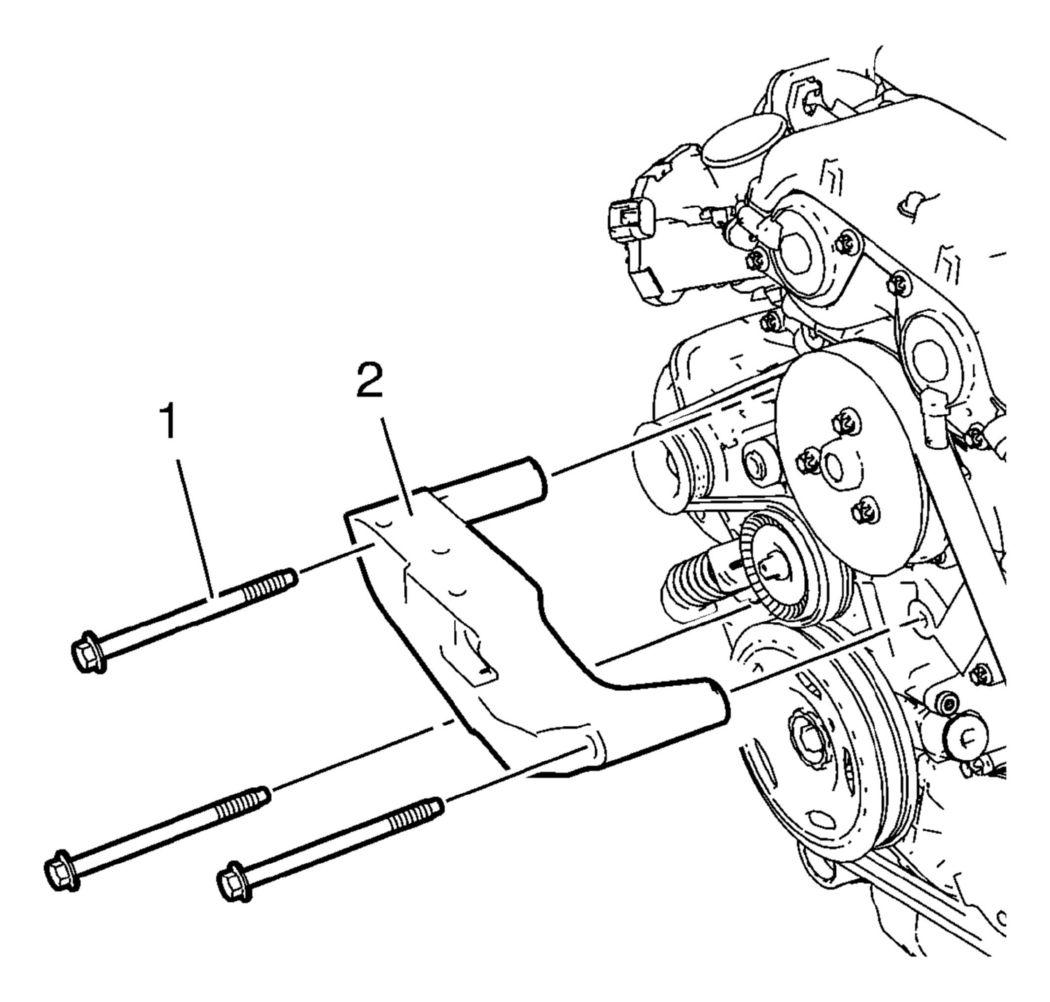

    Fig 1: Engine Mount Bracket And Bolts
    GM2190464Courtesy of GENERAL MOTORS COMPANY
  2. Install the 3 engine mount bracket bolts and tighten to 60 N.m (45 lb ft) + 45-60°.
    CAUTION: Refer to Fastener Caution .
