Engine Front Cover and Oil Pump Installation: Notes

Special Tools

• EN-952  Fixing Pin
• EN-953-A  Fixing Tool
• EN-49977-100  Transmitter Disc Fixation
• EN-49977-200  Fixing Tool

For equivalent regional tools, refer to Special Tools .

1. Install the engine front cover (3).

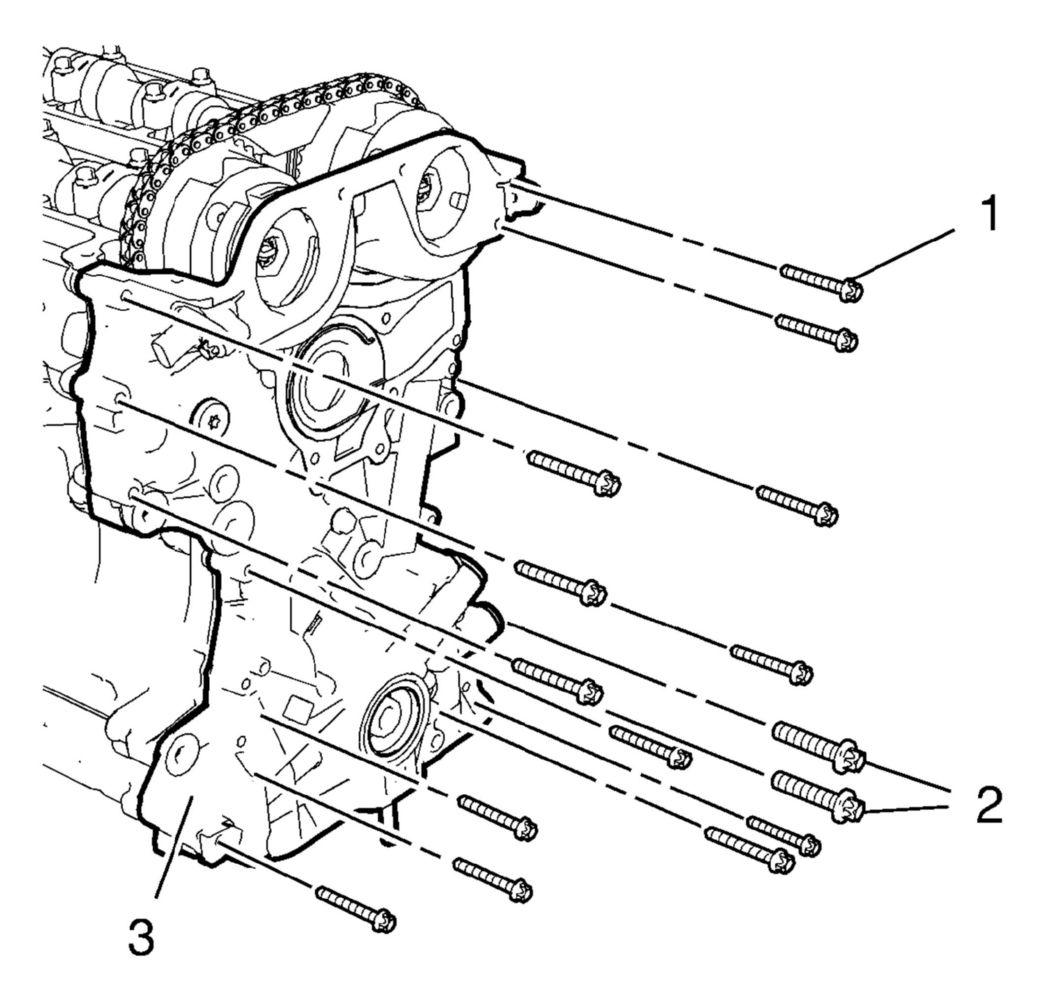

   Fig 1: M6, M10 Front Cover Bolts And Engine Front Cover

   Courtesy of GENERAL MOTORS COMPANY
   NOTE: Mind the guide sleeves when installing engine front cover.
2. Install the 13 engine front cover bolts M6 (1).
3. Install the 2 engine front cover bolts M10 (2).
4. Tighten the 13 engine front cover bolts M6 to 8 N.m (71 lb in).
   CAUTION: Refer to Fastener Caution .
5. Tighten the 2 engine front cover bolts M10 to 35 N.m (26 lb ft).
