Engine Coolant Thermostat Housing Installation

  1. Clean the sealing surfaces.
  2. Install the engine coolant thermostat housing (2) and a NEW engine coolant thermostat housing seal ring (3).

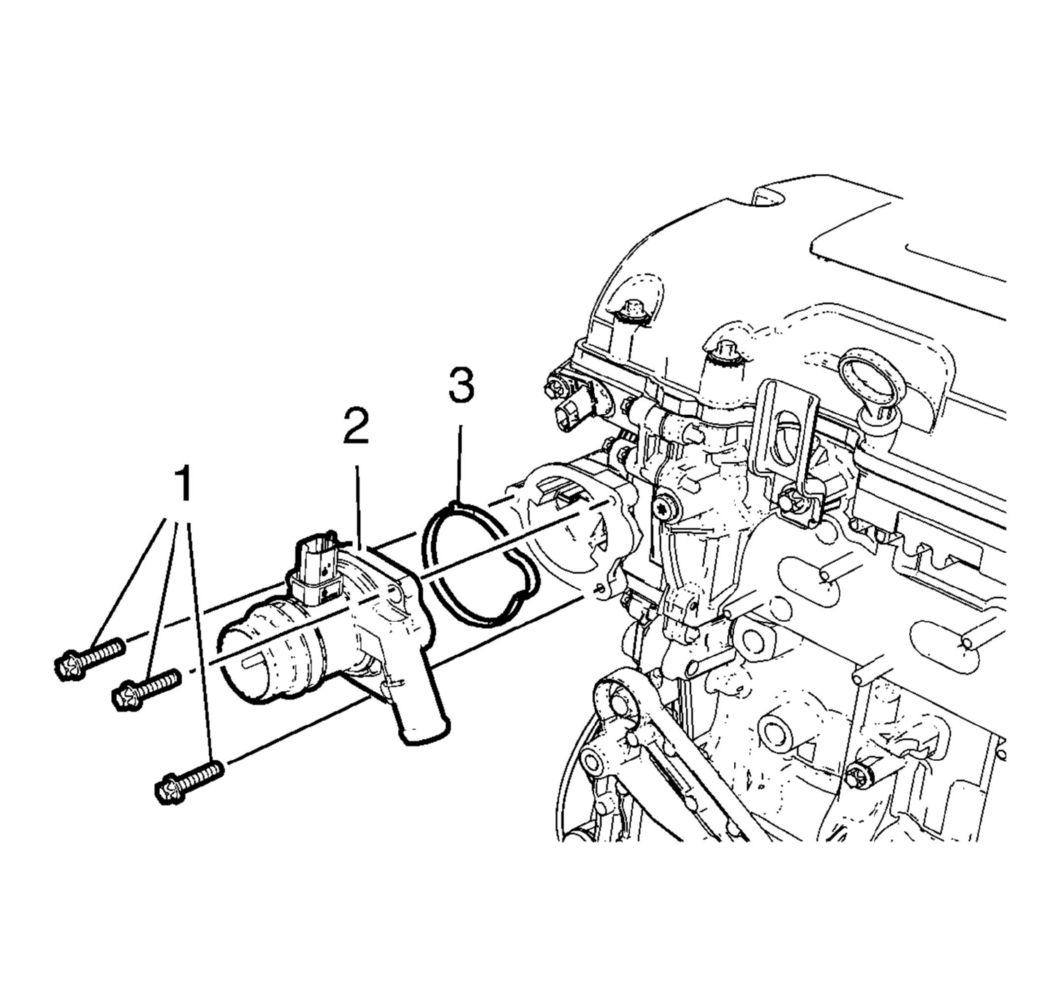

    Fig 1: Engine Coolant Thermostat Housing
    GM2191834Courtesy of GENERAL MOTORS COMPANY
  3. Install the 3 engine coolant thermostat housing bolts (1) and tighten to 8 N.m (71 lb in).
    CAUTION: Refer to Fastener Caution .
