Engine Block Flatness Inspection

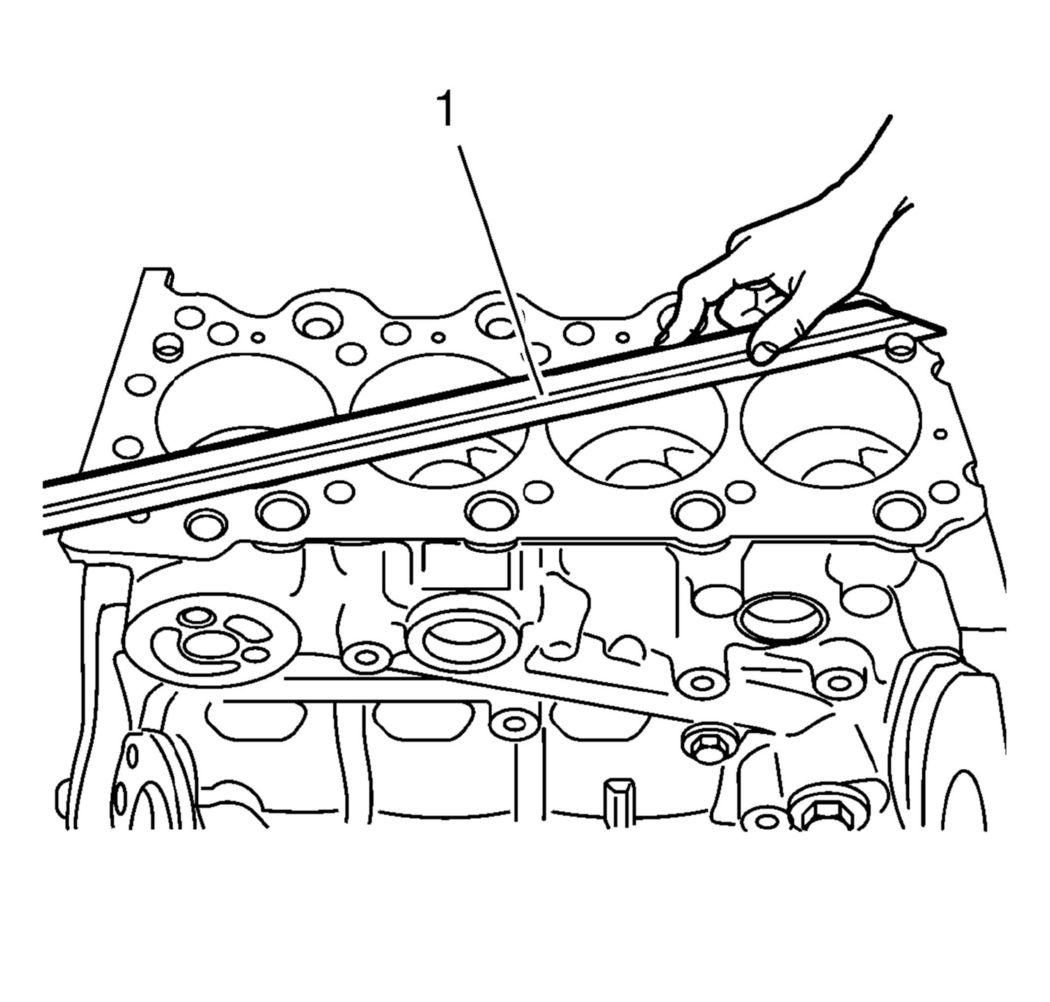

  1. Inspect the engine block as shown for distortion. Use a straightedge (1).
    Fig 1: Inspecting Engine Block For Distortion Using Straight Edge
    GM2189637Courtesy of GENERAL MOTORS COMPANY

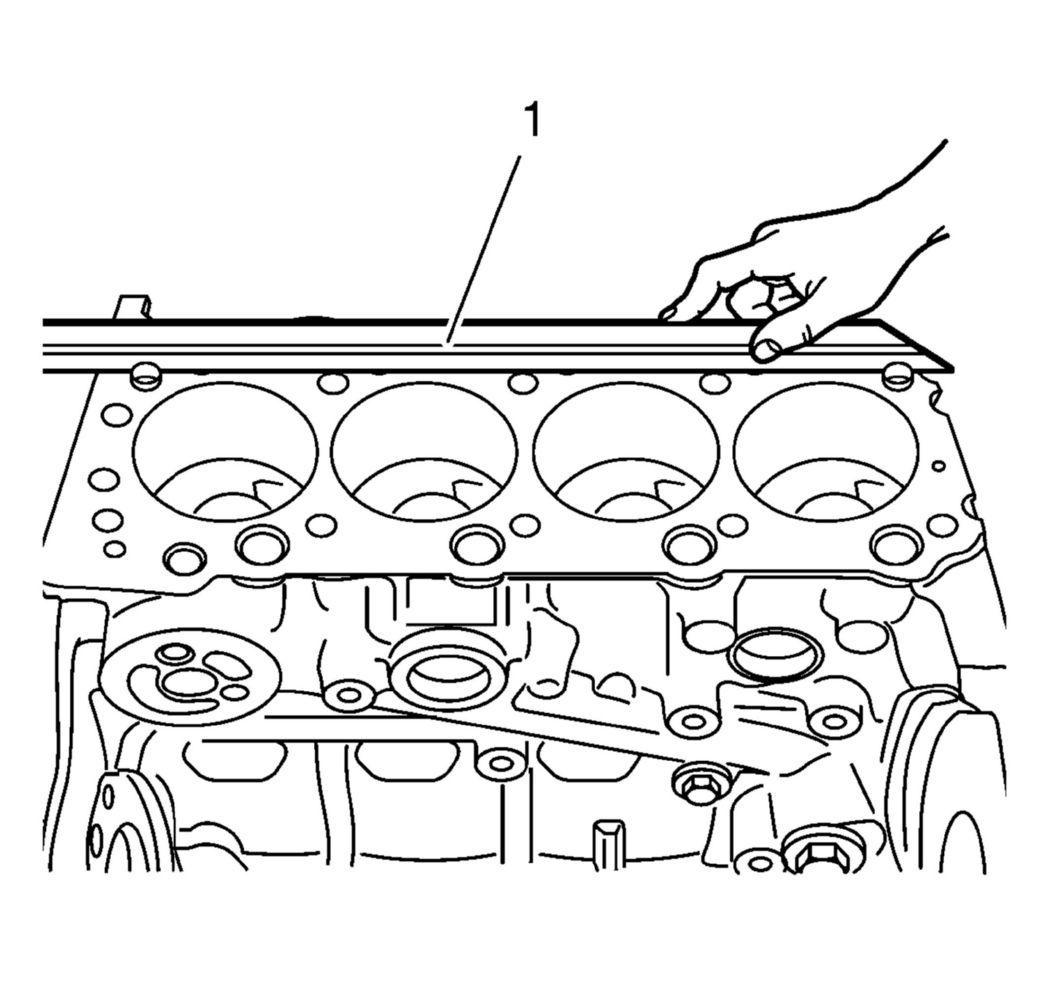

  2. Inspect the engine block as shown for deflection. Use a straightedge (1).
    Fig 2: Inspecting Engine Block For Deflection Using Straight Edge
    GM2189636Courtesy of GENERAL MOTORS COMPANY
