Engine Block Assemble

  1. Install the 4 piston oil nozzles (1).

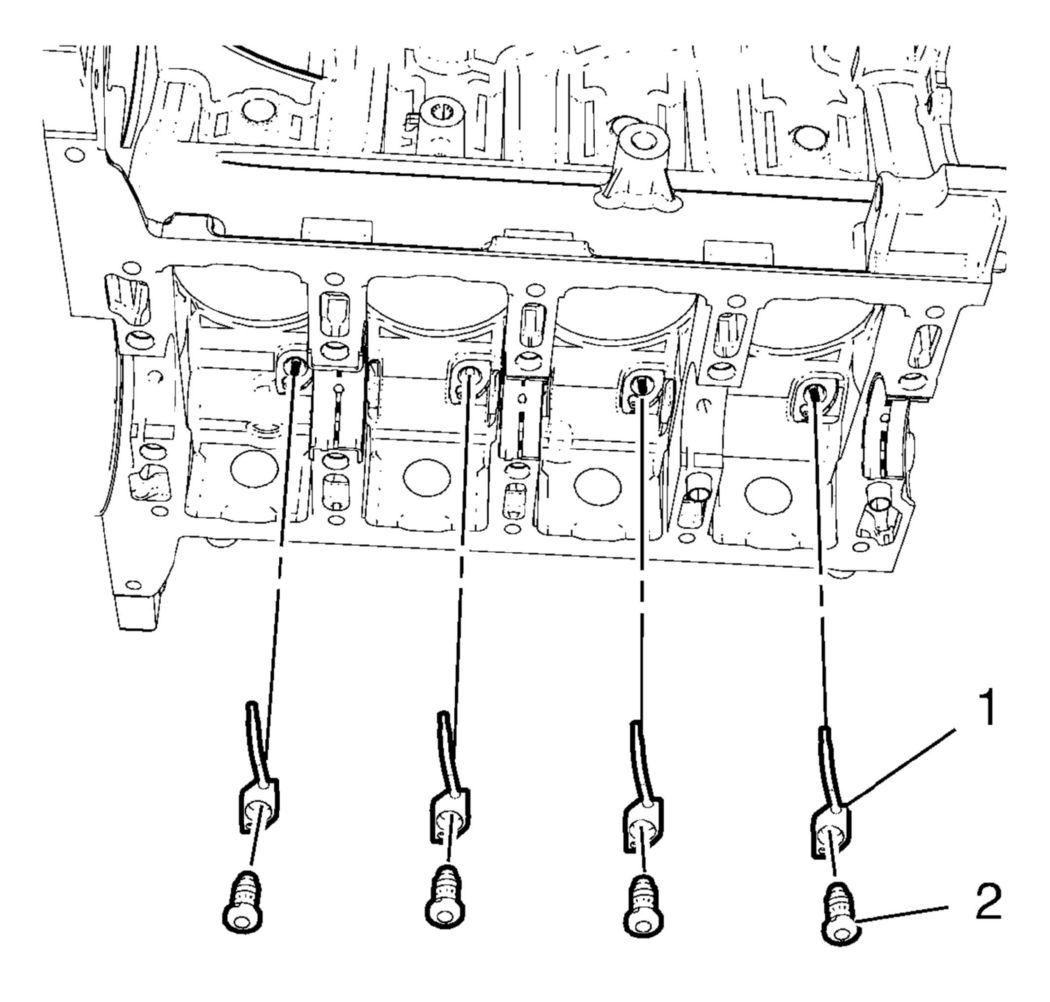

    Fig 1: Piston Oil Nozzles And Bolts
    GM2191859Courtesy of GENERAL MOTORS COMPANY
  2. Install the 4 piston oil nozzle bolts (2) and tighten to 25 N.m (18 lb ft).
    CAUTION: Refer to Fastener Caution .
  3. Install the knock sensor (2).

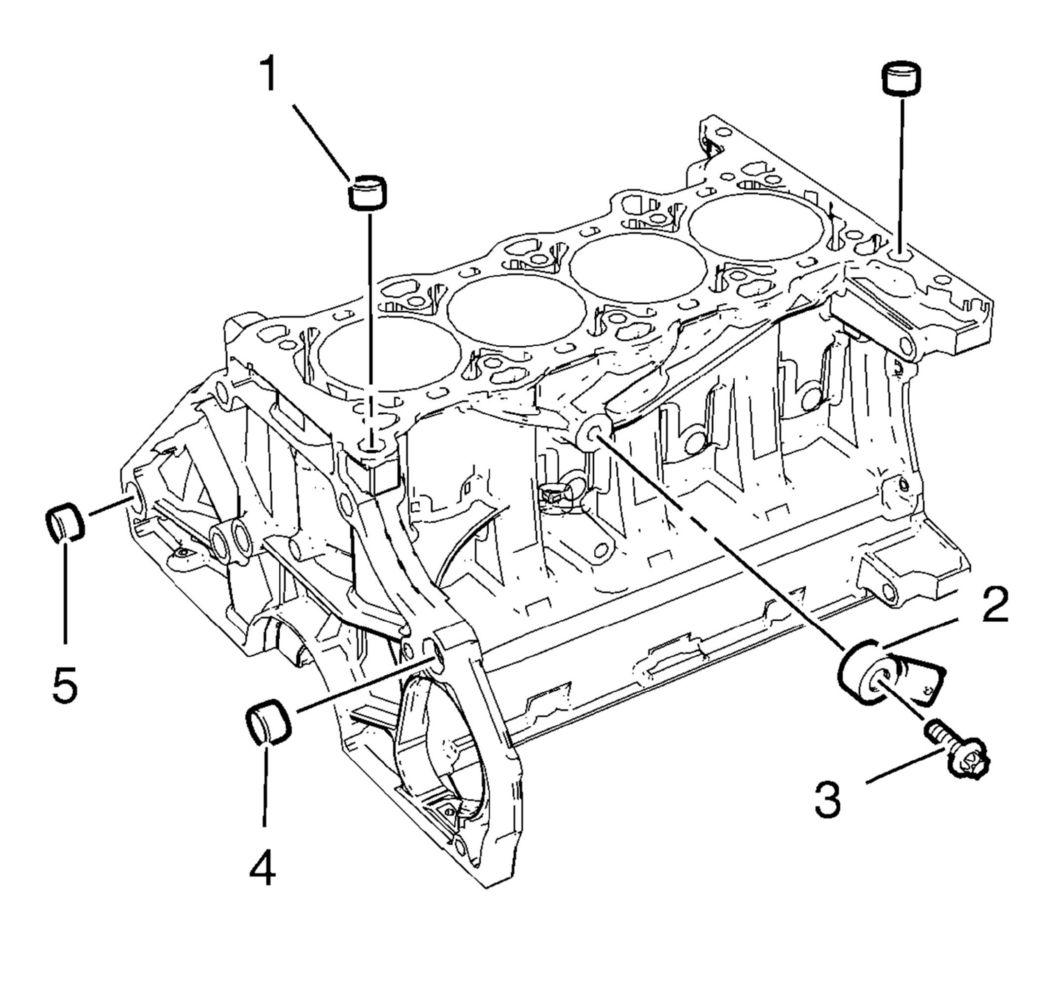

    Fig 2: Knock Sensor, Bolt, Cylinder Head Guide Sleeves And Transmission Guide Sleeves
    GM2190941Courtesy of GENERAL MOTORS COMPANY
  4. Install the knock sensor bolt (3) and tighten to 20 N.m (15 lb ft).
  5. Install the 2 cylinder head guide sleeves (1). Use a rubber mallet.
  6. Install the 2 transmission guide sleeves (4) and (5). Use a rubber mallet.
