Drive Belt Removal

Special Tools

• EN-955  Locking Pins
• EN-48488  Holding Wrench

For equivalent regional tools, refer to Special Tools .

1. Install EN-48488  wrench (1) to the drive belt tensioner.

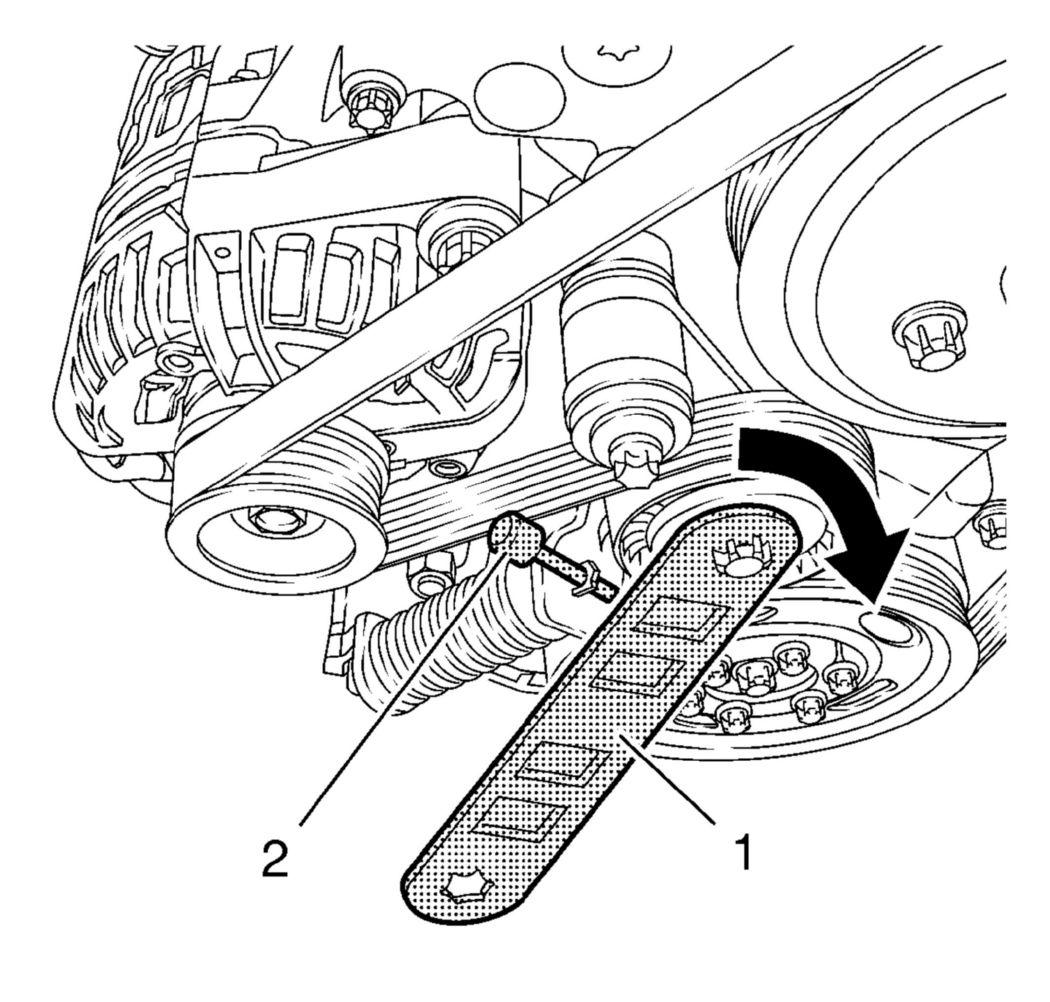

   Fig 1: Locking Pin And Wrench

   Courtesy of GENERAL MOTORS COMPANY
2. Move the drive belt tensioner clockwise until the drive belt tensioner can be fixed with the EN-955-20  locking pin (2).
   NOTE: The drive belt tensioner must always be in a pre-tensioned state.
3. Remove the drive belt.
