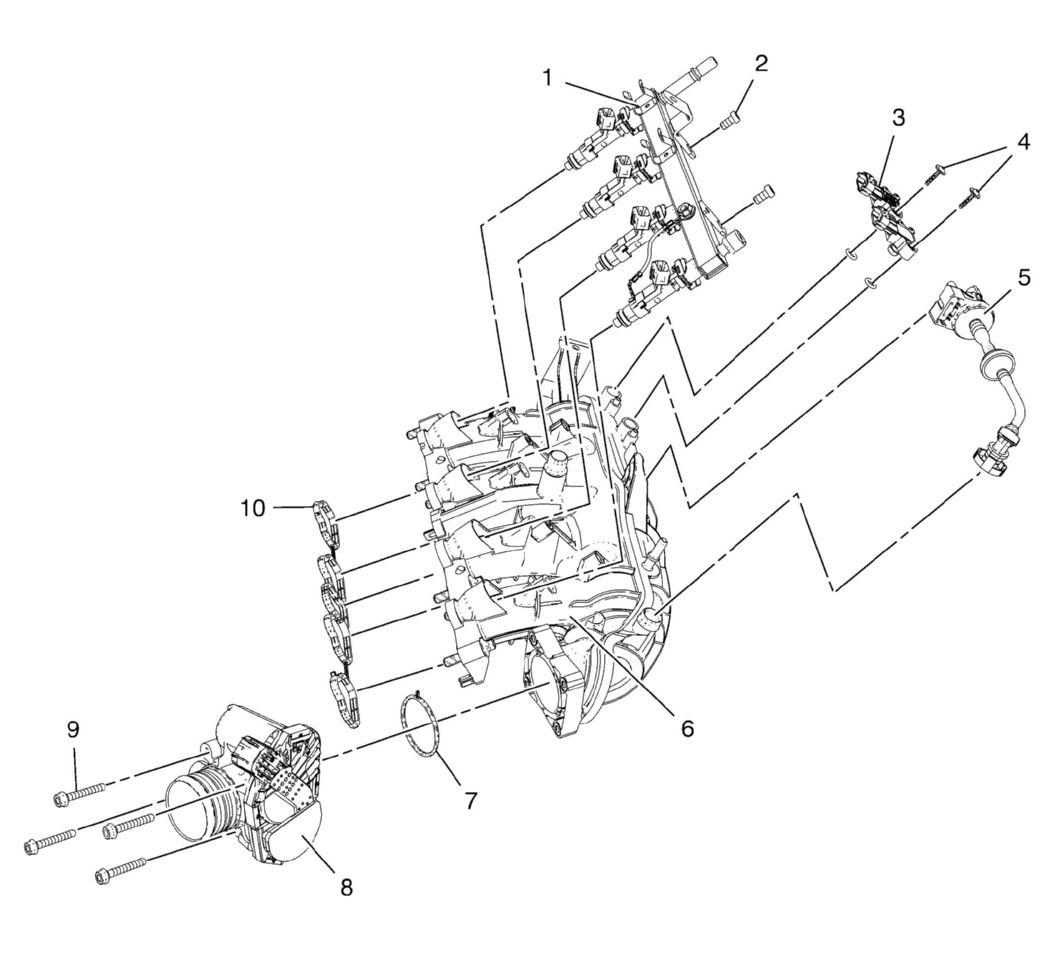

Intake Manifold Assembly- 1.4L LUH and LUJ
| Callout | Component Name |
|---|---|
| 1 | Fuel Injector Fuel Rail |
| 2 | Fuel Injector Fuel Rail Bolt |
| 3 | Manifold Absolute Pressure Sensor |
| 4 | Manifold Absolute Pressure Sensor Bolt |
| 5 | Evaporative Emission Canister Purge Solenoid Valve |
| 6 | Intake Manifold |
| 7 | Throttle Body Seal Ring |
| 8 | Throttle Body |
| 9 | Throttle Body Bolt |
| 10 | Intake Manifold Gasket |
