Exhaust Side - 1.4L LUH and LUJ

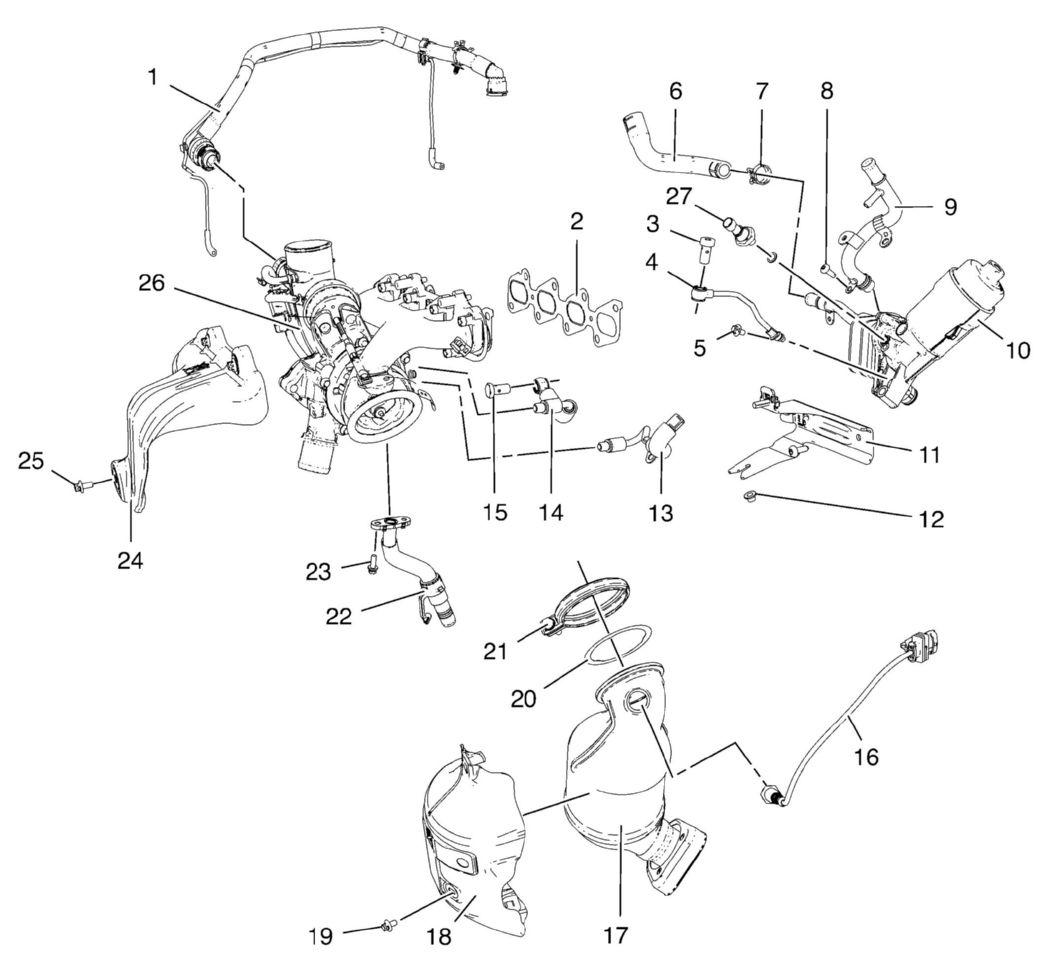

Fig 1: Identifying Exhaust Side Components - 1.4L LUH and LUJ

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Positive Crankcase Ventilation Pipe Assembly
2	Exhaust Manifold Gasket
3	Turbo Charger Oil Feed Pipe Hollow Screw
4	Turbo Charger Oil Feed Pipe
5	Turbo Charger Oil Feed Pipe Bolt
6	Oil Cooler Coolant Outlet Hose
7	Oil Cooler Coolant Outlet Hose Clamp
8	Oil Cooler Coolant Feed Pipe Bolt
9	Oil Cooler Coolant Feed Pipe
10	Engine Oil Cooler Assembly
11	Catalytic Converter Bracket
12	Catalytic Converter to Catalytic Converter Bracket Nut
13	Turbocharger Coolant Return Pipe
14	Turbocharger Coolant Feed Pipe
15	Turbocharger Coolant Feed Pipe Hollow Screw
16	Heated Oxygen Sensor 1
17	Catalytic Converter
18	Catalytic Converter Heat Shield
19	Catalytic Converter Heat Shield Bolt
20	Catalytic Converter Seal
21	Catalytic Converter V-Clamp
22	Turbocharger Oil Return Pipe
23	Turbocharger Oil Return Pipe Bolt
24	Exhaust Manifold Heat Shield
25	Exhaust Manifold Heat Shield Bolt
26	Turbocharger (with Exhaust Manifold)
27	Engine Oil Pressure Switch
