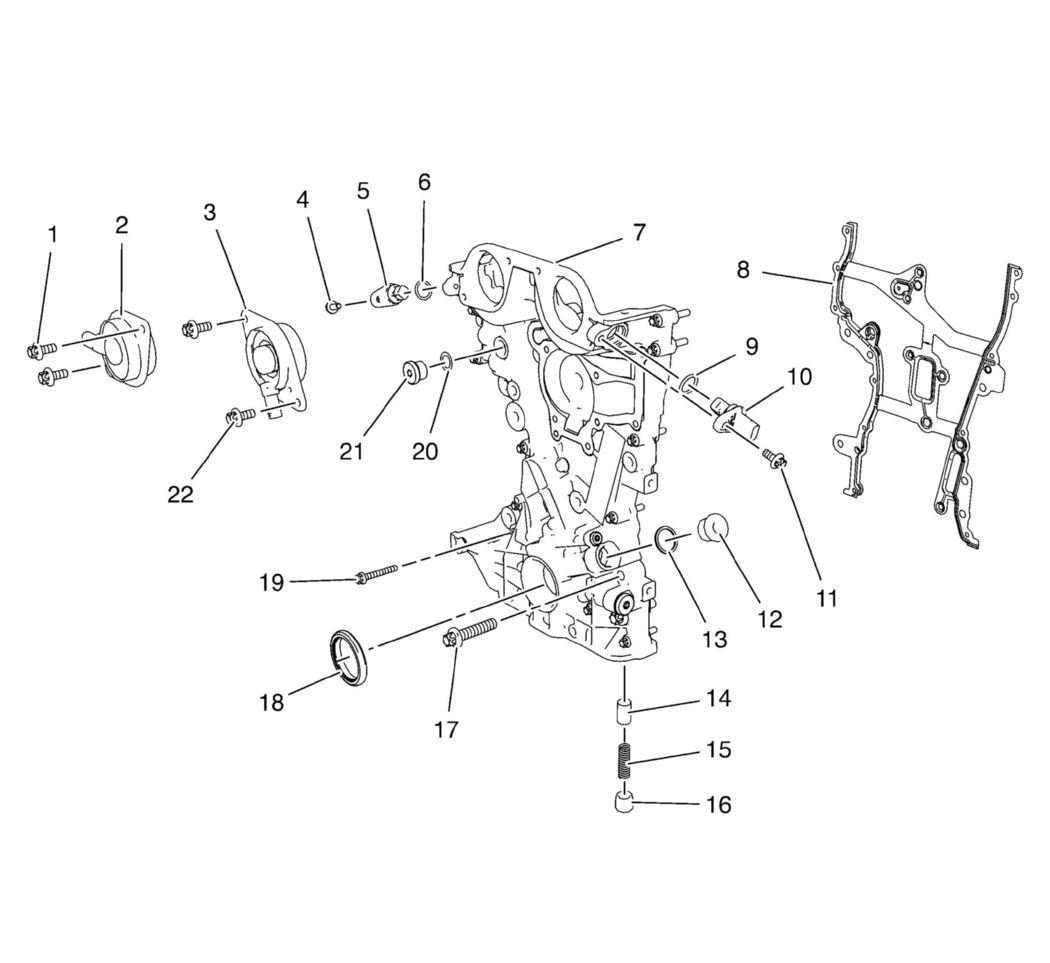

| 1 |
Camshaft Position Actuator Solenoid Valve Bolt |
| 2 |
Intake Camshaft Position Actuator Solenoid Valve |
| 3 |
Exhaust Camshaft Position Actuator Solenoid Valve |
| 4 |
Intake Camshaft Position Sensor Bolt |
| 5 |
Intake Camshaft Position Sensor |
| 6 |
Intake Camshaft Position Sensor Seal Ring |
| 7 |
Engine Front Cover |
| 8 |
Engine Front Cover Gasket |
| 9 |
Exhaust Camshaft Position Sensor Seal Ring |
| 10 |
Exhaust Camshaft Position Sensor |
| 11 |
Exhaust Camshaft Position Sensor Bolt |
| 12 |
Engine Front Cover Oil Gallery Plug |
| 13 |
Engine Front Cover Oil Gallery Plug Seal Ring |
| 14 |
Oil Pressure Relief Valve Piston |
| 15 |
Oil Pressure Relief Valve Spring |
| 16 |
Oil Pressure Relief Valve Plug |
| 17 |
Engine Front Cover Bolt (M10) |
| 18 |
Crankshaft Front Oil Seal |
| 19 |
Engine Front Cover Bolt (M6) |
| 20 |
Water Drain Plug Seal Ring |
| 21 |
Water Drain Plug |
| 22 |
Exhaust Camshaft Position Actuator Solenoid Valve Bolt |
