For example shown by a exhaust rear muffler replacement

  1. Cut on line (1) left from the dent mark (2) on the exhaust pipe.

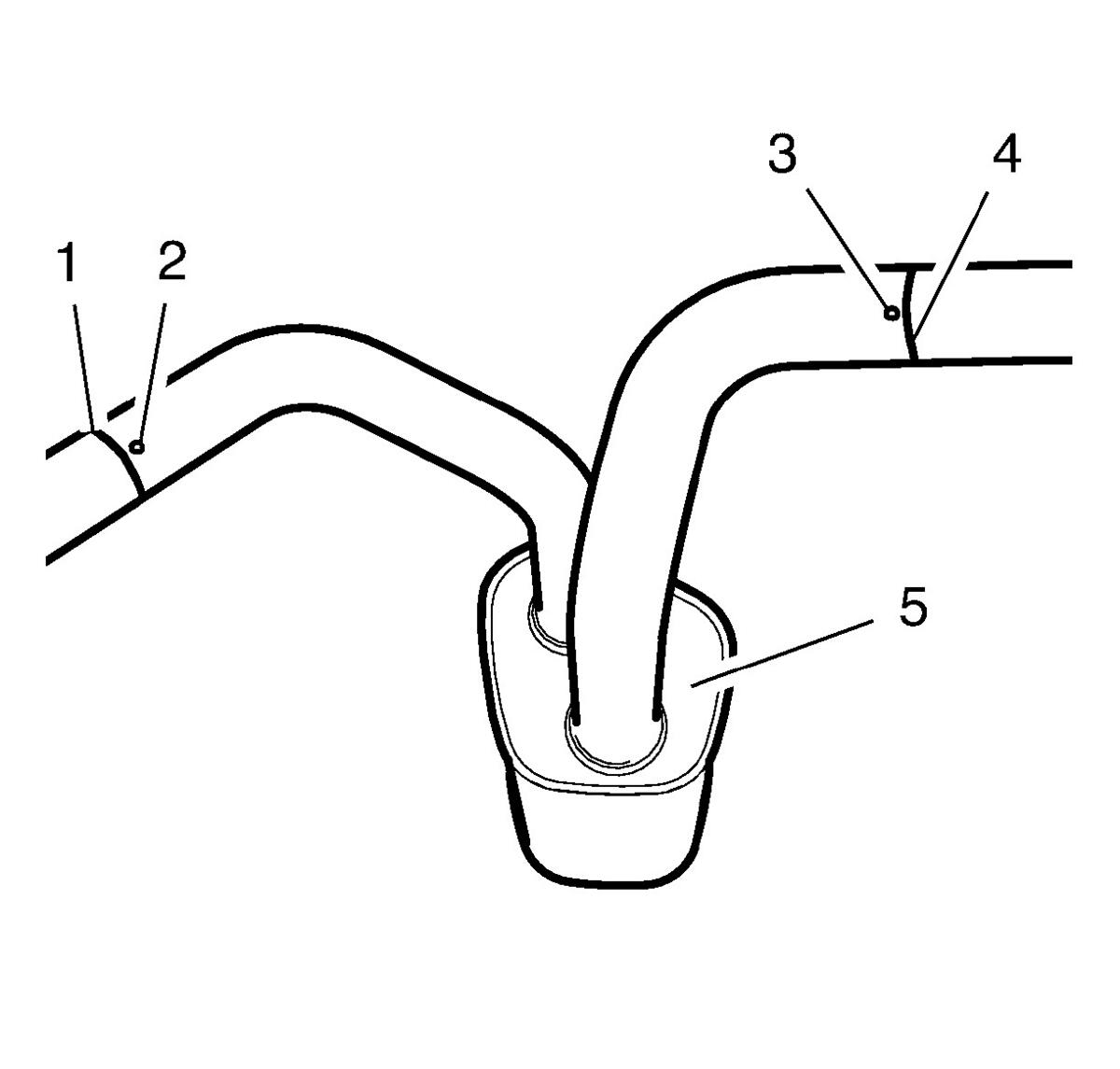

    Fig 1: Exhaust Pipe Cutting Lines
    GM2897190Courtesy of GENERAL MOTORS COMPANY
  2. Cut on line (4) right from the dent mark (3) on the exhaust pipe.
  3. Remove the exhaust rear muffler (5).
