Exhaust Rear Muffler Heat Shield Replacement

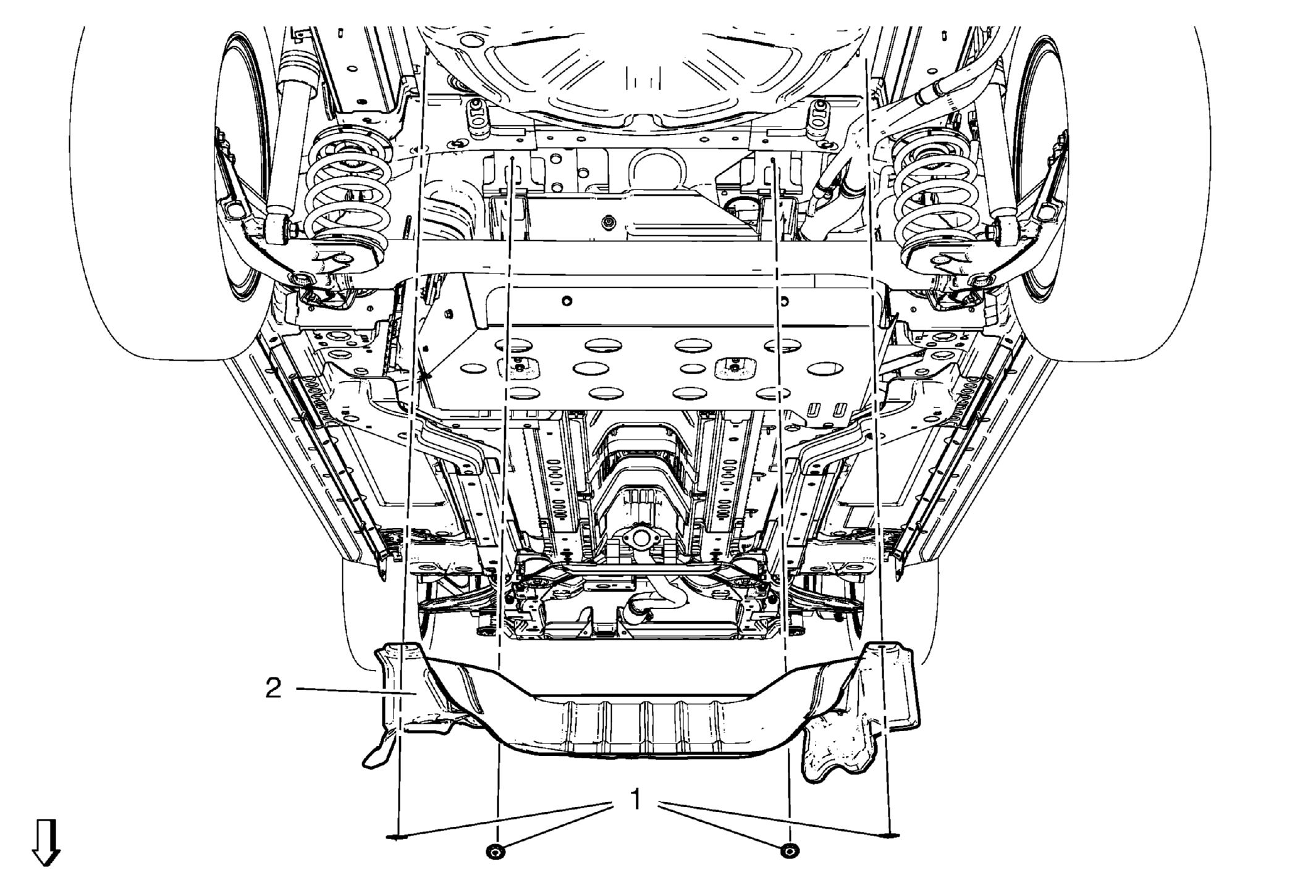

Fig 1: Exhaust Rear Muffler Heat Shield

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Exhaust Service Warning . WARNING: Refer to Protective Goggles and Glove Warning . Preliminary Procedures Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Separate the exhaust rear muffler from the underbody and support the exhaust system.
1	Heat Shield Retainer (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 1.5 N.m (13 lb in)
2	Exhaust Rear Muffler Heat Shield

Callout

Component Name

WARNING: Refer to Exhaust Service Warning .

WARNING: Refer to Protective Goggles and Glove Warning .

Preliminary Procedures

Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
Separate the exhaust rear muffler from the underbody and support the exhaust system.

Heat Shield Retainer (Qty: 4)

CAUTION: Refer to Fastener Caution .

Tighten
1.5 N.m (13 lb in)

Exhaust Rear Muffler Heat Shield
