Exhaust Pipe Front Hanger Bracket Replacement

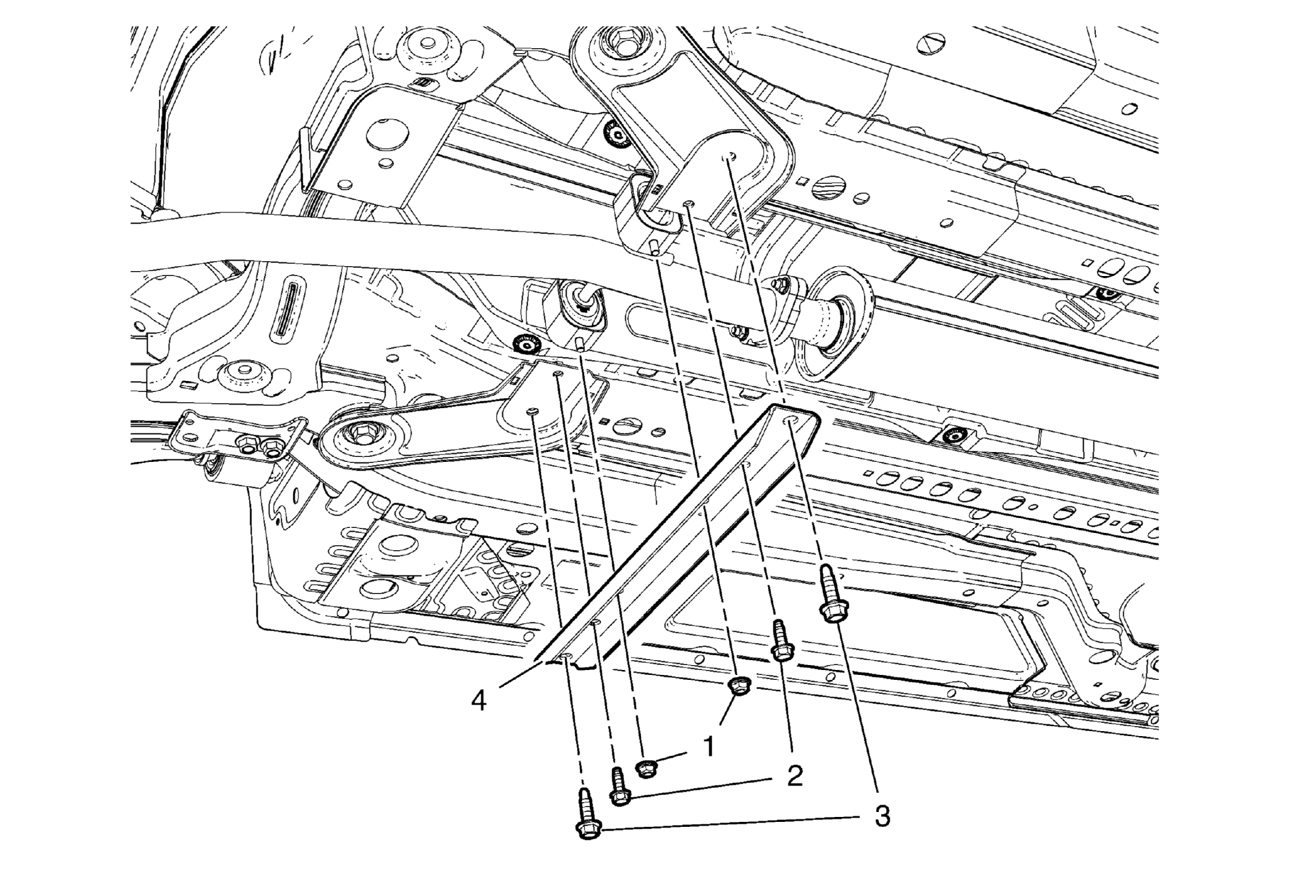

Fig 1: Exhaust Pipe Front Hanger Bracket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Exhaust Service Warning . WARNING: Refer to Protective Goggles and Glove Warning . Preliminary Procedure Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .Special Tools EN-45059 Angle MeterFor equivalent regional tools, refer to Special Tools .
1	Exhaust Pipe Front Hanger Insulator Nut (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 17 N.m (13 lb ft)
2	Exhaust Pipe Front Hanger Bracket Bolt (Qty: 2) CAUTION: Refer to Torque-to-Yield Fastener Caution . Procedure Install NEW bolts, do NOT reuse old bolts. Tighten First Pass: 22 N.m (16 lb ft). Final Pass: 30-45 degrees, using the EN-45059 meter.
3	Drivetrain and Front Suspension Frame Support Bolt (Qty: 2) Procedure Install NEW bolts, do NOT reuse old bolts. Tighten First Pass: 60 N.m (44 lb ft). Final Pass: 30-45 degrees, using the EN-45059 meter.
4	Exhaust Pipe Front Hanger Bracket
