Exhaust Heat Shield Replacement (2.0L Diesel LUZ)

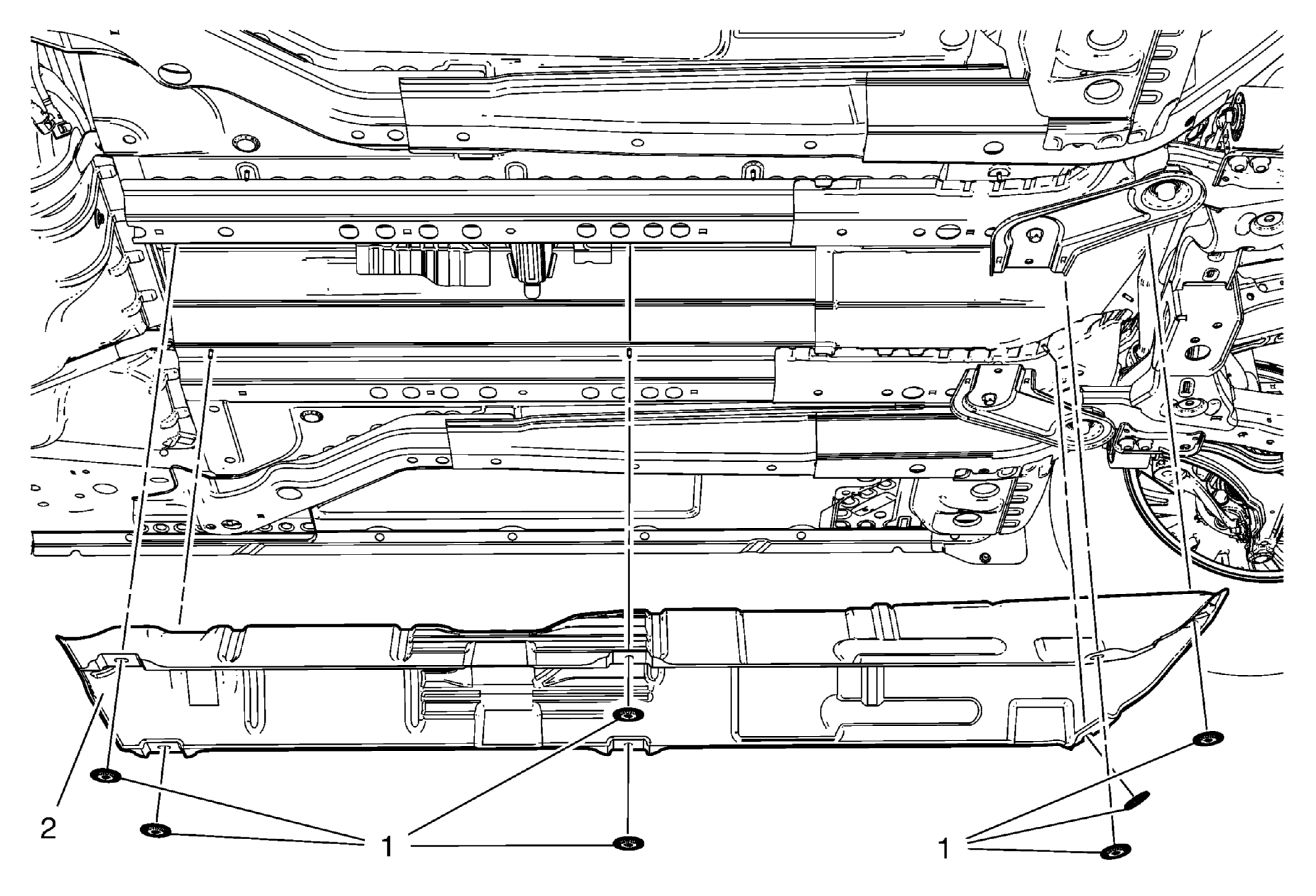

Fig 1: Exhaust Heat Shield And Retainers

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Exhaust Service Warning . WARNING: Refer to Protective Goggles and Glove Warning . Preliminary Procedure Remove the three way catalytic converter. Refer to Three-Way Catalytic Converter Replacement .
1	Heat Shield Retainer (Qty: 7)
2	Heat Shield
