Installation Procedure

  1. Install the exhaust manifold heat shield (3).

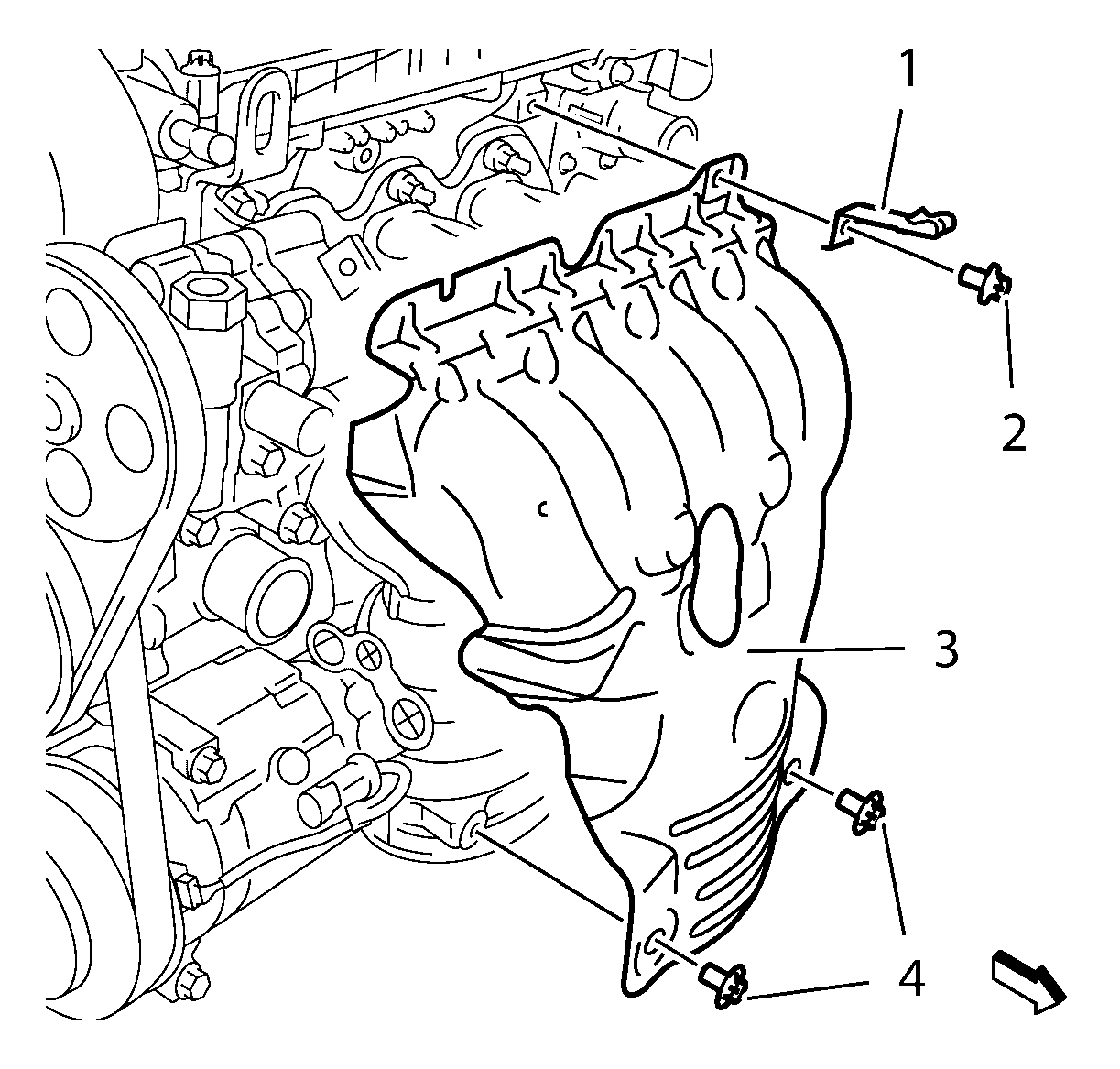

    Fig 1: Wiring Harness Bracket And Exhaust Manifold Heat Shield
    GM2027674Courtesy of GENERAL MOTORS COMPANY
  2. Install the 2 exhaust manifold heat shield bolts (4) and tighten to 8 N.m (71 lb in).
    CAUTION: Refer to Fastener Caution .
  3. Install the wiring harness bracket (1) and the wiring harness bracket bolt (2) and tighten to 15 N.m (11 lb ft).
  4. Install the oil level indicator tube. Refer to Oil Level Indicator Tube Replacement .
  5. Connect the heated oxygen sensor wiring harness plug.
  6. Connect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
  7. Close the hood.
