Catalytic Converter Heat Shield Replacement (1.4L LUV)

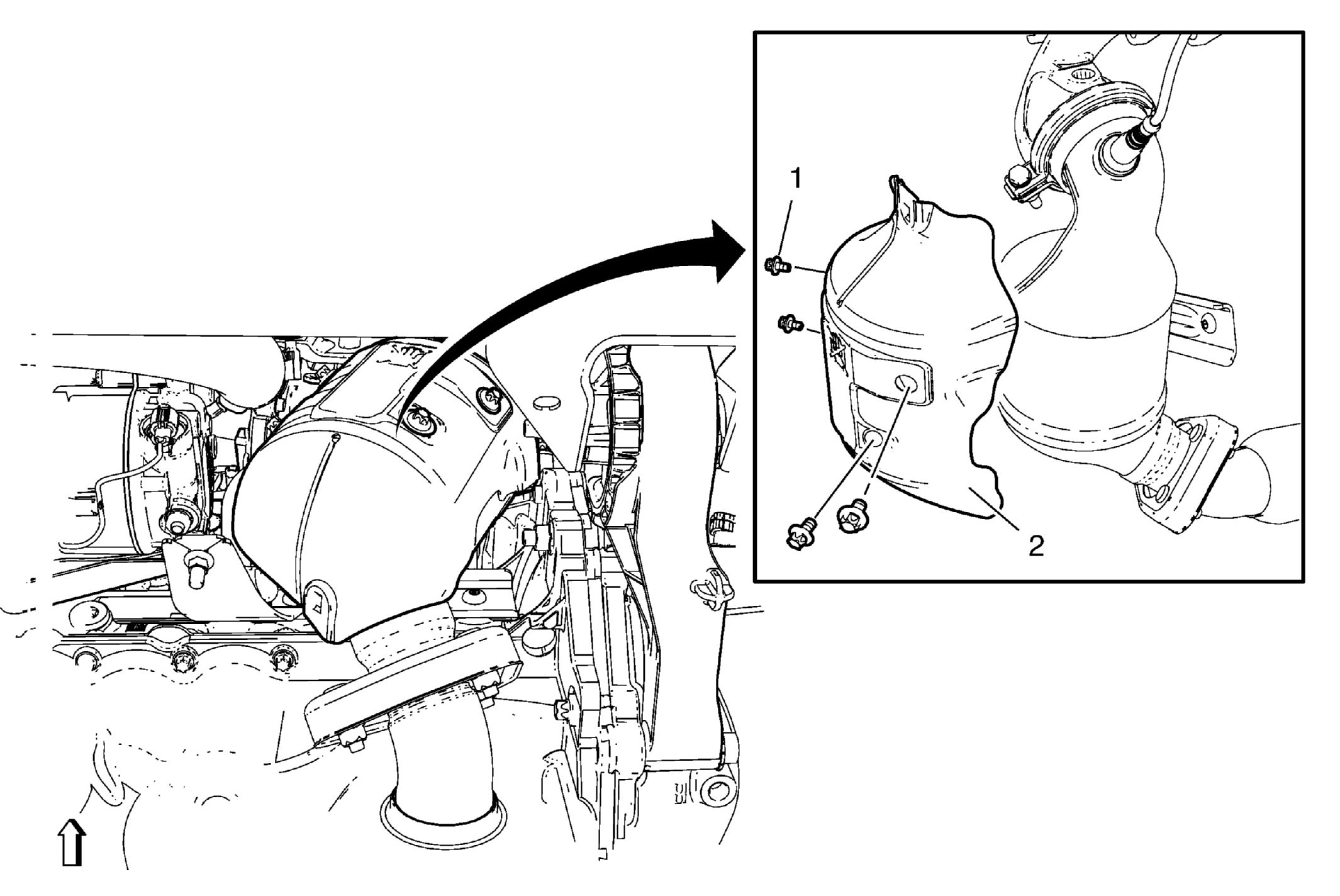

Fig 1: Catalytic Converter Heat Shield (1.4L LUV)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: In order to avoid being burned, do not service the exhaust system while it is still hot. Service the system when it is cool. WARNING: Always wear protective goggles and gloves when removing exhaust parts as falling rust and sharp edges from worn exhaust components could result in serious personal injury. Preliminary Procedure Open the hood. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle
1	Catalytic Converter Heat Shield Bolt (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten: 10 N.m (89 lb in)
2	Catalytic Converter Heat Shield

Callout

Component Name

WARNING: In order to avoid being burned, do not service the exhaust system while it is still hot. Service the system when it is cool.

WARNING: Always wear protective goggles and gloves when removing exhaust parts as falling rust and sharp edges from worn exhaust components could result in serious personal injury.

Preliminary Procedure

Open the hood.
Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle

Catalytic Converter Heat Shield Bolt (Qty: 4)

CAUTION: Refer to Fastener Caution .

Tighten:
10 N.m (89 lb in)

Catalytic Converter Heat Shield
