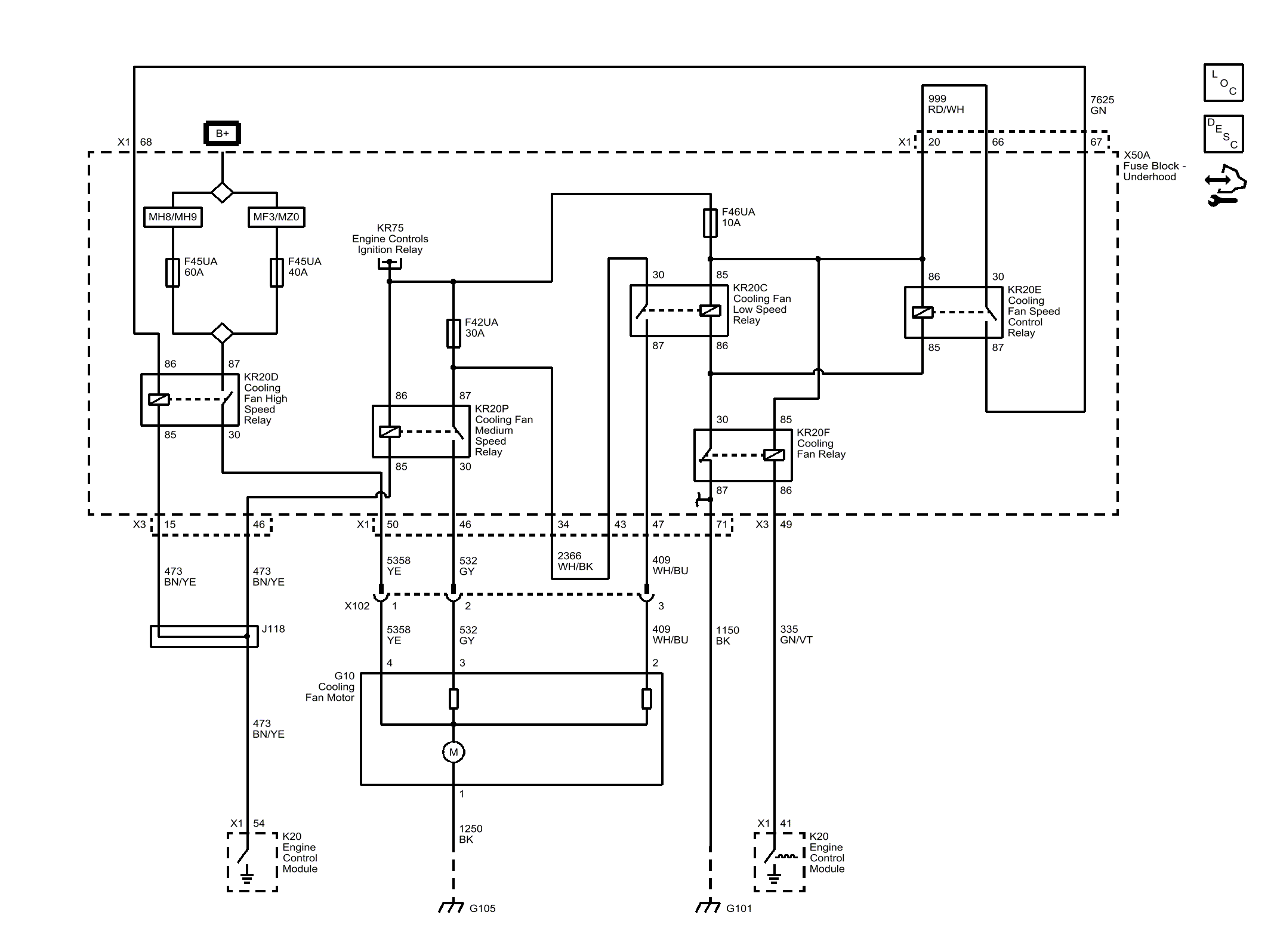

Home >> Chevrolet >> 2015 >> Cruze LT, Automatic Trans >> Repair and Diagnosis >> Engine Mechanical >> Cooling System (Mechanical) >> Engine Cooling System >> Schematic Wiring Diagrams >> Engine Heating/Cooling Wiring Schematics >> Engine Cooling
