Installation Procedure

  1. Clean the 5 water pump threads.
  2. Clean the water pump sealing surface.
  3. Insert a NEW water pump seal ring.
  4. Install the water pump (1).

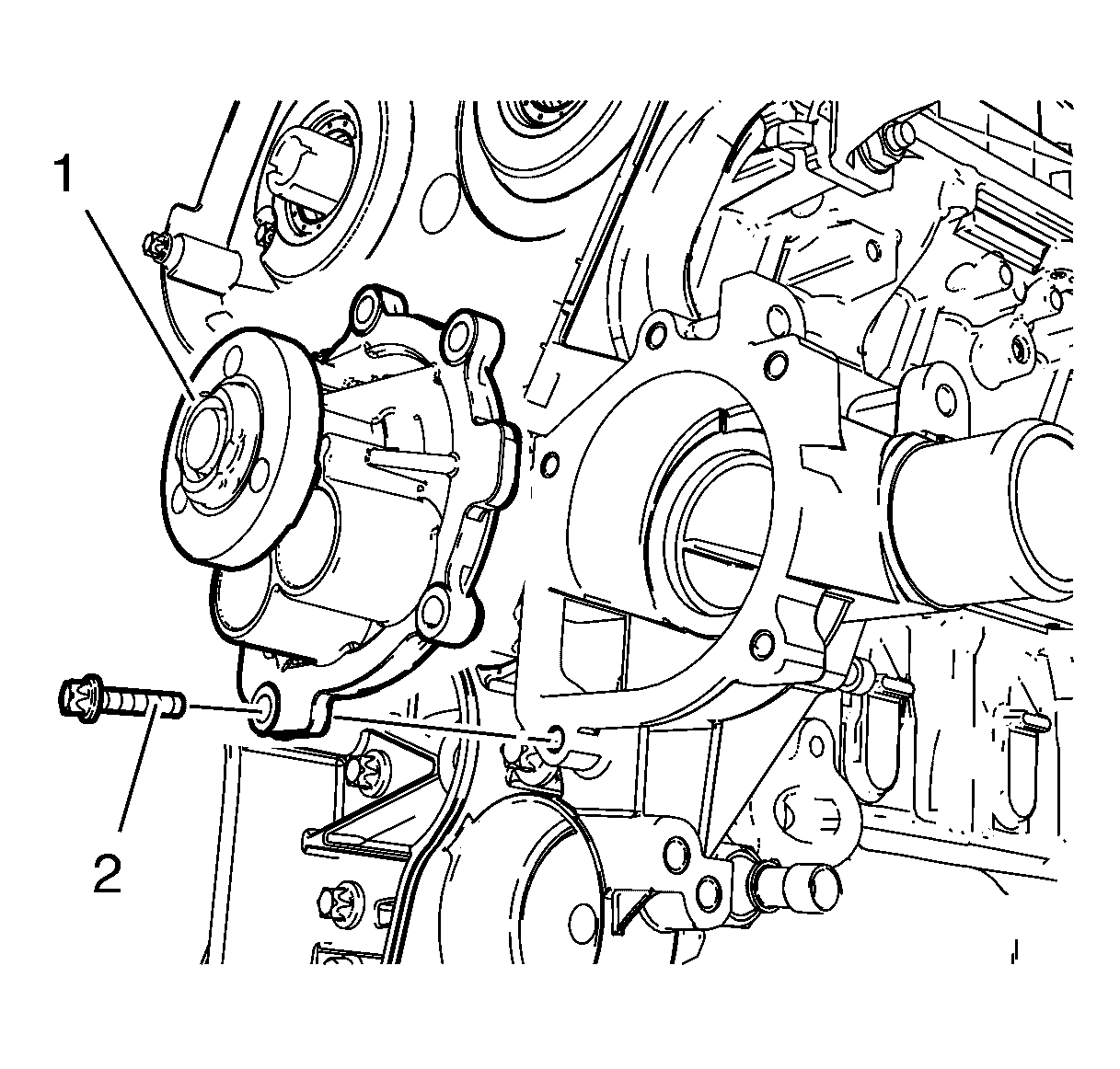

    Fig 1: Water Pump And Bolts
    GM2026886Courtesy of GENERAL MOTORS COMPANY
  5. Install the 5 water pump bolts (2) and tighten to 8 N.m (71 lb in).
    CAUTION: Refer to Fastener Caution .
  6. Install the water pump pulley. Refer to Water Pump Pulley Replacement (1.8L LUW and LWE)  and Water Pump Pulley Replacement (1.4L LUV) .
  7. Refill the cooling system. Refer to Cooling System Draining and Filling (GE-47716 Fill)  and Cooling System Draining and Filling (Static Fill) .
