Installation Procedure

Install a NEW gasket. (1)

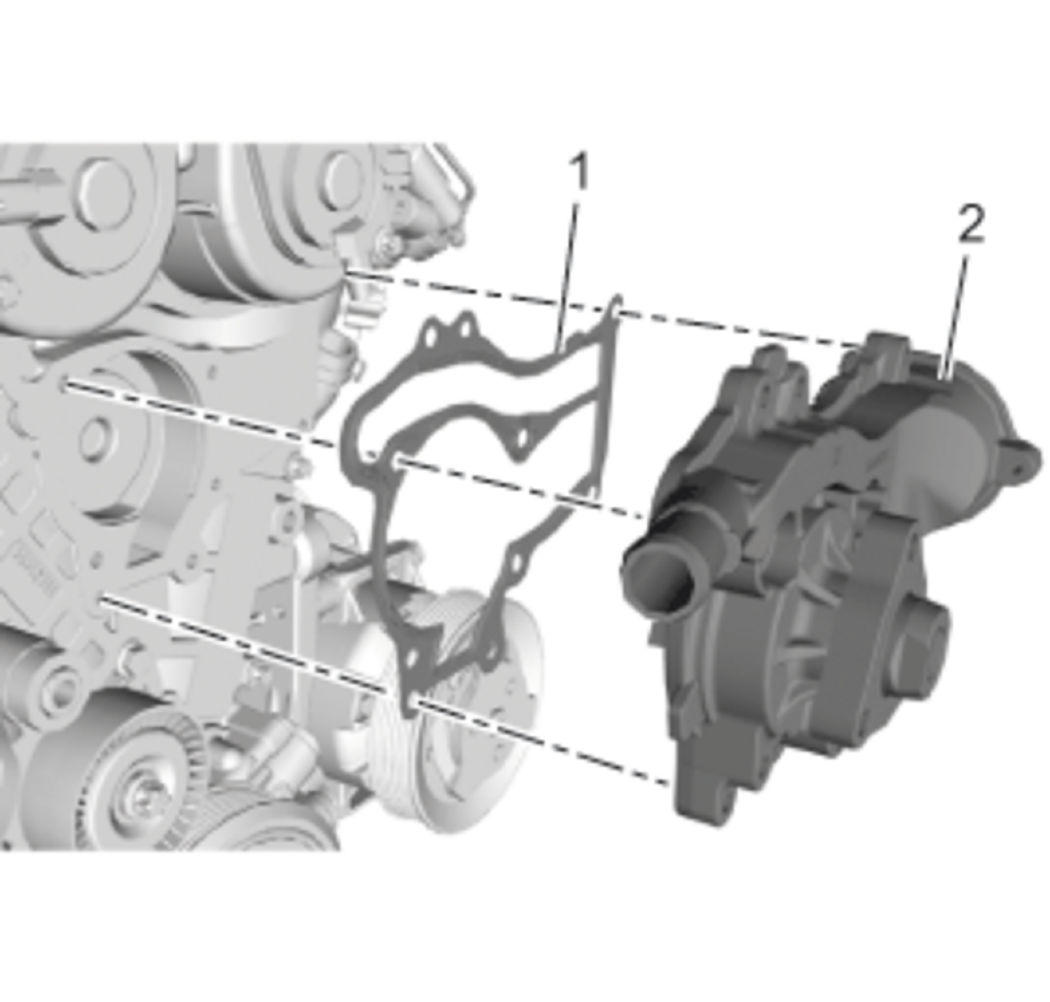

Fig 1: Identifying Gasket And Water Pump
Courtesy of GENERAL MOTORS COMPANY
Water Pump (2) »Install
Install the 2 NEW front cover bolts (1, 8).

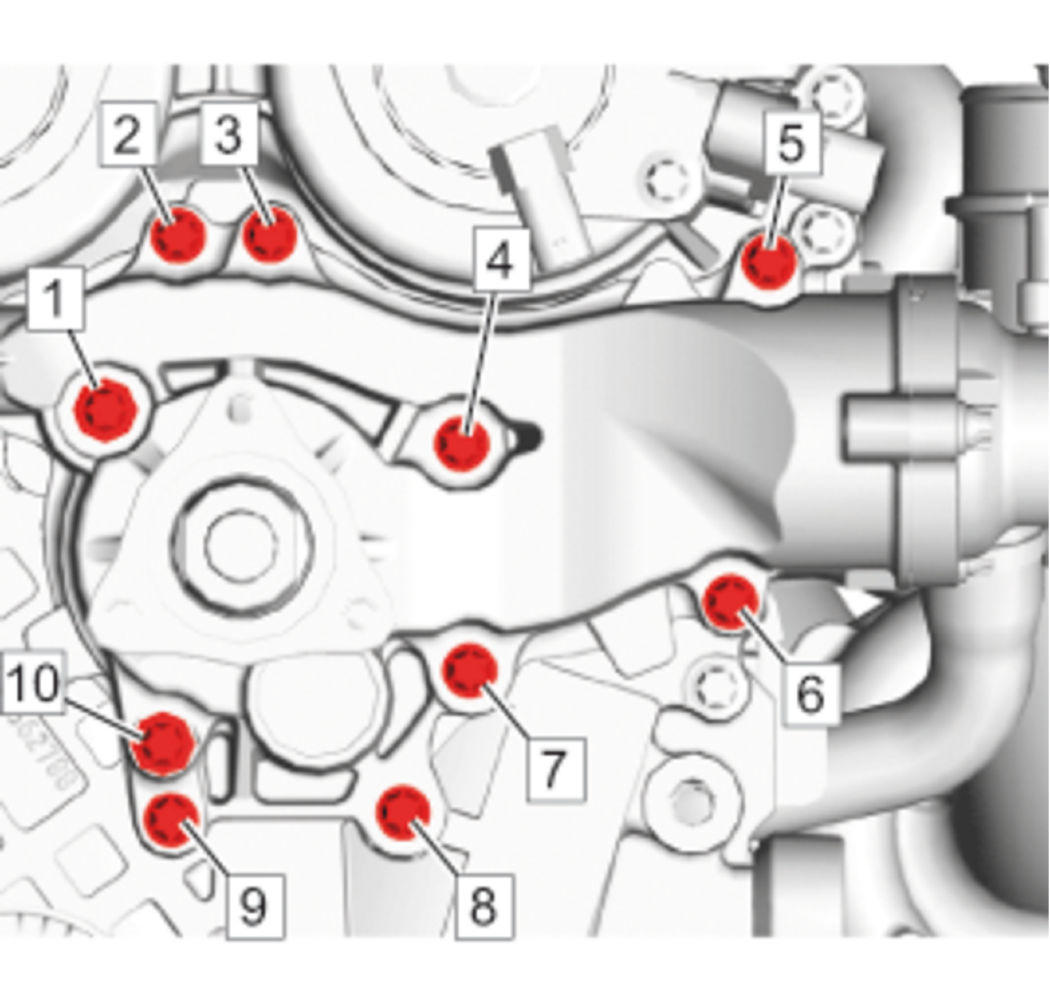

Fig 2: Identifying Bolts
Courtesy of GENERAL MOTORS COMPANY

NOTE: Mind the different bolt length.
Install the remaining 8 bolts (2-7, 9, 10).
Tighten the 5 water pump bolts (3-5, 7, 9) and the 5 engine front cover bolts (1, 2, 6, 8, 10) in a cross sequence to 8 N.m (71 lb in).
CAUTION: Refer to Fastener Caution .

CAUTION: Refer to Torque-to-Yield Fastener Caution .
Tighten ONLY the 2 front cover bolts (1, 8) to an additional 30 degrees, using the EN-45059 meter.
- Bolt (1) 60 mm (2.362 in)
- Bolt (8) 52 mm (2.047 in)
Heater Outlet Hose Replacement (1.4L LUV) »Install
Water Pump Pulley Replacement (1.4L LUV) »Install
Engine Coolant Thermostat Housing Replacement (1.4L LUV) »Install
Cooling System Draining and Filling (GE-47716 Fill) and Cooling System Draining and Filling (Static Fill) »Install
