Installation Procedure

  1. Install the water pump pulley (2) to the water pump (3).

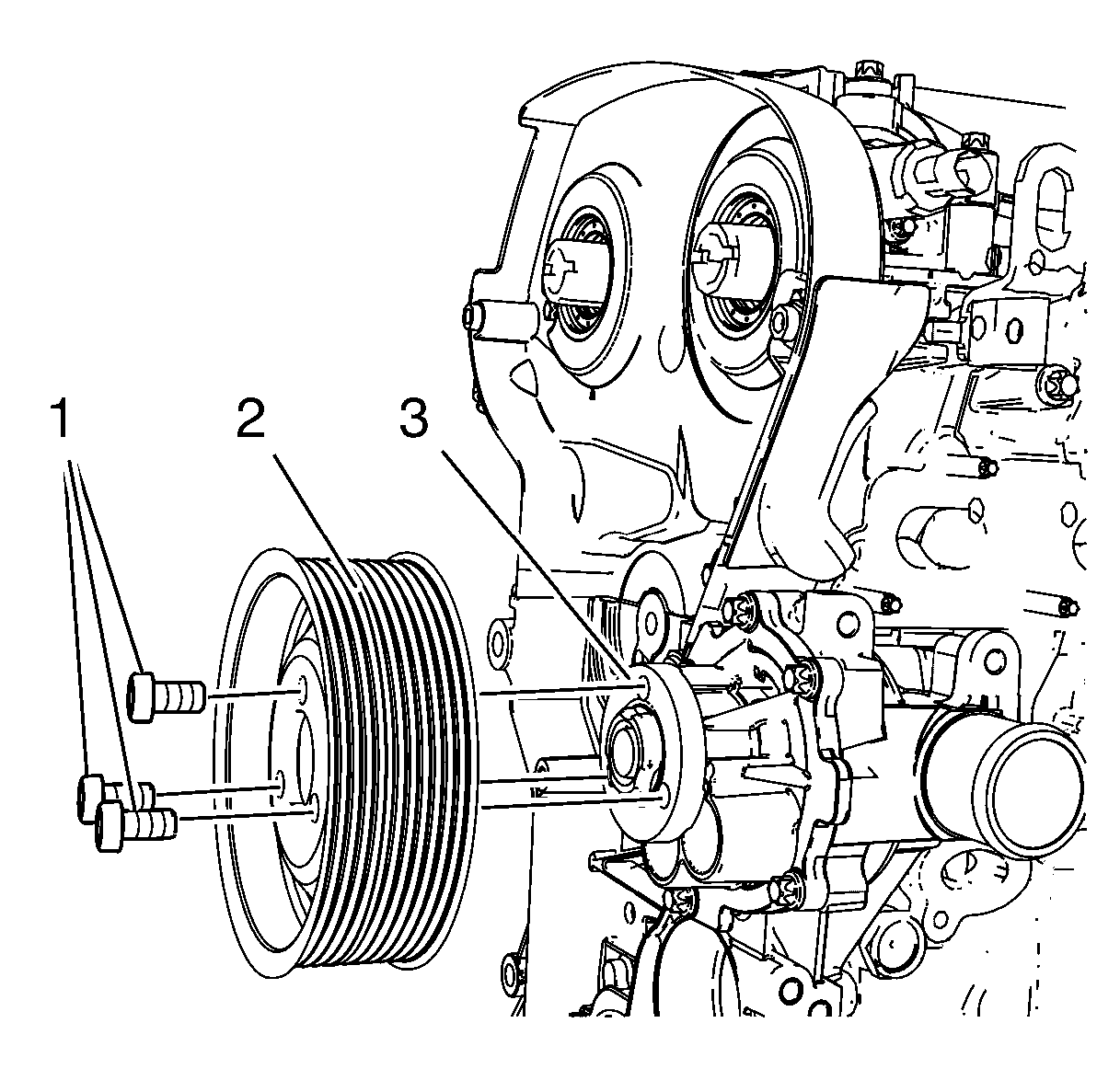

    Fig 1: Water Pump And Water Pump Pulley
    GM2026887Courtesy of GENERAL MOTORS COMPANY
  2. Install the 3 water pump pulley bolts (1).
  3. Install the drive belt. Refer to Drive Belt Replacement .
  4. Tighten the 3 water pump pulley bolts (1) to 20 N.m (15 lb ft).
    CAUTION: Refer to Fastener Caution .
    NOTE: Counterhold against crankshaft balancer bolt.
  5. Install the air cleaner housing. Refer to Air Cleaner Assembly Replacement (1.8L LUW) and Air Cleaner Assembly Replacement (1.8L LWE) .
