Installation Procedure

  1. Install the throttle body heater outlet hose (2).

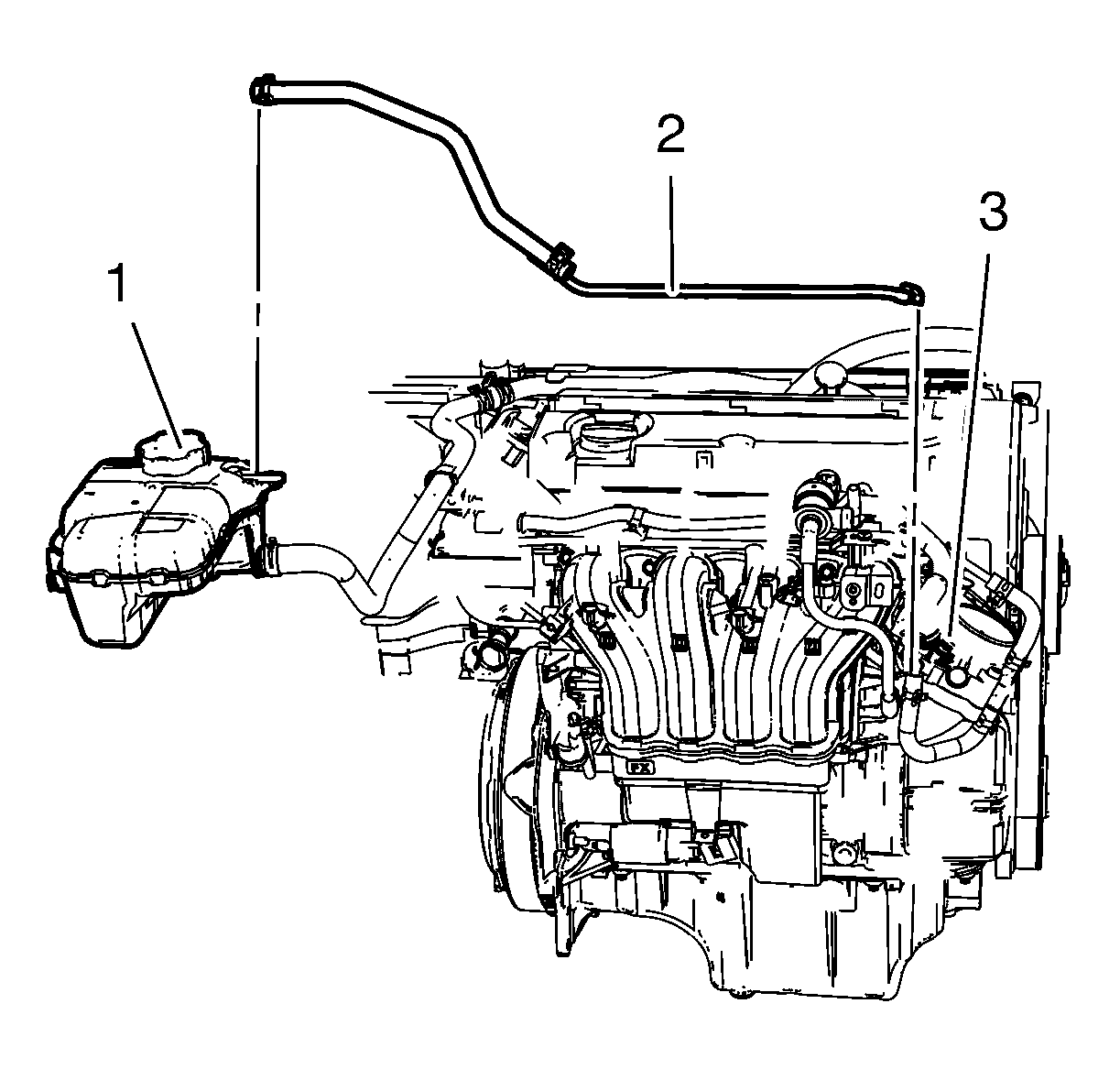

    Fig 1: Radiator Surge Tank, Throttle Body And Throttle Body Heater Outlet Hose
    GM2027527Courtesy of GENERAL MOTORS COMPANY
  2. Connect the throttle body heater outlet hose connector to the throttle body (3)
  3. Connect the throttle body heater outlet hose (2) to the radiator surge tank (1) and install the clamp.
  4. Clip in the throttle body heater outlet hose to the intake manifold
  5. Top off the coolant by filling to the bottom line (black arrow) on the coolant surge tank (1), if necessary.

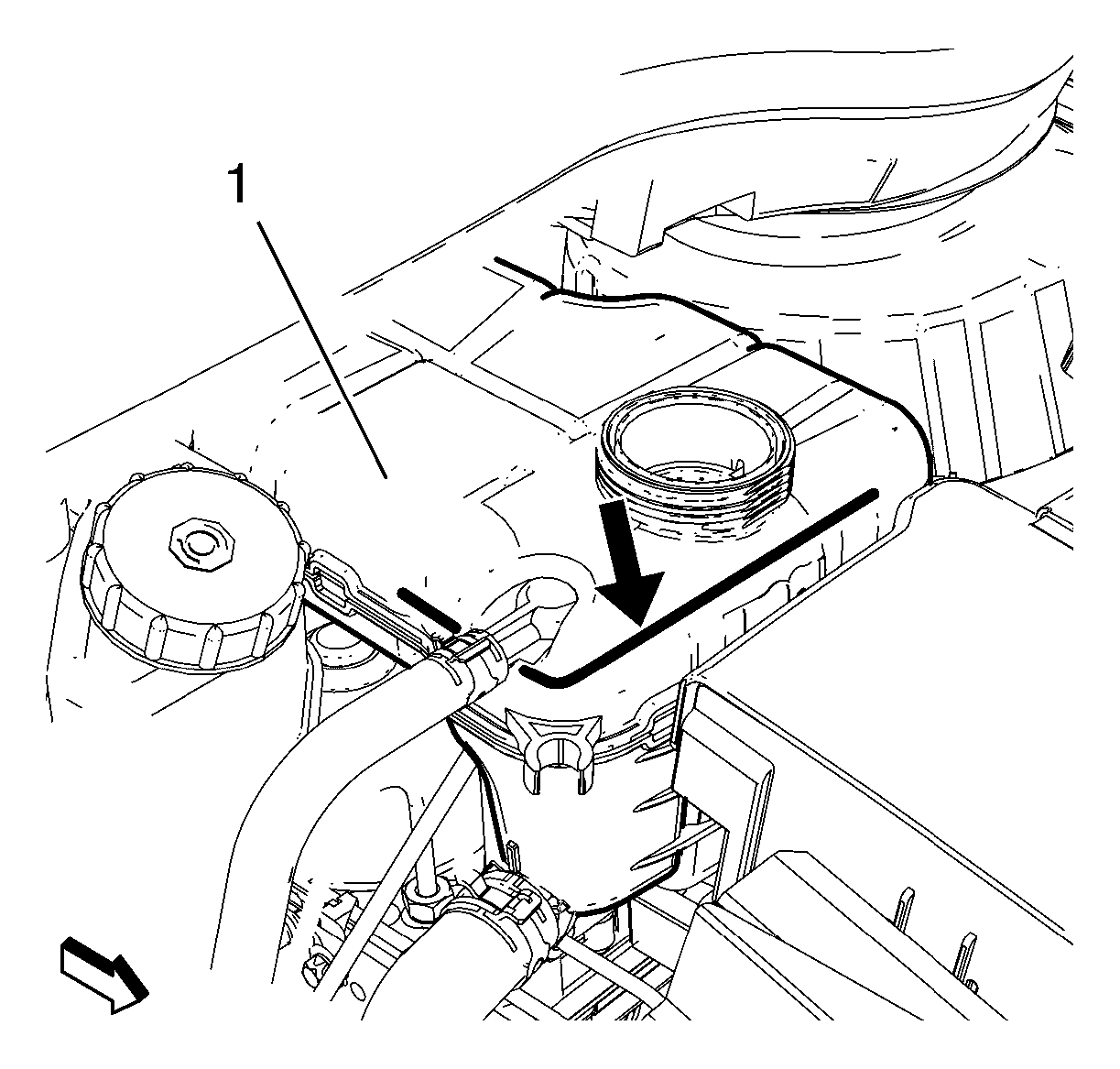

    Fig 2: Radiator Coolant Surge Tank
    GM2189523Courtesy of GENERAL MOTORS COMPANY
  6. Close the hood.
