Installation Procedure

  1. Install the throttle body heater inlet hose (2).

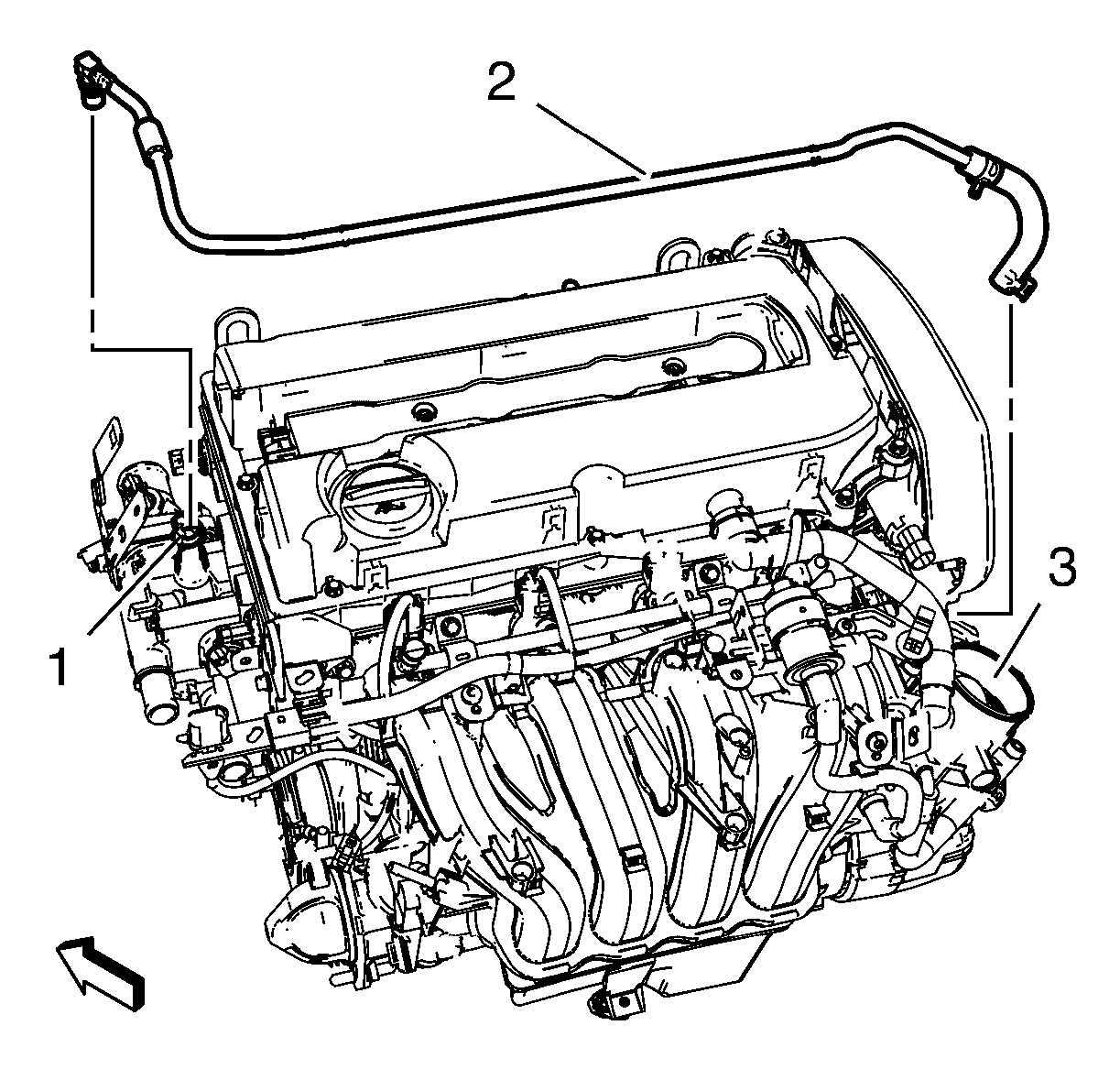

    Fig 1: Engine Coolant Thermostat Housing, Throttle Body & Heater Inlet Hose
    GM2027531Courtesy of GENERAL MOTORS COMPANY
  2. Connect the throttle body heater inlet hose to the throttle body (3) and install the clamp.
  3. Connect the throttle body heater inlet hose (2) to the engine coolant thermostat housing (1).
  4. Top off the coolant by filling to the bottom line (black arrow) on the coolant surge tank (1) if necessary.
    Fig 2: Radiator Coolant Surge Tank
    GM2189523Courtesy of GENERAL MOTORS COMPANY
  5. Close the hood.
