Radiator and Charge Air Cooler Bracket Repair

  1. Remove the radiator. Refer to Radiator Replacement (1.4L LUV with Manual Transmission and 2.0L Diesel LUZ) , Radiator Replacement (1.8L LUW and LWE)  and Radiator Replacement (1.4L LUV with Automatic Transmission) .
  2. Drill hole in the charge air cooler bracket and radiator bracket (2) using a 7 mm (0.28 in) drill.

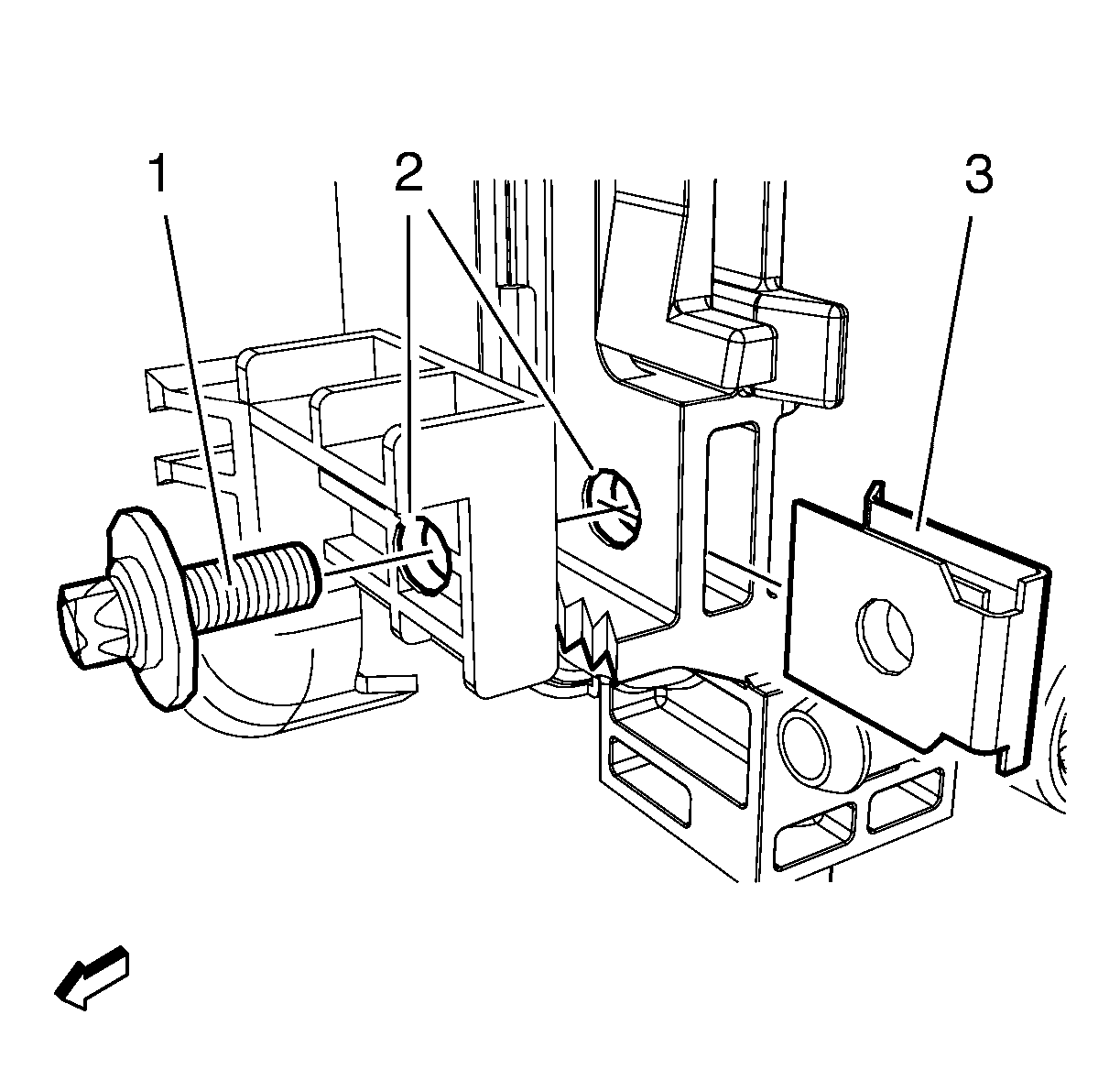

    Fig 1: Radiator Mounting Components
    GM2028329Courtesy of GENERAL MOTORS COMPANY
  3. Install the j-clip (3) to the radiator.
  4. Install the radiator. Refer to Radiator Replacement (1.4L LUV with Manual Transmission and 2.0L Diesel LUZ) , Radiator Replacement (1.8L LUW and LWE)  and Radiator Replacement (1.4L LUV with Automatic Transmission) .
  5. Install the repair bolt (1) with locking compound and tighten to 5 N.m (45 lb in).
    CAUTION: Refer to Fastener Caution .
