Removal Procedure

  1. Drain the cooling system. Refer to Cooling System Draining and Filling (GE-47716 Fill)  and Cooling System Draining and Filling (Static Fill) .
  2. Loosen the hose clamp (4).

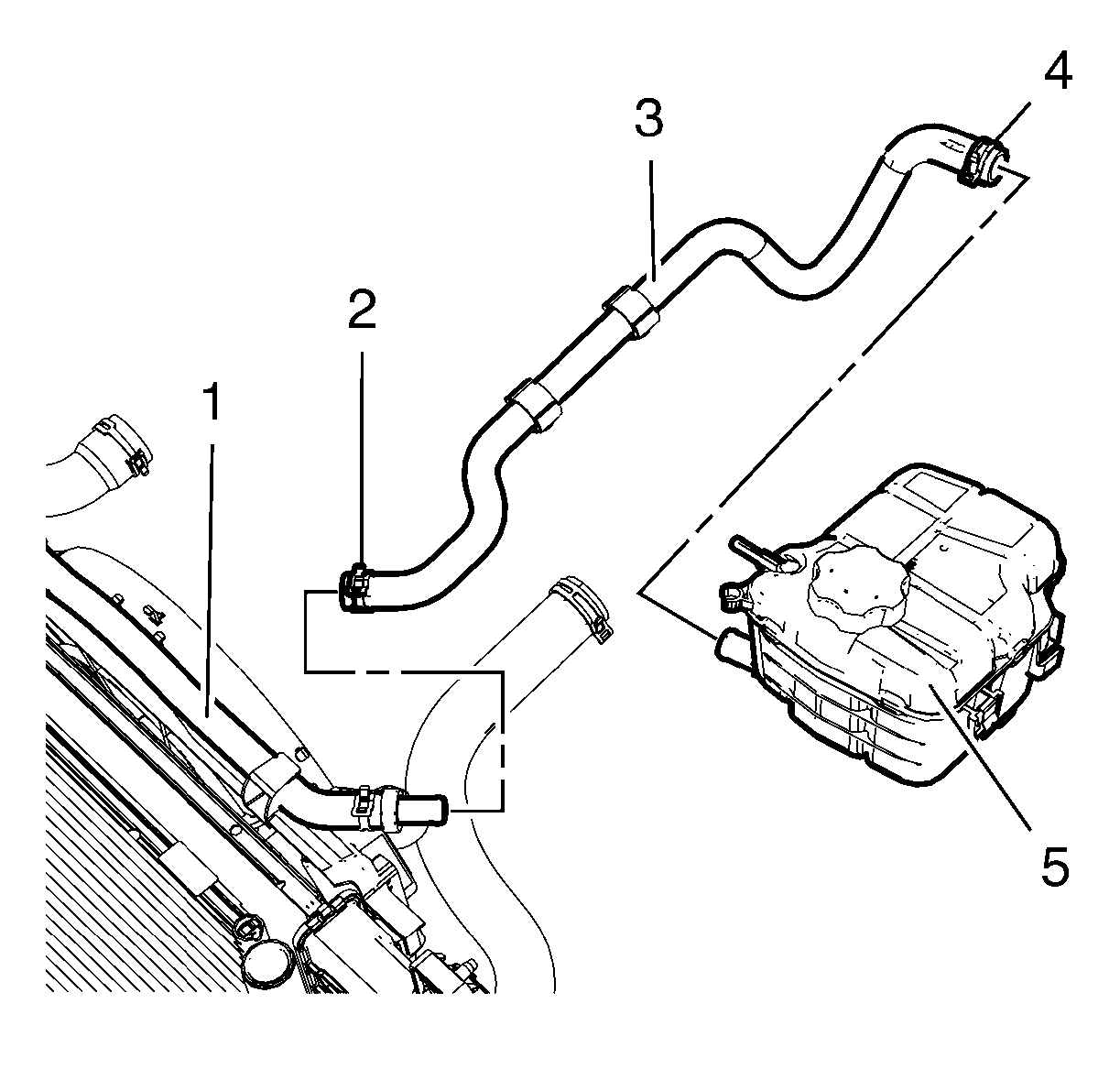

    Fig 1: Radiator Surge Tank, Hoses And Clamps
    GM2189610Courtesy of GENERAL MOTORS COMPANY
  3. Remove the radiator surge tank hose (3) from the surge tank (5).
  4. Loosen the clamp (2).
  5. Remove the radiator surge tank hose (3) from the radiator outlet hose (1).
