Radiator Lower Bracket Replacement

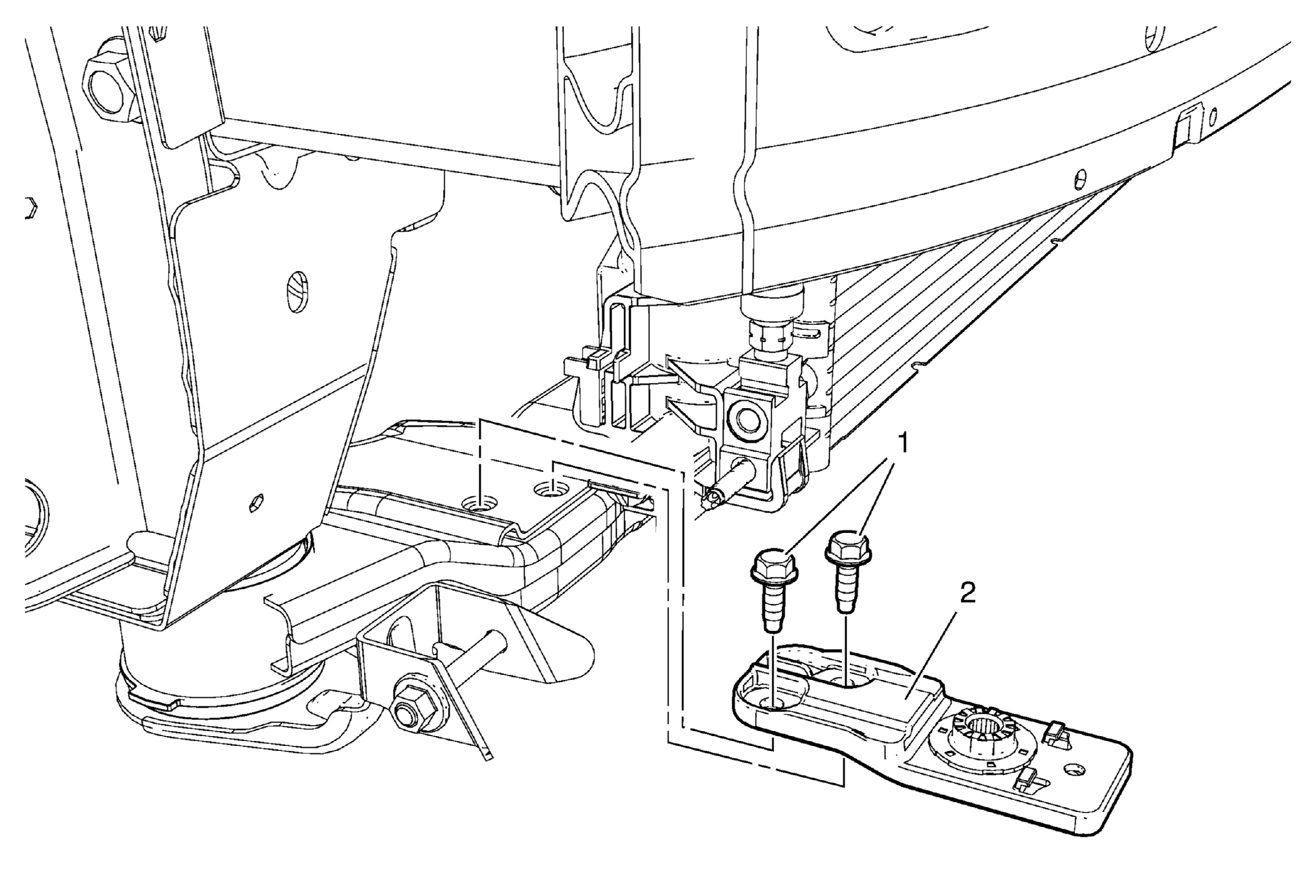

Fig 1: Radiator Lower Bracket
GM2191643Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement .
1 Radiator Lower Bracket Bolt (Qty: 2)
CAUTION: Refer to Fastener Caution .

Procedure
Secure the radiator.
Tighten
22 N.m (16 lb ft)
2 Radiator Lower Bracket
