Installation Procedure

  1. Clean the engine oil cooler to engine oil cooler housing sealing surfaces.
  2. Install a NEW engine oil cooler gasket.
  3. Install the engine oil cooler (1) to the engine oil cooler housing.

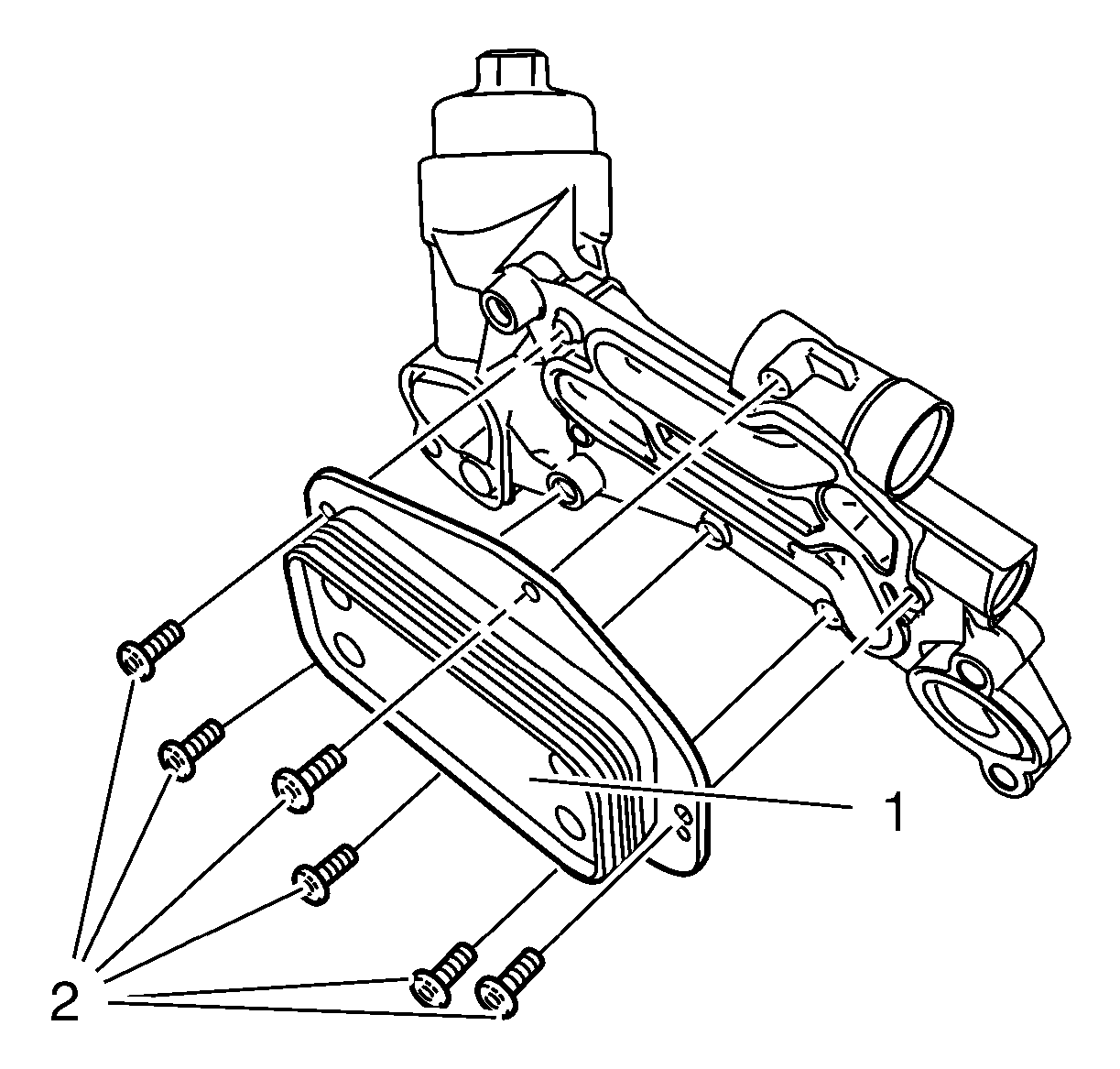

    Fig 1: Identifying Engine Oil Cooler And Bolts
    GM2026831Courtesy of GENERAL MOTORS COMPANY
  4. Install the 6 engine oil cooler bolts (2) and tighten to 8 N.m (71 lb in).
    CAUTION: Refer to Fastener Caution .
  5. Install the 2 NEW engine oil cooler inlet pipe gaskets.

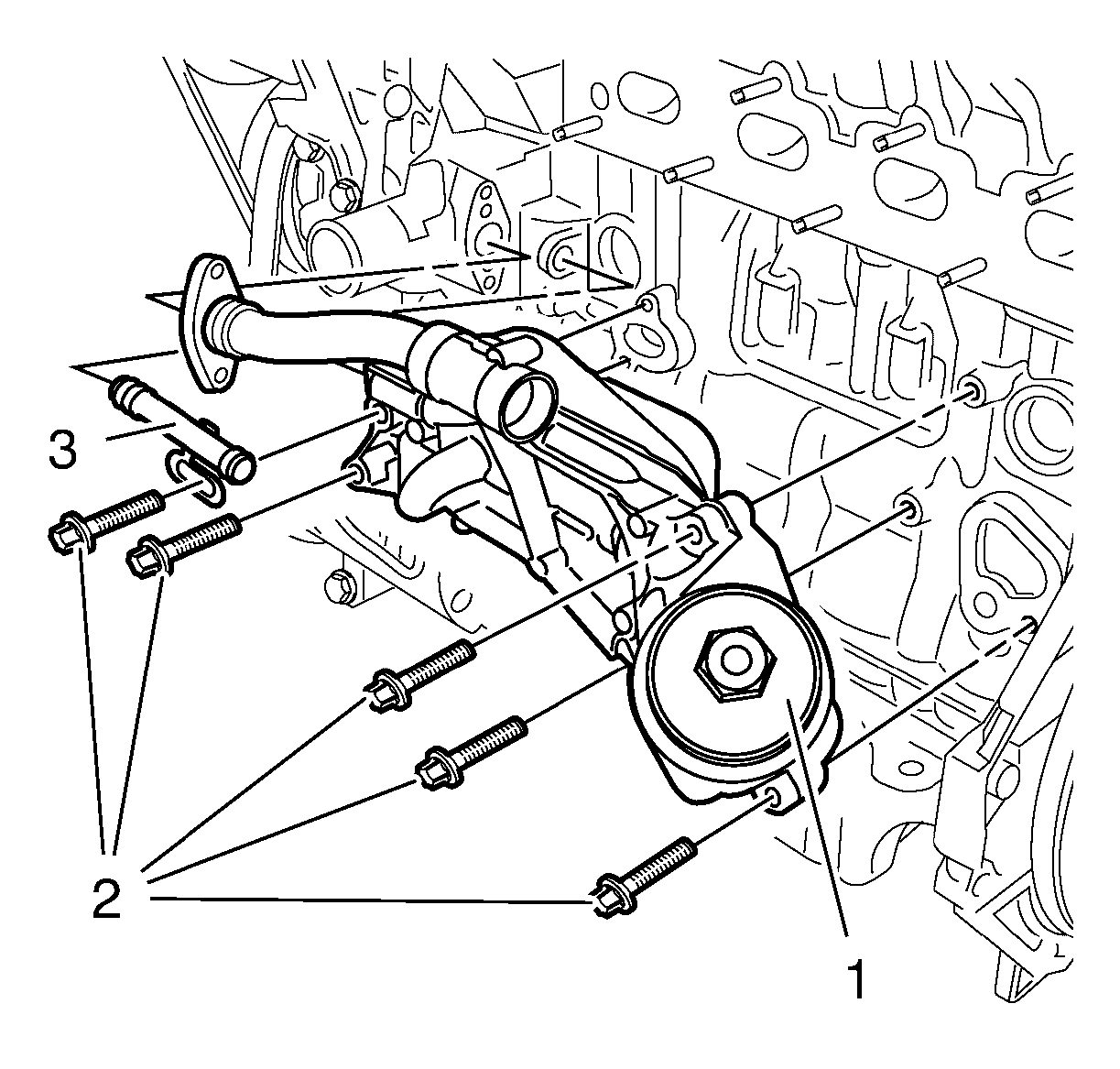

    Fig 2: Identifying Engine Oil Cooler Housing, Bolts And Engine Oil Cooler Inlet Pipe
    GM2026867Courtesy of GENERAL MOTORS COMPANY
  6. Install the engine oil cooler inlet pipe (3).
  7. Install the 2 NEW engine oil cooler housing gaskets.
  8. Install the engine oil cooler housing (1).
  9. Install the 5 engine oil cooler housing bolts (2) and tighten to 25 N.m (19 lb ft).
  10. Clean the engine oil cooler outlet pipe sealing surfaces.
    Fig 3: Identifying Engine Oil Cooler Outlet Pipe And Bolts
    GM2026830Courtesy of GENERAL MOTORS COMPANY
  11. Install the 2 NEW engine oil cooler outlet pipe gaskets.
  12. Install the engine oil cooler outlet pipe (2) to the engine oil cooler housing and the engine coolant thermostat housing.
  13. Install the 2 engine oil cooler outlet pipe bolts (1) and tighten to 8 N.m (71 lb in).
  14. Fill the cooling system. Refer to Cooling System Draining and Filling (GE-47716 Fill)  and Cooling System Draining and Filling (Static Fill) .
  15. Install the exhaust manifold. Refer to Exhaust Manifold Replacement (1.8L LUW and LWE) .
