Engine Coolant Level Indicator Module Replacement

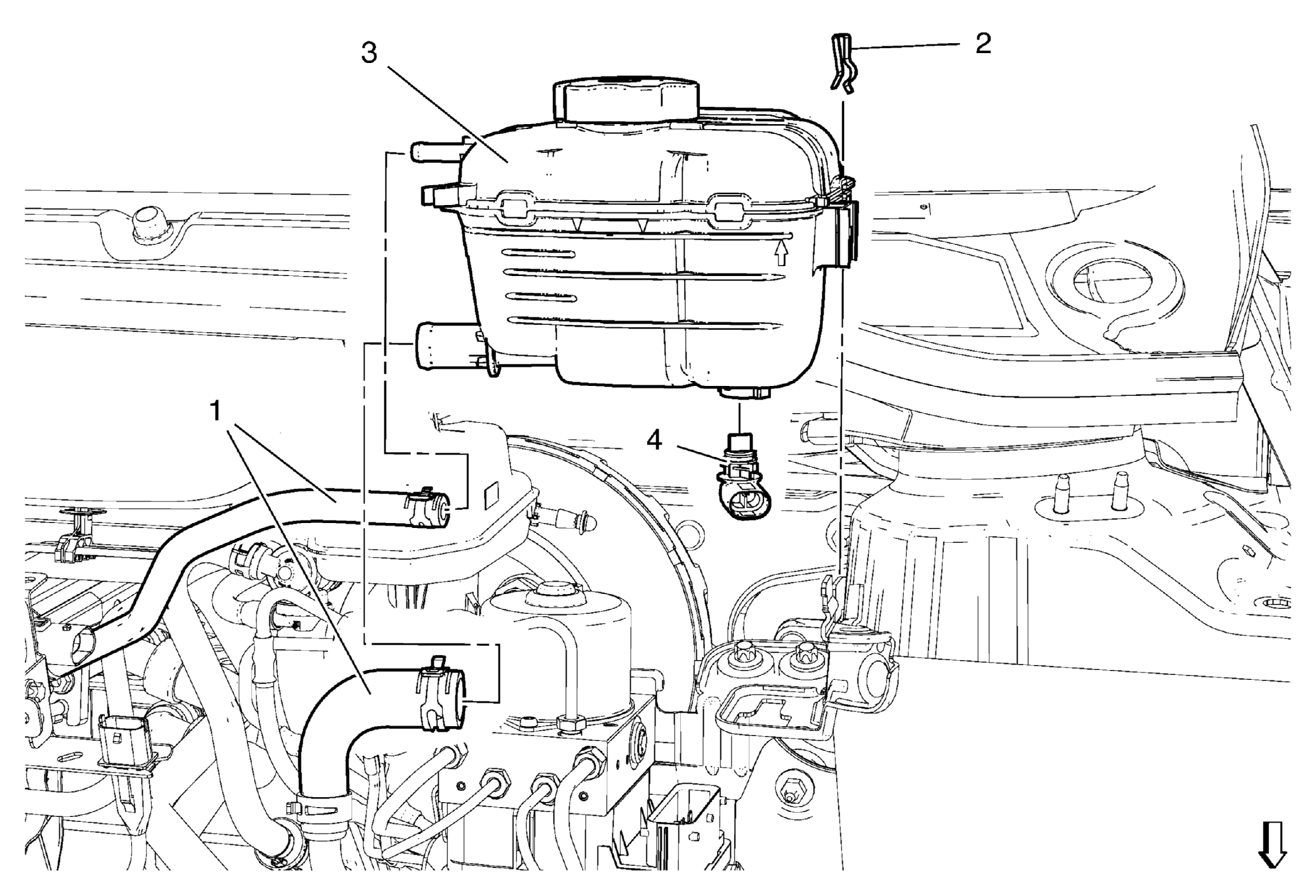

Fig 1: Identifying Engine Coolant Level Indicator Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Drain the cooling system. Refer to Cooling System Draining and Filling (GE-47716 Fill) and Cooling System Draining and Filling (Static Fill) . Remove the fuse block. Refer to Fuse Block Replacement .
1	Coolant Hose (Qty: 2)
2	Radiator Surge Tank Clip
3	Radiator Surge Tank
4	Engine Coolant Level Indicator Module Procedure Disconnect the electrical connector.
