Installation Procedure

  1. Install the engine coolant fan shroud (1).

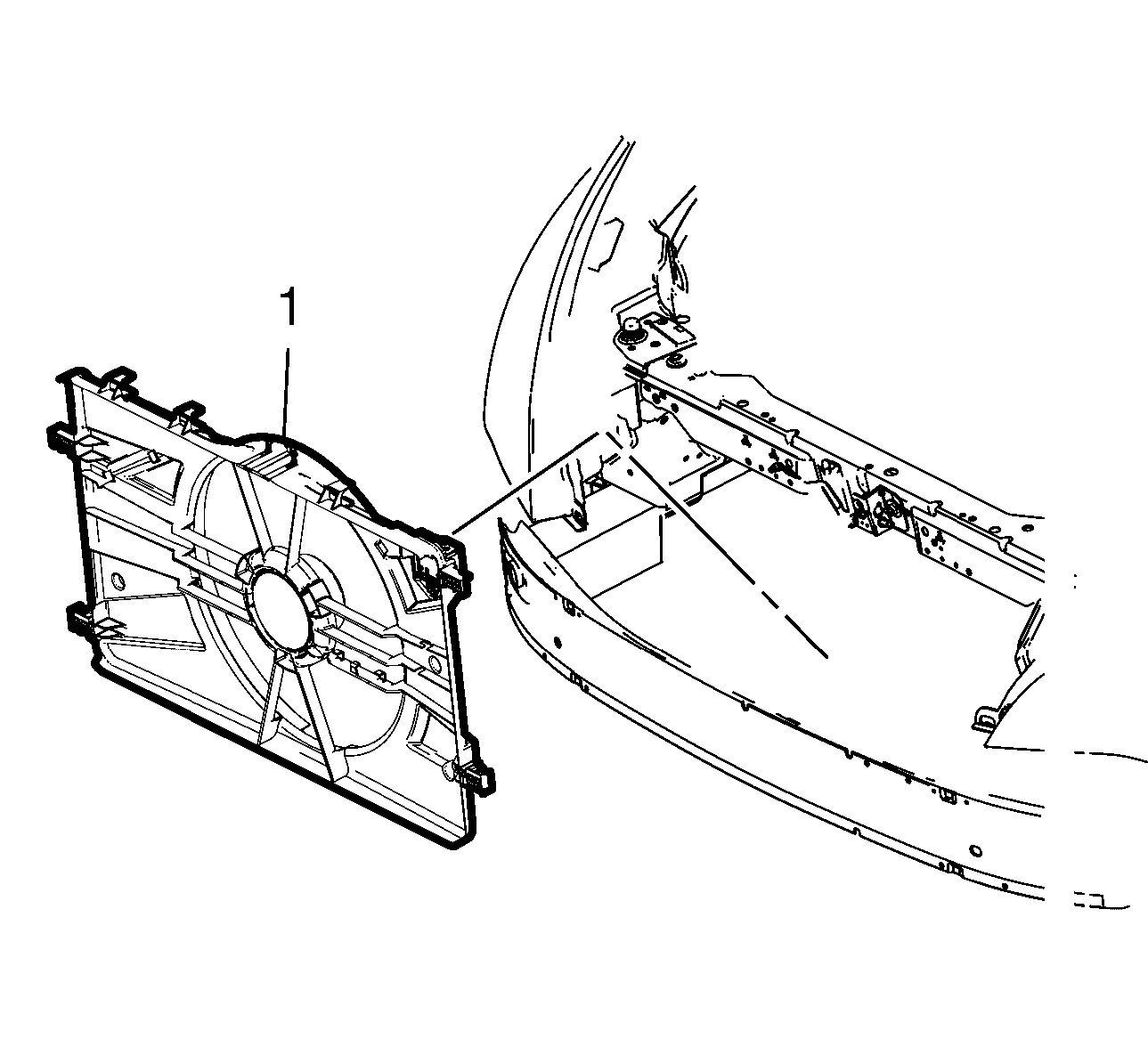

    Fig 1: Engine Coolant Fan Shroud
    GM2699361Courtesy of GENERAL MOTORS COMPANY
  2. Install the wiring harness (2) and clip in all retainer clips.

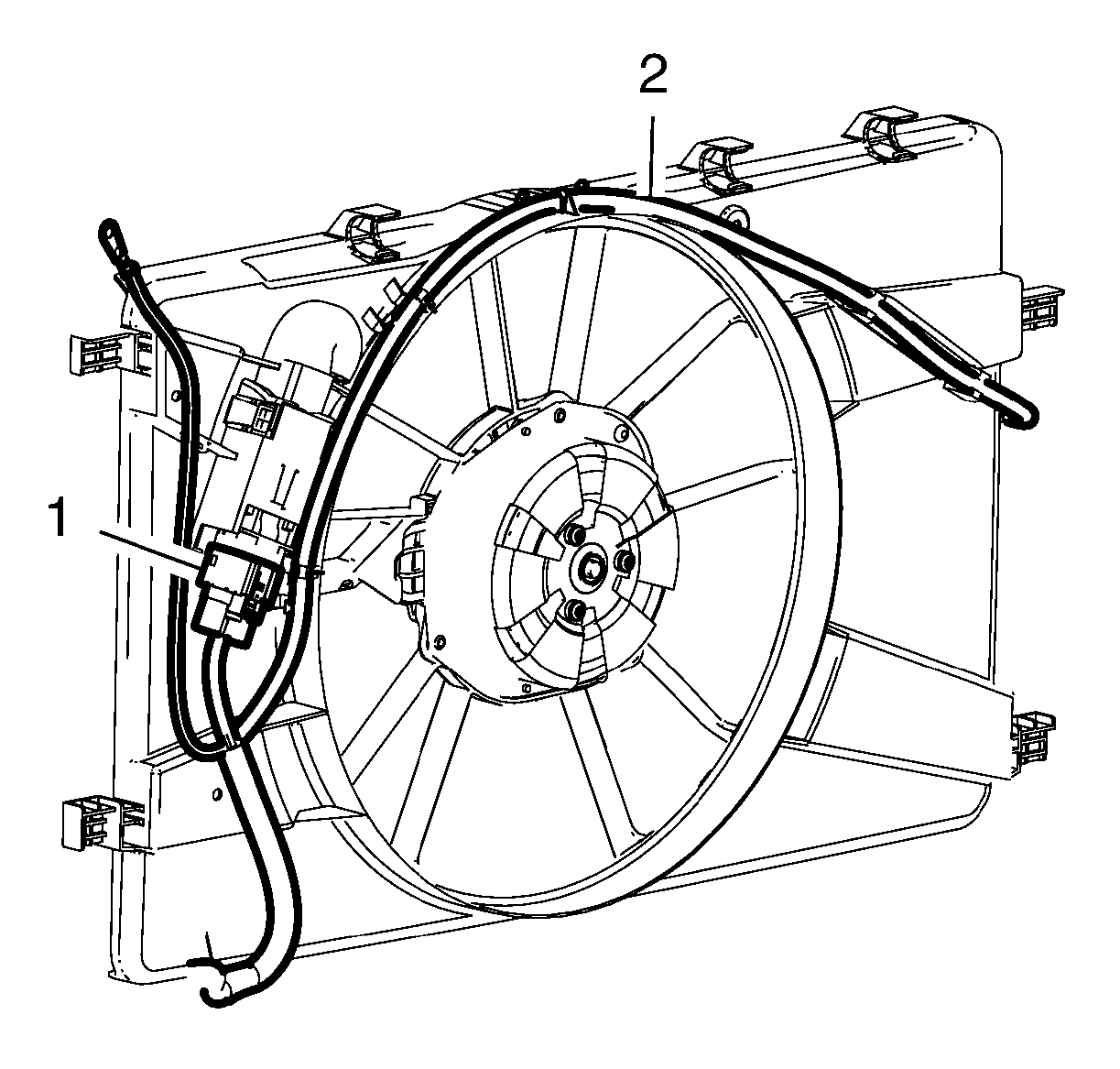

    Fig 2: Engine Coolant Fan Control Module Wiring Harness & Plug
    GM2887248Courtesy of GENERAL MOTORS COMPANY
  3. Connect the engine coolant fan control module wiring harness plug (1).
  4. Install the radiator. Refer to Radiator Replacement (1.4L LUV with Manual Transmission and 2.0L Diesel LUZ) .
