Disassemble Procedure

  1. Remove the engine coolant fan control module (1) by unclipping the retainer clip (arrows).

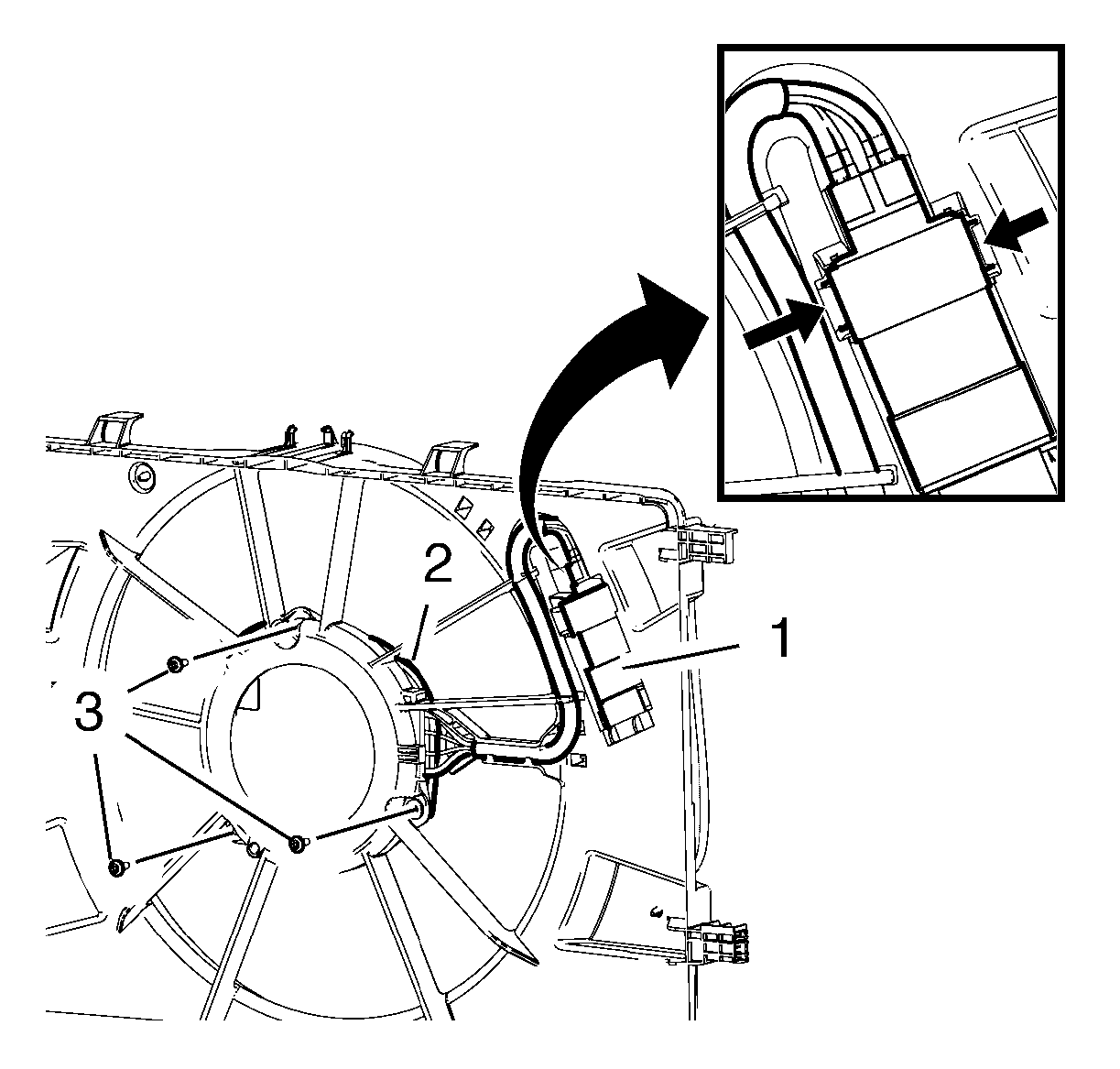

    Fig 1: Engine Coolant Fan Control Module, Fan Motor & Bolts
    GM2887230Courtesy of GENERAL MOTORS COMPANY
  2. Unclip the engine coolant fan control module wiring harness from the fan shroud.
  3. Remove the 3 engine coolant fan motor bolts (3).
  4. Remove the engine coolant fan motor (2).
