Engine Coolant Fan Resistor Mount Repair

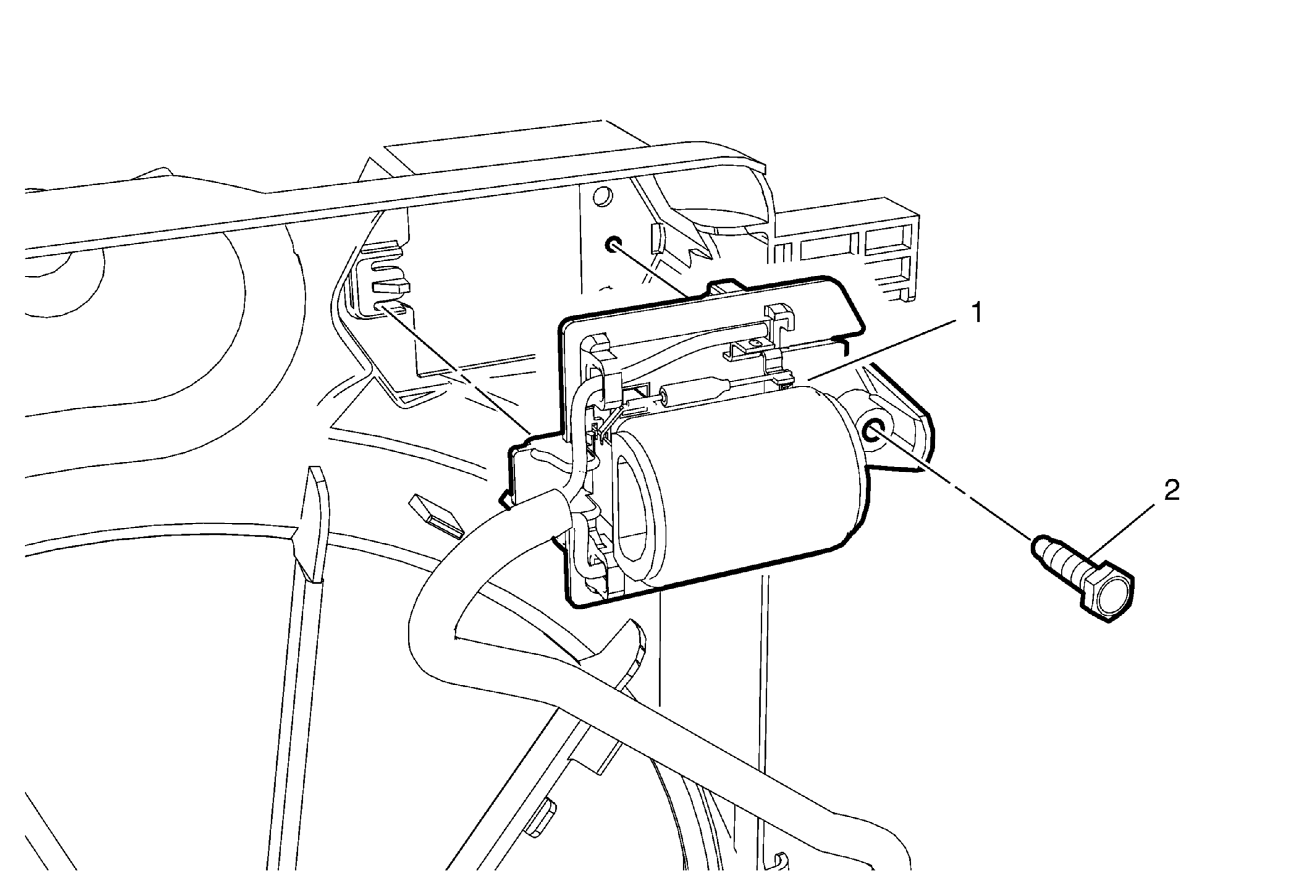

Fig 1: Engine Coolant Fan Resistor Mount (Single Coolant Fan)
GM2631396Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedures
Remove the engine cooling fan shroud. Refer to Engine Coolant Fan Replacement .
1 Engine Coolant Fan Resistor Mount
2 Engine Coolant Fan Resistor Mount Bolt
CAUTION: Refer to Fastener Caution .

Procedure
In case of a broken engine coolant fan resistor mount use this repair procedure.
Tighten
5 N.m (44 lb in)
