Installation Procedure

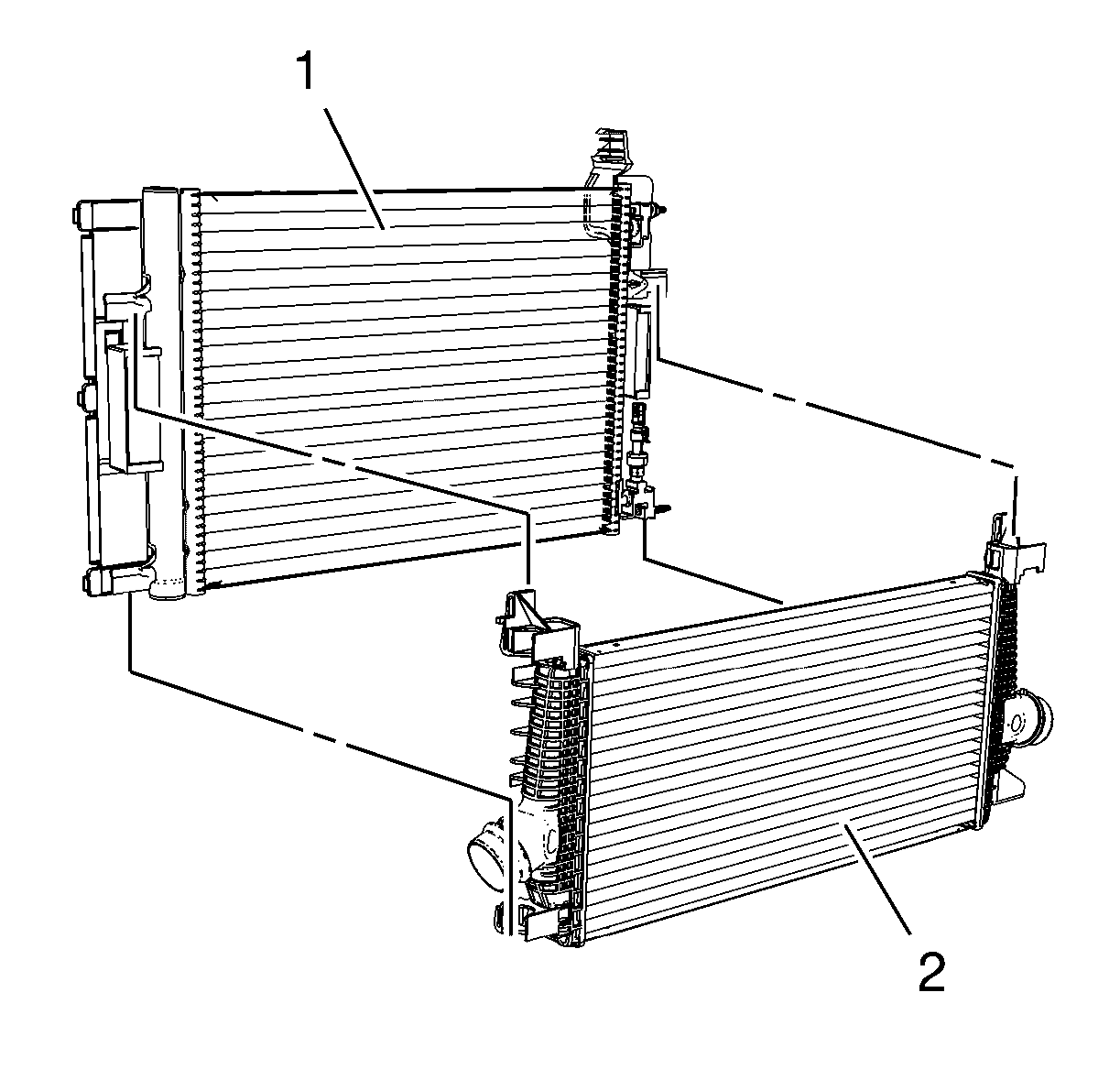

Clip the charge air cooler (2) to the radiator (1).

Fig 1: Identifying Charge Air Cooler And Radiator
Courtesy of GENERAL MOTORS COMPANY

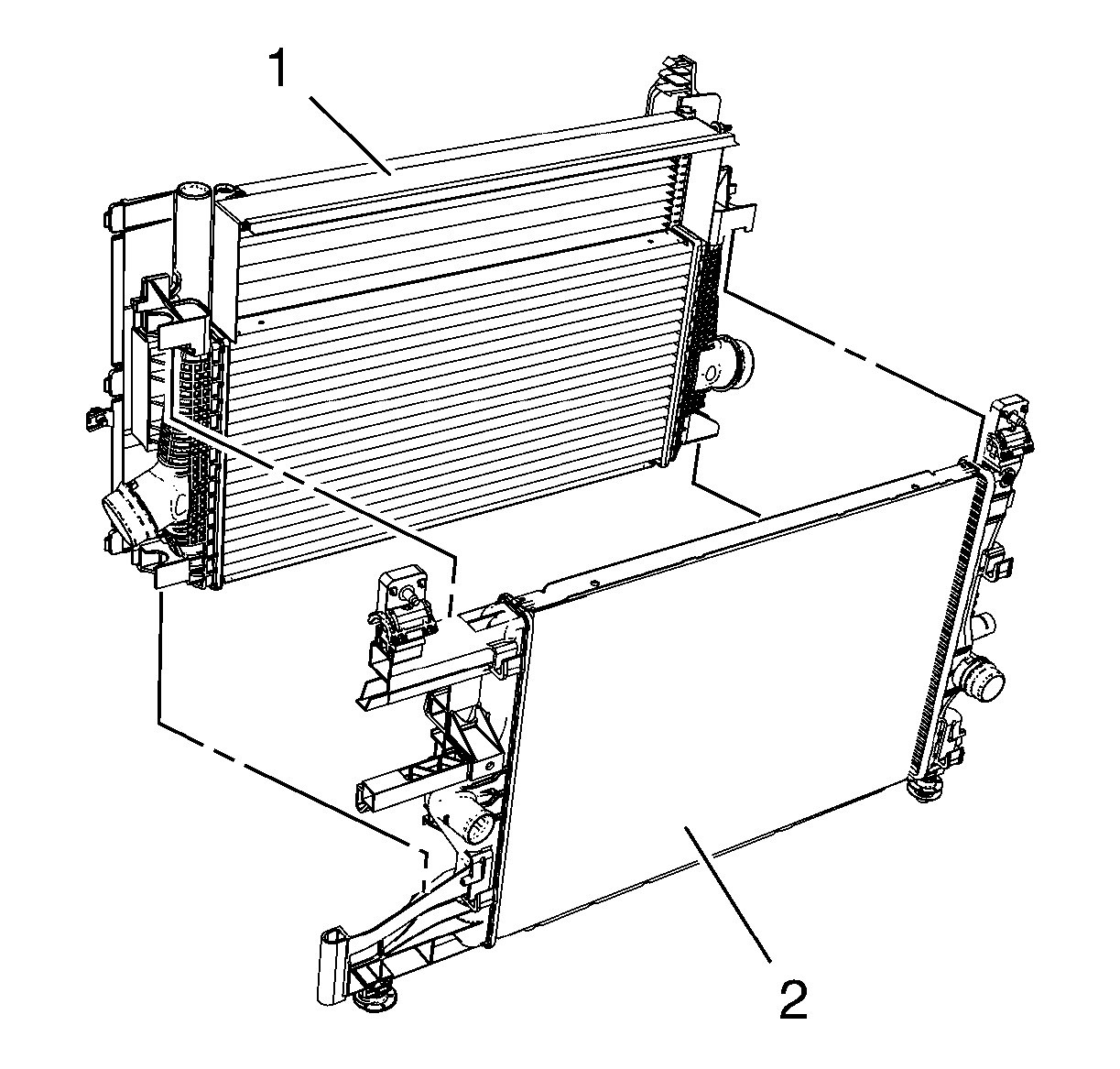

Clip the air conditioning condenser (2) to the charge air cooler (1).

Fig 2: Identifying Air Conditioning Condenser And Charge Air Cooler
Courtesy of GENERAL MOTORS COMPANY

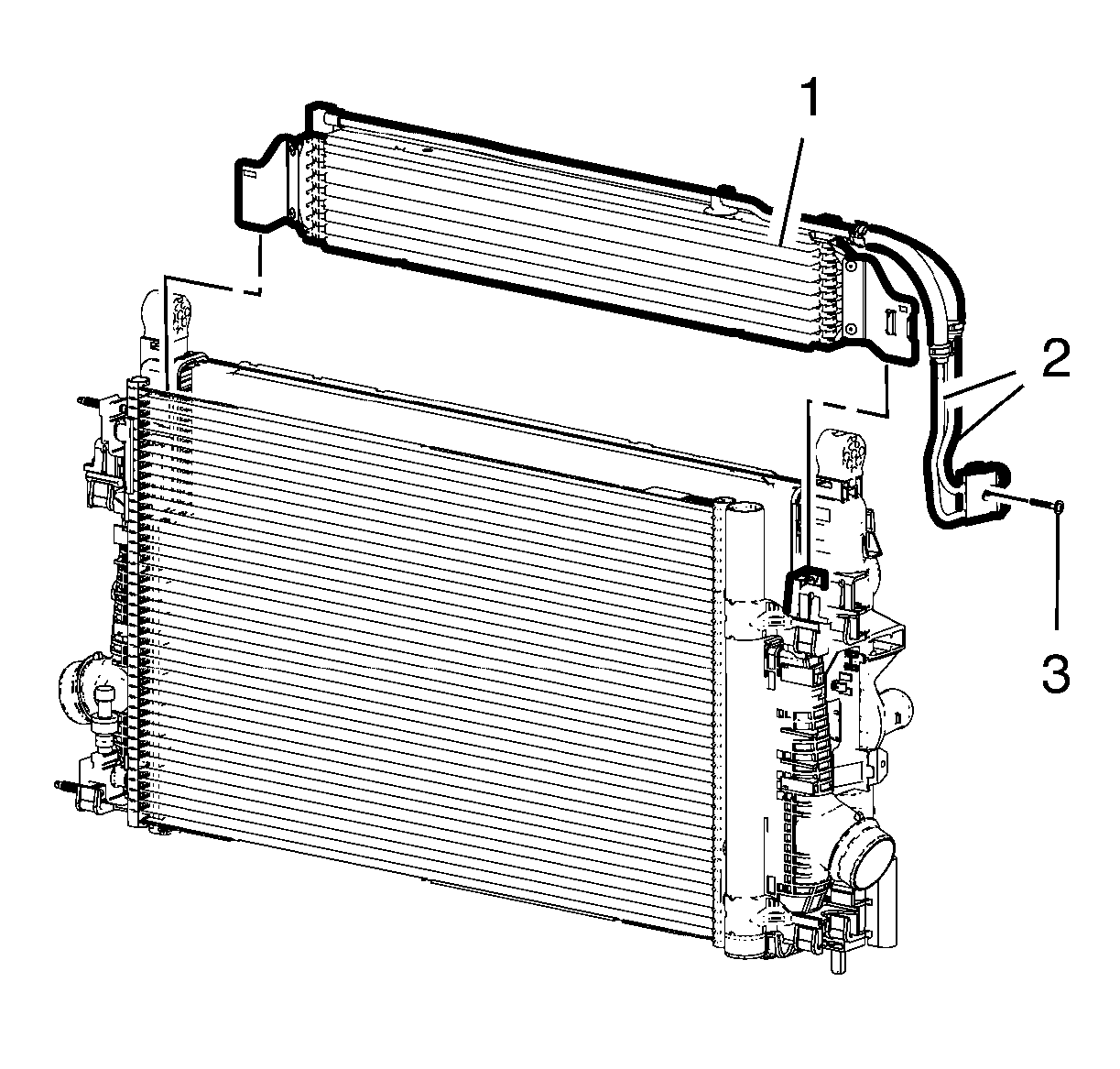

Clip the transmission fluid cooler (1) to the radiator.

Fig 3: Transmission Fluid Cooler
Courtesy of GENERAL MOTORS COMPANY
Install the charge air cooler inlet air hose to the charge air cooler. Refer to Charge Air Cooler Inlet Air Hose Replacement .
Install the charge air cooler outlet air hose to the charge air cooler. Refer to Charge Air Cooler Outlet Air Hose Replacement (Manual Transmission)Charge Air Cooler Outlet Air Hose Replacement (Automatic Transmission) .
Install the left and right side radiator air baffles.
Install the radiator upper air seal.
Install the front bumper fascia. Refer to Front Bumper Fascia Replacement .
Connect battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
