Water Pump

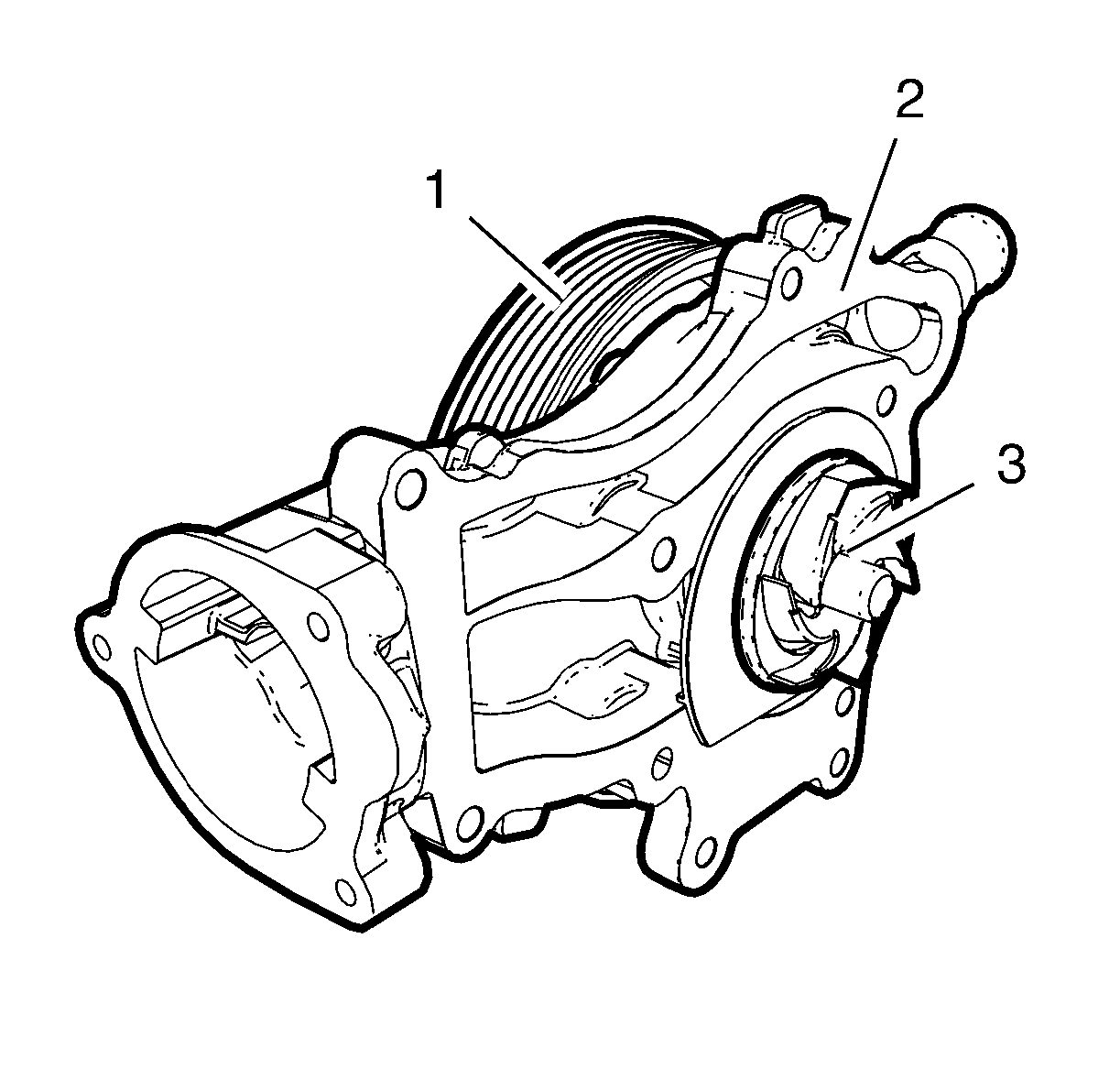

Fig 1: Water Pump (1.4L LUJ)
GM2373024Courtesy of GENERAL MOTORS COMPANY

Water pump is a component of the engine cooling system and circulated the coolant from each cooling circuit components. This water pump consists of sealing, bearing, pulley (1) and housing (2) and is driven by the drive belt to loose noise to water pump pulley. Water pump apply drain hole cup to cap to prevent coolant leakage for customers. Water pump is not open impeller type but closed plastic impeller type (3) to increase the cooling efficiency.
