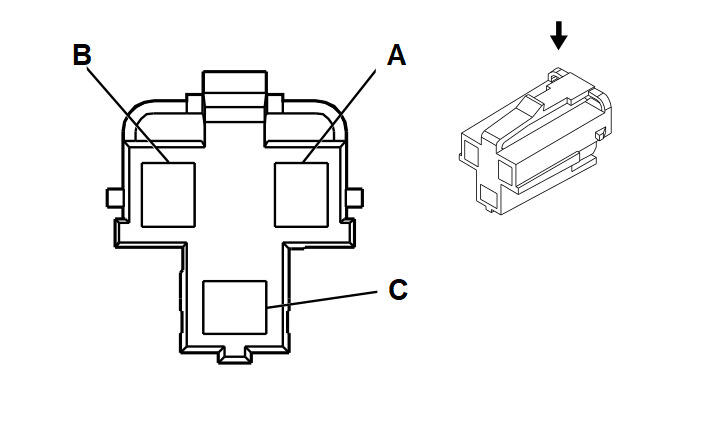

X80 Accessory Power Receptacle
|
|
Connector Part Information
- Harness Type: Floor Console
- OEM Connector: 12176836
- Service Connector: Service by Harness Assembly- See Part Catalog
- Description: 3-Way F 280 Metri-Pack Series (GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-4A (PU) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| A |
1 |
VT |
801 |
Retained Accessory Power Fuse Control |
I |
- |
| B |
- |
- |
- |
Not Occupied |
- |
- |
| C |
1 |
BK |
1650 |
Ground |
I |
- |
