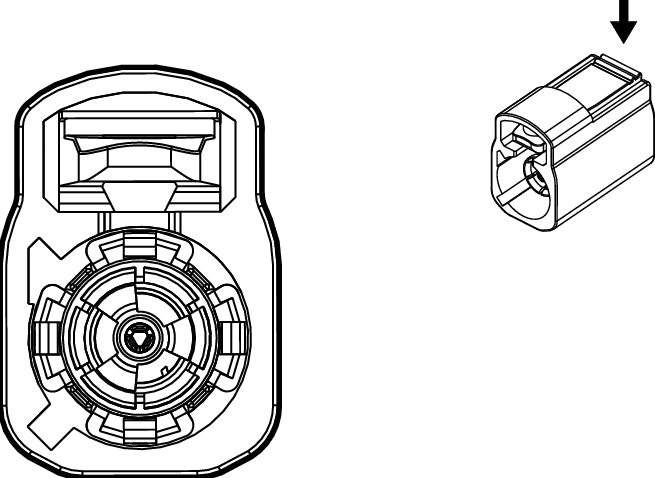

T15 Navigation Antenna Signal Splitter X1 (UE1 with UHQ)
|
|
Connector Part Information
- Harness Type: Body COAX
- OEM Connector: 59Z006-000-D
- Service Connector: Service by Cable - See Part Catalog
- Description: 1-Way F COAX (GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Service by Cable - See Part Catalog |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| - |
- |
COAX |
- |
Coaxial Antenna Cell/GPS combined Signal |
I |
- |
