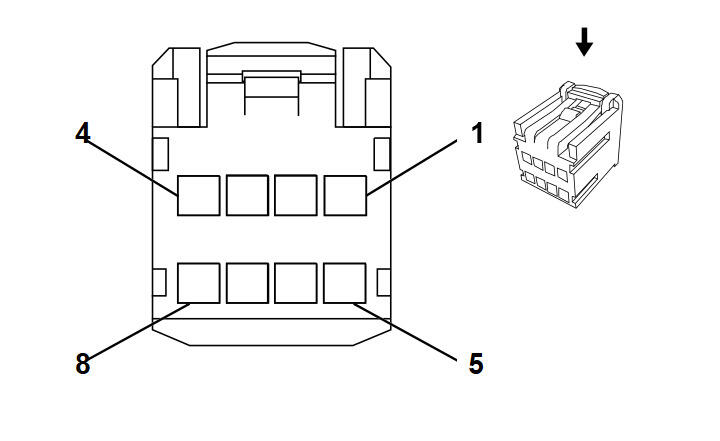

S82 Windshield Wiper/Washer Switch
|
|
Connector Part Information
- Harness Type: Instrument Panel
- OEM Connector: 13609516
- Service Connector: 13576541
- Description: 8-Way F 1.2 HCM Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-64B (LT BU) |
Not Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
GY |
1715 |
Windshield Wiper Switch High Signal |
I |
- |
| 2 |
0.5 |
BK/GY |
6009 |
Windshield Wiper Switch Low Reference |
I |
- |
| 3 |
0.5 |
YE/D-BU |
1714 |
Windshield Wiper Switch Low Signal |
I |
- |
| 4 |
- |
- |
- |
Not Occupied |
- |
- |
| 5 |
0.5 |
WH/BK |
94 |
Windshield Washer Switch Signal |
I |
- |
| 6 - 8 |
- |
- |
- |
Not Occupied |
- |
- |
