S75 Traction Control Switch (FX3)

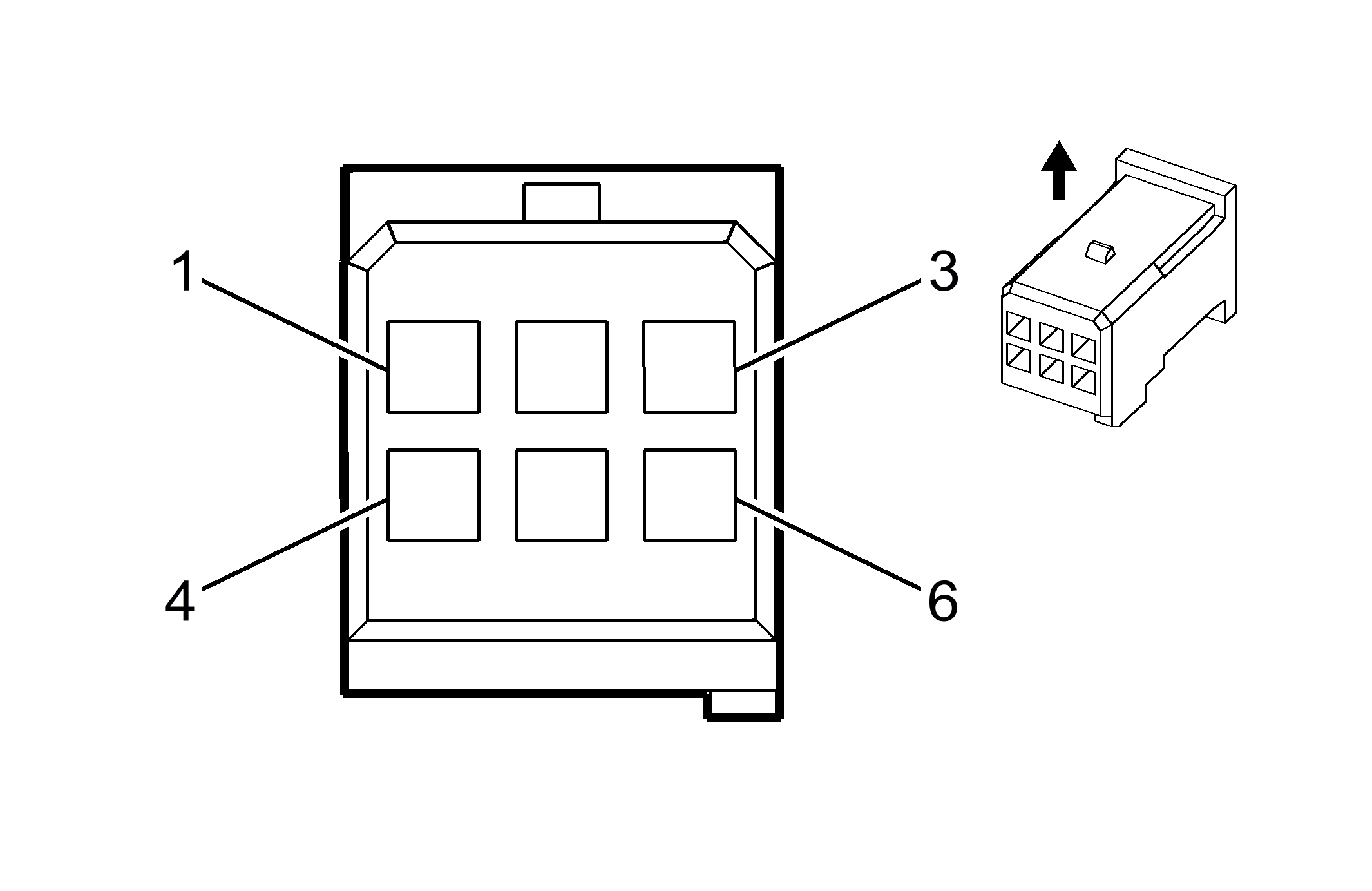

Connector Part Information
|
Terminal Part Information
| Terminal Type ID | Terminated Lead | Diagnostic Test Probe | Terminal Removal Tool | Service Terminal | Tray | Core Crimp | Insulation Crimp |
|---|---|---|---|---|---|---|---|
| I | Not Required | J-35616-64B (LT BU) | No Tool Required | Not Required | Not Required | Not Required | Not Required |
| Pin | Size | Color | Circuit | Function | Terminal Type ID | Option |
|---|---|---|---|---|---|---|
| 1 | - | - | - | Not Occupied | - | - |
| 2 | 0.5 | D-BU/VT | 1788 | Traction Control Switch Signal (1) | I | - |
| 3 | 0.5 | YE | 6817 | LED Backlight Dimming Control | I | - |
| 4 | 0.5 0.5 |
BK BK |
1750 1650 |
Ground | I | MFH OR MFV OR MYJ MH7 OR MH9 |
| 5 - 6 | - | - | - | Not Occupied | - | - |
